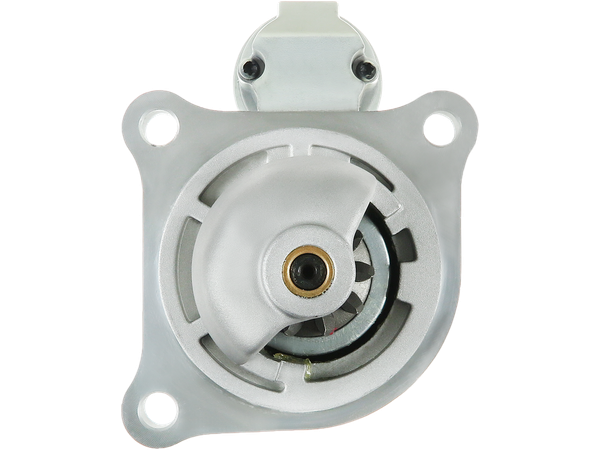

S4075S
Startmotorer
STANDARD LINE
1025 kr
Köp nu
| EAN | 5902129144274 |
| Tillverkare | AS-PL |
| Ersätter | LUCAS |
| OE-nummer |
3EFFE: PRSS975, STRS975 AS-PL: S4075S, UD18926S AUTO MAGNETO: AM-1071 CARGO: 112277, F032112277 CASCO: CST25112GS DELCO: DRS0529, DS1639 ELECTROLOG: STR9786 ELSTOCK: 25-2143 KRAUF: STL2277 KUHNER: 254300, 254300P LOGISTIK: 331791 LUCAS: 42790141, 47920059, 47920141, 54292967, 6237901141, LRS01339, LRS1339, NSB418 MAGNETI MARELLI: 63226920 PERKINS: 2873B058, 2873B059, 47920034 PSH: 700.506.103, 700.506.103.200, 700.506.103.360, S134.997, S145.738 REAL: 20405211OE SANDO: 6025112.1 SIDAT: S12VA0387, S12VA0387A2 VOLVO: 859722 WILSON: 91-17-8907 WOODAUTO: PRE20550101 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 30.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 263.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 2 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| PERKINS | 1.8 | Engine | 4.108VA | 0 | – | |
| VOLVO PENTA | Engine | MD22 | 0 | 1990– |
