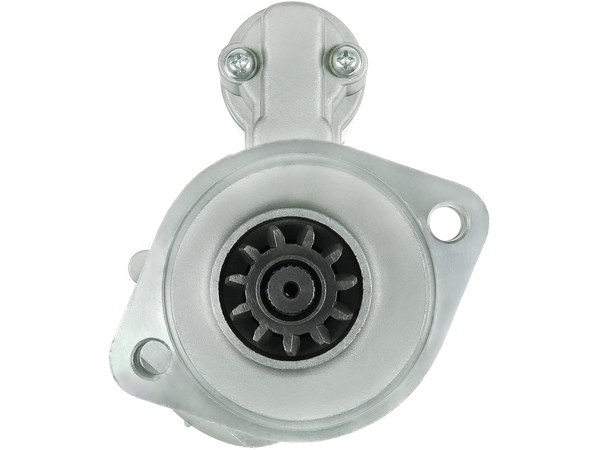

S5003
Startmotorer
STANDARD LINE
932 kr
Köp nu
| EAN | 5901259422764 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: STRS138 AINDE: CGB-23004 ANDEL: ANM15504X AS-PL: S5003 AUTO MAGNETO: AM-2271 AUTOELECTRO: AEY1842 CARGO: 111913, F032111913 CASCO: CST35600AS CEVAM: 8404 CLARK: 3785420, 3785426 DELCO: DRS3284 EAI: 33755 ELECTROLOG: STR5031 ELSTOCK: 45-1095 ERA: 220195 FRIESEN: 8052515 HC PARTS: JS777 HELLA: 8EA732662-001 HERTH+BUSS: J5215015 HYUNDAI / KIA: 34466-15102 KUHNER: 20777, 20777V, 254367 LAUBER: 28.0777, 28.0777M LUCAS: LRS01842, LRS1842 MITSUBISHI: 34466-03101, 34466-10103, 34466-15101, 3446603101, 3446610103, 3446615100, 3446615101, 3446615102, M002T27672, M002T65271, M002T65272, M002T65275, M003T54071, M003T54072, M005T27671, M2T27672, M2T65271, M2T65272, M2T65275, M3T54071, M3T54072, M5T27671 NISSAN: 34466-20102 POWER TRUCK: PTC-4073 POWERMAX: 8213243 PRESTOLITE: 20513017 REAL: 20437006BN SANDO: 6035600 SIDAT: S24MH0032A2 SIOM: MAV6100 WAI / TRANSPO: 18245N, 18245R WOODAUTO: STR71158 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.50 |
| B-storlek [ mm ] | 22.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 9. 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 250.00 |
| O.1 [ mm ] | 105.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
| Oil sealed | Yes |
Passar i 1 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MITSUBISHI | FD 20 | 0 | 1983– |
