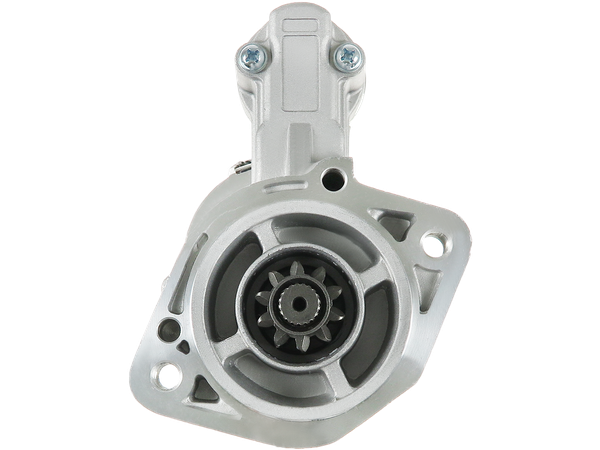

S5005
Startmotorer
STANDARD LINE
849 kr
Köp nu
| EAN | 5901259422788 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: PRSL109, STRL109 A.Z. MEISTERTEILE: AZMT-53-010-1419 ACAUTO: AC-JBS0344 AINDE: CGB-52005 ALANKO: 10440280 AS-PL: S5005 ASHIKA: 003-C952 ATL AUTOTECHNIK: A14140 AUTOELECTRO: AES4139 BLUE PRINT: ADC41215 BORG & BECK: BST2308 BOSCH: 0986014140, 0986014141, 1986S01263 CARGO: 110809, F032110809 CASCO: CST35100GS CEVAM: 9513 CQ: 22.5344 DAF: 1516954R DELCO: DRS3343, DRS3343N DRI: 326004102 EAI: 11597, 11875 ELECTROLOG: STR5008 ELSTOCK: 25-0436 ERA: 220013, 220013A, 220013R EUROREPAR: 1638133380 EUROTEC: 11040090 FARCOM: 103234 FRIESEN: 8052506 GHIBAUDI: SG0268 GPARTS: GST51685-A, SST51685-A HC PARTS: JS344 HELLA: 8EA011611-131 HERTH+BUSS: J5215006 HYUNDAI / KIA: 36100-42011 JAPANPARTS: MTC952 JAPKO: 3C952 KRAUF: STM2344 KUHNER: 20344, 20344V LOGISTIK: 335194 LUCAS: LRS00439, LRS0439 MAGNETI MARELLI: 063522613010, 63522613, 944241077010, 944280525060, MRS52506, MSR1077 MEAT & DORIA: 5035246 MITSUBISHI: M002T51685, M002T56171, M002T5618, M002T56181, M002T56182, M002T56185, M002T57271, M002T57273, M002T57771, M002T60172, M003T61071, M2T51685, M2T56171, M2T5618, M2T56181, M2T56182, M2T56185, M2T57271, M2T57273, M2T57771, M2T60172, M3T61071, MD050200, MD050205, MD061154, MD069166, MD070934, MD072654, MD084414, MD156986, MD162975, MD164975, MD191433, MD191433R, MD191435 POWERMAX: 88212468 PRESTOLITE: 20513019 PSH: 150.504.102.130, 150.504.102.138, 150.504.102.139, 150.504.102.360, 150.504.102.780, S130.228, S144.072 REAL: 20437001BN, 20437001OE RNL: RNL111CS, RNL952CS, RNLM2T61171 SANDO: 6035100.0, 6035100.1 SIDAT: S12MH0130, S12MH0130A2 SIOM: MAV6010, MAV6010A STARDAX: STX200097, STX200097R, STX200117, STX200165, STX200165R UNIPOINT: STR2901 VALEO: 438123, 455905, TM000A06101 WAI / TRANSPO: 16853N, 16853R WOODAUTO: STR71050, WOOSTR71050 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 77.00 |
| B-storlek [ mm ] | 3.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10. 12. 13 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 242.00 |
| O.1 [ mm ] | 105.00 |
| C.1 [ mm ] | M10x1.25 |
| C.2 [ mm ] | M10x1.25 |
Passar i 86 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HYUNDAI | 2.4 | H100 Bus (P) | G4CS | 114 | Petrol | 1997–2000 |
| HYUNDAI | 2.4 | H100 Van | G4CS | 111 | Petrol | 1997–2004 |
| HYUNDAI | 2.5 D | H-1 / STAREX Bus (A1) | D4BH | 78 | Diesel | 1997–2004 |
| HYUNDAI | 2.5 D | H-1 / STAREX Bus (A1) | D4BF | 78 | Diesel | 1997–2004 |
| HYUNDAI | 2.5 D | H-1 Platform/Chassis | D4BH | 99 | Diesel | 2000–2006 |
| HYUNDAI | 2.5 D | H100 Bus (P) | D4BA | 78 | Diesel | 1994–2000 |
| HYUNDAI | 2.5 D | H100 Bus (P) | D4BX | 75 | Diesel | 1993–1994 |
| HYUNDAI | 2.5 D | H100 Platform/Chassis | D4BF | 80 | Diesel | 1996–1997 |
| HYUNDAI | 2.5 D | H100 Platform/Chassis | D4BA | 78 | Diesel | 1993–1997 |
| HYUNDAI | 2.5 D | H100 Van | D4BX | 75 | Diesel | 1993–1994 |
| HYUNDAI | 2.5 D | H100 Van | D4BA | 78 | Diesel | 1994–2000 |
| HYUNDAI | 2.5 D | TERRACAN (HP) | D4BH | 101 | Diesel | 2001–2003 |
| HYUNDAI | 2.5 TCi | H-1 / STAREX Bus (A1) | D4BH | 99 | Diesel | 1997–2007 |
| HYUNDAI | 2.5 TCi | H-1 / STAREX Bus (A1) | D4BH | 101 | Diesel | 2004–2007 |
| HYUNDAI | 2.5 TCi D | GALLOPER II (JK-01) | D4BH | 105 | Diesel | 1998–2003 |
| HYUNDAI | 2.5 TD | GALLOPER I | 4D56-T | 85 | Diesel | 1991–1998 |
| HYUNDAI | 2.5 TD | GALLOPER II (JK-01) | D4BF | 88 | Diesel | 1998–2003 |
| HYUNDAI | 2.5 TD | GALLOPER II (JK-01) | D4BA | 88 | Diesel | 1998–2003 |
| HYUNDAI | 2.5 TD | H-1 / STAREX Bus (A1) | D4BF | 80 | Diesel | 1997–2004 |
| HYUNDAI | 2.5 TD | H-1 Van (A1) | D4BF | 80 | Diesel | 2000–2000 |
| HYUNDAI | 2.5 TD | H-1 Van (A1) | D4BH | 101 | Diesel | 2001–2007 |
| HYUNDAI | 2.5 TD | H-1 Van (A1) | D4BH | 99 | Diesel | 2000–2006 |
| HYUNDAI | 2.5 TD | H100 Bus (P) | D4BF | 80 | Diesel | 1993–2000 |
| HYUNDAI | 2.5 TD | PORTER Platform/Chassis | D4BA | 78 | Diesel | 1994–2004 |
| HYUNDAI | 2.5 TD | TERRACAN (HP) | D4BH | 101 | Diesel | 2001–2006 |
| HYUNDAI | 2.5 TD 4WD | H-1 / STAREX Bus (A1) | D4BF | 80 | Diesel | 1998–2004 |
| HYUNDAI | 2.5 TD 4WD | H-1 / STAREX Bus (A1) | D4BH | 101 | Diesel | 2001–2004 |
| HYUNDAI | 2.5 TD 4WD | H-1 / STAREX Bus (A1) | D4BH | 99 | Diesel | 2001–2004 |
| HYUNDAI | 2.5 TD intercooler | GALLOPER I | 4D56-T | 95 | Diesel | 1991–1998 |
| HYUNDAI | 2.5 TD intercooler | GALLOPER II (JK-01) | D4BH | 99 | Diesel | 1998–2003 |
| HYUNDAI | 2.5 TDiC | H100 Van | D4BF | 80 | Diesel | 1998–2003 |
| HYUNDAI | 2.6 D | H100 Van | D4BB | 78 | Diesel | 1999–2004 |
| MITSUBISHI | 1.8 D (C14V) | LANCER III Station Wagon (C1_V, C3_V) | 4D65 | 58 | Diesel | 1985–1986 |
| MITSUBISHI | 1.8 D (C14V) | LANCER III Station Wagon (C1_V, C3_V) | 4D65 | 60 | Diesel | 1986–1992 |
| MITSUBISHI | 1.8 D (C64A) | LANCER IV Hatchback (C6_A, C7_A) | 4D65 | 60 | Diesel | 1988–1992 |
| MITSUBISHI | 1.8 Diesel (C14AS) | LANCER III (C1_A, C6_A) | 4D65 | 58 | Diesel | 1984–1986 |
| MITSUBISHI | 1.8 Diesel (C14AS) | LANCER III (C1_A, C6_A) | 4D65 | 60 | Diesel | 1986–1988 |
| MITSUBISHI | 1.8 Diesel GLX (C54A) | COLT III (C5_A) | 4D65 | 60 | Diesel | 1988–1992 |
| MITSUBISHI | 1.8 GL Diesel (C14A) | COLT II (C1_A) | 4D65 | 58 | Diesel | 1984–1986 |
| MITSUBISHI | 1.8 GL Diesel (C14A) | COLT II (C1_A) | 4D65 | 60 | Diesel | 1986–1988 |
| MITSUBISHI | 1.8 GLX Diesel (C64A) | LANCER IV (C6_A, C7_A) | 4D65 | 60 | Diesel | 1988–1992 |
| MITSUBISHI | 1.8 TD (D09V) | SPACE WAGON VAN (D0_V/W) | 4D65T | 75 | Diesel | 1983–1987 |
| MITSUBISHI | 1.8 TD (D09V, D09W) | SPACE WAGON (D0_V/W) | 4D65T | 75 | Diesel | 1986–1991 |
| MITSUBISHI | 1.8 TD (N35W) | SPACE WAGON (N3_W, N4_W) | 4D65T | 75 | Diesel | 1991–1998 |
| MITSUBISHI | 1.8 Turbo-D (E14A) | GALANT V (E1_A) | 4D65T | 82 | Diesel | 1984–1990 |
| MITSUBISHI | 1.8 Turbo-D (E34A) | GALANT VI (E3_A) | 4D65T | 75 | Diesel | 1988–1992 |
| MITSUBISHI | 1.8 Turbo-D (E34A) | GALANT VI Saloon (E3_A) | 4D65T | 75 | Diesel | 1987–1992 |
| MITSUBISHI | 2.0 D (C67A) | LANCER IV Hatchback (C6_A, C7_A) | 4D68 | 68 | Diesel | 1992–1993 |
| MITSUBISHI | 2.0 D (CB8W) | LANCER V Station Wagon (CB_W, CD_W) | 4D68 | 68 | Diesel | 1992–2003 |
| MITSUBISHI | 2.0 Diesel (CB8A) | LANCER V (CB_A, CD_A, CE_A) | 4D68 | 68 | Diesel | 1992–1996 |
| MITSUBISHI | 2.0 GLSTD (E57A) | GALANT VII (E5_A, E7_A, E8_A) | 4D68T | 90 | Diesel | 1992–1996 |
| MITSUBISHI | 2.0 GLSTD (E57A) | GALANT VII Saloon (E5_A, E7_A, E8_A) | 4D68T | 90 | Diesel | 1992–1996 |
| MITSUBISHI | 2.0 TD (N18W) | SPACE RUNNER MPV (N1_W, N2_W) | 4D68T | 82 | Diesel | 1992–1999 |
| MITSUBISHI | 2.0 TD (N38W) | SPACE WAGON (N3_W, N4_W) | 4D68T | 82 | Diesel | 1992–1998 |
| MITSUBISHI | 2.0 TDI (EA6W) | GALANT VIII Estate (EA_, EC_) | 4D68T | 90 | Diesel | 1996–2003 |
| MITSUBISHI | 2.3 D (L038P) | L 300 / DELICA II Bus (L03_P/G, L0_2P) | 4D55 | 68 | Diesel | 1983–1986 |
| MITSUBISHI | 2.3 D (L038P, L068P) | L 300 / DELICA II Van (L03_P) | 4D55 | 68 | Diesel | 1983–1986 |
| MITSUBISHI | 2.3 TD (L043G, L048G) | PAJERO I (L04_G, L14_G) | 4D55-T | 84 | Diesel | 1982–1986 |
| MITSUBISHI | 2.3 TD (L043G, L048G) | PAJERO I Canvas Top (L04_G) | 4D55-T | 84 | Diesel | 1982–1986 |
| MITSUBISHI | 2.3 Turbo-D (A167) | GALANT IV (A16_) | 4D55-T | 84 | Diesel | 1980–1984 |
| MITSUBISHI | 2.3 Turbo-D (A167V) | GALANT IV Station Wagon (A16_V) | 4D55-T | 84 | Diesel | 1983–1984 |
| MITSUBISHI | 2.5 D (K14T) | L200 (K3_T, K2_T, K1_T, K0_T) | 4D56(8V) | 70 | Diesel | 1986–1996 |
| MITSUBISHI | 2.5 D (L039P) | L 300 / DELICA II Platform/Chassis (L03_P) | 4D56(8V) | 69 | Diesel | 1986–1994 |
| MITSUBISHI | 2.5 D (P05V, P05W, P15V) | L 300 III Van (P0_V, P1_V, P2_V) | 4D56(8V) | 69 | Diesel | 1986–2006 |
| MITSUBISHI | 2.5 D (P05V, P15V) | L 300 III Van (P0_V, P1_V, P2_V) | 4D56(8V) | 75 | Diesel | 1991–2003 |
| MITSUBISHI | 2.5 D (P05W, P15W) | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 4D56(8V) | 75 | Diesel | 1991–2003 |
| MITSUBISHI | 2.5 D (P05W, P15W, P25W) | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 4D56(8V) | 69 | Diesel | 1986–2004 |
| MITSUBISHI | 2.5 D 4WD (K24T) | L200 (K3_T, K2_T, K1_T, K0_T) | 4D56(8V) | 70 | Diesel | 1987–1993 |
| MITSUBISHI | 2.5 TD (L044G, L049G) | PAJERO I (L04_G, L14_G) | 4D56-T | 95 | Diesel | 1989–1990 |
| MITSUBISHI | 2.5 TD (L044G, L049G) | PAJERO I (L04_G, L14_G) | 4D56-T | 87 | Diesel | 1987–1991 |
| MITSUBISHI | 2.5 TD (L044G, L049G) | PAJERO I Canvas Top (L04_G) | 4D56-T | 95 | Diesel | 1989–1990 |
| MITSUBISHI | 2.5 TD (L044G, L049G) | PAJERO I Canvas Top (L04_G) | 4D56-T | 84 | Diesel | 1986–1989 |
| MITSUBISHI | 2.5 TD (P05W) | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 4D56-T | 87 | Diesel | 1987–2003 |
| MITSUBISHI | 2.5 TD 4WD (K34T) | L200 (K3_T, K2_T, K1_T, K0_T) | 4D56-T | 87 | Diesel | 1992–1996 |
| MITSUBISHI | 2.5 TD 4WD (L049G, L149G) | PAJERO I (L04_G, L14_G) | 4D56-T | 84 | Diesel | 1986–1991 |
| MITSUBISHI | 2.5 TD 4WD (P25V) | L 300 III Van (P0_V, P1_V, P2_V) | 4D56-T | 87 | Diesel | 1991–2003 |
| MITSUBISHI | 2.5 TD 4WD (P25W, P35W) | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 4D56-T | 87 | Diesel | 1987–2004 |
| MITSUBISHI | 2.5 TD 4WD (V24C) | PAJERO II Canvas Top (V2_C, V4_C) | 4D56-TD | 99 | Diesel | 1990–2000 |
| MITSUBISHI | 2.5 TD 4WD (V24W) | PAJERO II (V3_W, V2_W, V4_W, V5_W) | 4D56-TD | 99 | Diesel | 1990–1999 |
| MITSUBISHI | 2.5 TDi (V64W) | PAJERO III (V7_W, V6_W) | 4D56-T | 99 | Diesel | 2000–2006 |
| MITSUBISHI | 2.5 TDi (V64W, V74W) | PAJERO III (V7_W, V6_W) | 4D56-T | 115 | Diesel | 2001–2006 |
| MITSUBISHI | 2.5 TDiC (V44W, V24W) | PAJERO II (V3_W, V2_W, V4_W, V5_W) | 4D56-T | 99 | Diesel | 1991–1999 |
| PROTON | 420 D | PERSONA 400 Hatchback (C9_C, C9_S) | 4D68T | 82 | Diesel | 1996–2000 |
| PROTON | 420 GLS D | PERSONA 400 (C9_S) | 4D68 | 65 | Diesel | 1996–1999 |
| PROTON | 420 GLS D | PERSONA 400 Hatchback (C9_C, C9_S) | 4D68 | 65 | Diesel | 1996–1999 |
| PROTON | 420 TD | PERSONA 400 (C9_S) | 4D68T | 82 | Diesel | 1996–2000 |
