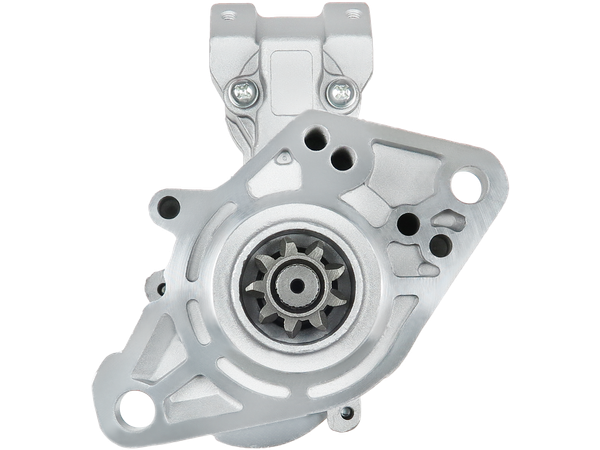

S5008
Startmotorer
STANDARD LINE
864 kr
Köp nu
| EAN | 5901259422849 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: PRSS651, STRS651 ALANKO: 10440206 AS-PL: S5008, UD02135S BOSCH: 0986023420 CARGO: 110576, F032110576 CASCO: CST35608AS CEVAM: 8160 ELECTROLOG: STR5112 ELSTOCK: 45-1101 HC PARTS: JS553 HELLA: 8EA012586-261, 8EA726505-001 HYUNDAI / KIA: 36100-41010, 36100-41011, 36100-41012, 3610041010, 3610041011 KRAUF: STM0553 KUHNER: 20553 LOGISTIK: 335403 LUCAS: LRS01843, LRS1843 MITSUBISHI: M002T66871, M002T66872, M002T66873, M002T66881, M002T66882, M002T67871, M002T67872, M002T67873, M002T67881, M002T67882, M002T67883, M002T67884, M003T67871, M2T66871, M2T66872, M2T66873, M2T66881, M2T66882, M2T67871, M2T67872, M2T67873, M2T67881, M2T67882, M2T67883, M2T67884, M3T67871, ME017005, ME017034, ME017035, ME017036, ME017056, ME017061, ME017085, ME017088, ME017089, ME017092, MEO17005, MEO17034, MEO17035, MEO17036, MEO17056, MEO17061, MEO17085, MEO17088, MEO17089, MG232415 POWERMAX: 88213128 PSH: 151.501.093.265, 151.501.093.460, 151.501.093.510, 151.501.093.780, 151.501.093.130, 151.501.093.131, 151.501.093.440, 151.501.093.461, 151.501.093.462, S130.231 REAL: 20437806BN SANDO: 6035608.0 SIDAT: S24MH0127A2 STARDAX: STX200768 WOODAUTO: STR6138 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 60.00 |
| B-storlek [ mm ] | 17.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 250.00 |
| O.1 [ mm ] | 144.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
Passar i 1 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MITSUBISHI | Canter 60 | Canter (FE5, FE6) VI | 4D34-2AT4 | 136 | 1996– |
