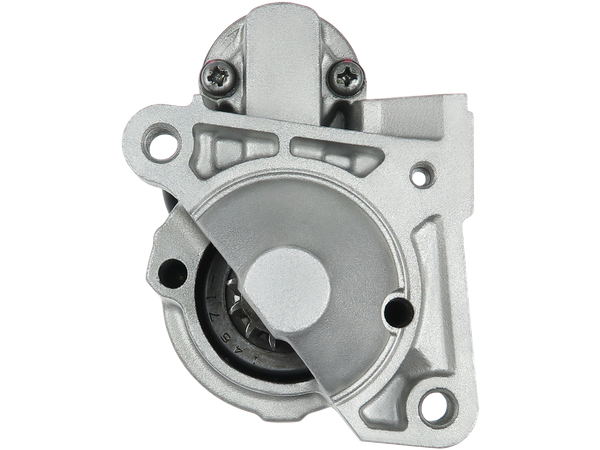

S5038PR
Startmotorer
PREMIUM LINE
600 kr
Köp nu
| EAN | 5902129097488 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: PRSL141, STRL141, STRL141MI, STRL141NE AINDE: CGB-23904, CGB-53107 ASHIKA: 003-D227 AUTO MAGNETO: AM-2851 AUTOELECTRO: AEU1273 BOSCH: 0986021741, F042200016 CARGO: 113927, F032113927 CASCO: CST35135AS, CST35135GS CEVAM: 3008 DELCO: DRS3904, DS5014N ELECTROLOG: STR5039 ELSTOCK: 25-3107 ERA: 220039 GHIBAUDI: SG0565 GPARTS: GST86181MI-R, GST91581-A HC PARTS: CS1273 HELLA: 8EA011610-201, 8EA738061-001 HERTH+BUSS: 42458239 JAPANPARTS: MTD227 JAPKO: 3D227 KRAUF: STM1273 KUHNER: 101273, 101273M, 254378 LOGISTIK: 331398 LUCAS: LRS01593, LRS1593 MAGNETI MARELLI: 944280801300, MRS80130 MITSUBISHI: M000T81291, M000T86181, M000T86181AM, M000T88381, M000T91581, M000T91581AM, M000T91581ZZ9, M0T81291, M0T86181, M0T86181AM, M0T88381, M0T91581, M0T91581AM, M0T91581ZZ9 NISSAN: 23300-00Q0G, 23300-00Q0H, 23300-00QAB, 23300-00QAW, 23300-00QAZ, 23300-00QUA, 23300-BN700, 23300-BN701, 23300-BN70A, 2330000QUA, 23300BN70B, 31100-84A00, 3110084A00 POWERMAX: 88212333 PRESTOLITE: S1223M PSH: 570.538.123.130, 570.538.123.136, 570.538.123.138, 570.538.123.265, 570.538.123.370, 570.538.123.395, S133.907, S145.630 REAL: 20437531BN, 20437531OE RENAULT: 7711134730, 7711135521, 82000021396, 8200021396, 82000227002, 8200227002, 8200227092, 8200426577, 8200584658, 8200584685 ROLLCO: STM1076 SANDO: 6035135.0, 6035135.1 SIDAT: S12MH0063, S12MH0063A2 SIOM: MAV371350 UNIPOINT: F042S0H073 VALEO: 446524, 726119 VOLVO: 8252615 WAI / TRANSPO: 32593N WOODAUTO: STR71037 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.10 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 65.00 |
| B-storlek [ mm ] | -2.50 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 194.00 |
| O.1 [ mm ] | 63.00 |
| O.2 [ mm ] | 105.00 |
| O.3 [ mm ] | 72.00 |
| C.1 [ mm ] | 5.50 |
| C.2 [ mm ] | M10x1.5 |
| C.3 [ mm ] | M10x1.5 |
Passar i 120 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DACIA | 1.5 dCi | SANDERO | K9K790 | 65 | Diesel | 2008– |
| DACIA | 1.5 dCi | SANDERO | K9K792 | 68 | Diesel | 2008– |
| DACIA | 1.5 dCi (FS0Y, FS00, FS0J) | LOGAN EXPRESS (FS_) | K9K794 | 65 | Diesel | 2007–2012 |
| DACIA | 1.5 dCi (LS0J, LS0Y) | LOGAN (LS_) | K9K790 | 65 | Diesel | 2005– |
| DACIA | 1.5 dCi (LS0K) | LOGAN (LS_) | K9K792 | 68 | Diesel | 2006–2012 |
| NISSAN | 1.5 dCi | ALMERA II (N16) | K9K722 | 82 | Diesel | 2003–2006 |
| NISSAN | 1.5 dCi | ALMERA II Hatchback (N16) | K9K722 | 82 | Diesel | 2003–2006 |
| NISSAN | 1.5 dCi | KUBISTAR Van (X76) | K9K710 | 57 | Diesel | 2003–2009 |
| NISSAN | 1.5 dCi | KUBISTAR Van (X76) | K9K722 | 82 | Diesel | 2003–2009 |
| NISSAN | 1.5 dCi | KUBISTAR Van (X76) | K9K714 | 61 | Diesel | 2005–2009 |
| NISSAN | 1.5 dCi | KUBISTAR Van (X76) | K9K704 | 65 | Diesel | 2003– |
| NISSAN | 1.5 dCi | KUBISTAR Van (X76) | K9K714 | 57 | Diesel | 2003–2009 |
| NISSAN | 1.5 dCi | KUBISTAR Van (X76) | K9K710 | 61 | Diesel | 2005–2009 |
| NISSAN | 1.5 dCi | MICRA III (K12) | K9K704 | 65 | Diesel | 2003–2010 |
| NISSAN | 1.5 dCi | MICRA III (K12) | K9K708 | 68 | Diesel | 2005–2010 |
| NISSAN | 1.5 dCi | MICRA III (K12) | K9K722 | 82 | Diesel | 2003–2010 |
| NISSAN | 1.5 dCi | MICRA III (K12) | K9K276 | 86 | Diesel | 2005–2010 |
| NISSAN | 1.5 dCi 70 | KUBISTAR Van (X76) | K9K716 | 68 | Diesel | 2005–2009 |
| NISSAN | 1.5 dCi 70 | KUBISTAR Van (X76) | K9K700 | 68 | Diesel | 2005–2009 |
| NISSAN | dCi 85 | KUBISTAR Van (X76) | K9K718 | 84 | Diesel | 2006–2009 |
| NISSAN | dCi 85 | KUBISTAR Van (X76) | K9K276 | 84 | Diesel | 2006–2009 |
| RENAULT | 1.4 (B/CB0C, B/CB0S) | CLIO II (BB_, CB_) | E7J635 | 75 | Petrol | 1998–2005 |
| RENAULT | 1.4 (B/CB0C, B/CB0S) | CLIO II (BB_, CB_) | K7J700 | 75 | Petrol | 1998–2005 |
| RENAULT | 1.4 (B/CB0C, B/CB0S) | CLIO II (BB_, CB_) | E7J634 | 75 | Petrol | 1998–2005 |
| RENAULT | 1.4 (B/CB0C, B/CB0S) | CLIO II (BB_, CB_) | E7J780 | 75 | Petrol | 1998–2005 |
| RENAULT | 1.5 dCi | CLIO II (BB_, CB_) | K9K704 | 57 | Diesel | 2001–2006 |
| RENAULT | 1.5 dCi | CLIO II (BB_, CB_) | K9K712 | 100 | Diesel | 2003–2005 |
| RENAULT | 1.5 dCi | CLIO II Hatchback Van (SB0/1/2_) | K9K710 | 82 | Diesel | 2003– |
| RENAULT | 1.5 dCi | CLIO II Hatchback Van (SB0/1/2_) | K9K702 | 80 | Diesel | 2001–2004 |
| RENAULT | 1.5 dCi | CLIO II Hatchback Van (SB0/1/2_) | K9K702 | 82 | Diesel | 2003– |
| RENAULT | 1.5 dCi | CLIO II Hatchback Van (SB0/1/2_) | K9K716 | 82 | Diesel | 2003– |
| RENAULT | 1.5 dCi | CLIO II Hatchback Van (SB0/1/2_) | K9K714 | 68 | Diesel | 2004– |
| RENAULT | 1.5 dCi | CLIO III (BR0/1, CR0/1) | K9K752 | 64 | Diesel | 2005–2012 |
| RENAULT | 1.5 dCi | CLIO III (BR0/1, CR0/1) | K9K766 | 88 | Diesel | 2010–2014 |
| RENAULT | 1.5 dCi | CLIO III (BR0/1, CR0/1) | K9K752 | 65 | Diesel | 2005–2010 |
| RENAULT | 1.5 dCi | CLIO III (BR0/1, CR0/1) | K9K750 | 82 | Diesel | 2007–2012 |
| RENAULT | 1.5 dCi | CLIO III (BR0/1, CR0/1) | K9K770 | 88 | Diesel | 2010–2014 |
| RENAULT | 1.5 dCi | CLIO III Grandtour (KR0/1_) | K9K752 | 65 | Diesel | 2007–2012 |
| RENAULT | 1.5 dCi | KANGOO (KC0/1_) | K9K702 | 61 | Diesel | 2005–2010 |
| RENAULT | 1.5 dCi | KANGOO (KC0/1_) | K9K718 | 84 | Diesel | 2005– |
| RENAULT | 1.5 dCi | KANGOO (KC0/1_) | K9K704 | 57 | Diesel | 2003– |
| RENAULT | 1.5 dCi | KANGOO (KC0/1_) | K9K700 | 61 | Diesel | 2005–2010 |
| RENAULT | 1.5 dCi | KANGOO (KC0/1_) | K9K714 | 68 | Diesel | 2005– |
| RENAULT | 1.5 dCi | KANGOO Express (FC0/1_) | K9K716 | 61 | Diesel | 2005– |
| RENAULT | 1.5 dCi | LOGAN I (LS_) | K9K700 | 65 | Diesel | 2006–2013 |
| RENAULT | 1.5 dCi | LOGAN I (LS_) | K9K794 | 65 | Diesel | 2006–2013 |
| RENAULT | 1.5 dCi | LOGAN I (LS_) | K9K790 | 65 | Diesel | 2006–2013 |
| RENAULT | 1.5 dCi | LOGAN I (LS_) | K9K792 | 68 | Diesel | 2007– |
| RENAULT | 1.5 dCi | LOGAN I Estate (KS_) | K9K792 | 68 | Diesel | 2007– |
| RENAULT | 1.5 dCi | MEGANE II Hatchback Van (KM0/2_) | K9K722 | 82 | Diesel | 2003–2008 |
| RENAULT | 1.5 dCi | THALIA I (LB_) | K9K714 | 68 | Diesel | 2003– |
| RENAULT | 1.5 dCi | THALIA I (LB_) | K9K718 | 84 | Diesel | 2001–2009 |
| RENAULT | 1.5 dCi | THALIA I (LB_) | K9K706 | 79 | Diesel | 2004–2009 |
| RENAULT | 1.5 dCi | THALIA I (LB_) | K9K706 | 82 | Diesel | 2001–2009 |
| RENAULT | 1.5 dCi | THALIA I (LB_) | K9K700 | 68 | Diesel | 2003– |
| RENAULT | 1.5 dCi | THALIA I (LB_) | K9K700 | 65 | Diesel | 2002– |
| RENAULT | 1.5 dCi | THALIA I (LB_) | K9K740 | 64 | Diesel | 2005– |
| RENAULT | 1.5 dCi | THALIA II (LU_) | K9K700 | 65 | Diesel | 2009– |
| RENAULT | 1.5 dCi | THALIA II (LU_) | K9K740 | 64 | Diesel | 2008– |
| RENAULT | 1.5 dCi | THALIA II (LU_) | K9K718 | 85 | Diesel | 2008– |
| RENAULT | 1.5 dCi (B/C2J) | CLIO II (BB_, CB_) | K9K714 | 68 | Diesel | 2004–2012 |
| RENAULT | 1.5 dCi (B/C2J) | CLIO II (BB_, CB_) | K9K700 | 68 | Diesel | 2004–2012 |
| RENAULT | 1.5 dCi (B/CB03) | CLIO II (BB_, CB_) | K9K702 | 80 | Diesel | 2001–2003 |
| RENAULT | 1.5 dCi (B/CB07) | CLIO II (BB_, CB_) | K9K704 | 65 | Diesel | 2001–2009 |
| RENAULT | 1.5 dCi (B/CB07) | CLIO II (BB_, CB_) | K9K700 | 65 | Diesel | 2001–2009 |
| RENAULT | 1.5 dCi (B/CB08) | CLIO II (BB_, CB_) | K9K702 | 82 | Diesel | 2001–2005 |
| RENAULT | 1.5 dCi (B/CB3M) | CLIO II (BB_, CB_) | K9K740 | 64 | Diesel | 2005–2010 |
| RENAULT | 1.5 dCi (BB3N, CB3N) | CLIO II (BB_, CB_) | K9K718 | 84 | Diesel | 2007–2009 |
| RENAULT | 1.5 dCi (BM02, BM13, BM2A, CM02, CM13) | MEGANE II (BM0/1_, CM0/1_) | K9K729 | 101 | Diesel | 2003–2008 |
| RENAULT | 1.5 dCi (BM02, BM13, BM2A, CM02, CM13) | MEGANE II (BM0/1_, CM0/1_) | K9K728 | 101 | Diesel | 2003–2008 |
| RENAULT | 1.5 dCi (BM0F, BM0T, BM2B, CM0F, CM0T) | MEGANE II (BM0/1_, CM0/1_) | K9K722 | 82 | Diesel | 2002–2008 |
| RENAULT | 1.5 dCi (BM16, CM16) | MEGANE II (BM0/1_, CM0/1_) | K9K734 | 103 | Diesel | 2007–2009 |
| RENAULT | 1.5 dCi (BM1E, CM1E) | MEGANE II (BM0/1_, CM0/1_) | K9K732 | 106 | Diesel | 2005–2008 |
| RENAULT | 1.5 dCi (BM1F, CM1F) | MEGANE II (BM0/1_, CM0/1_) | K9K724 | 86 | Diesel | 2005–2008 |
| RENAULT | 1.5 dCi (EM16) | MEGANE II Coupé-Cabriolet (EM0/1_) | K9K734 | 103 | Diesel | 2007–2009 |
| RENAULT | 1.5 dCi (EM1E) | MEGANE II Coupé-Cabriolet (EM0/1_) | K9K732 | 106 | Diesel | 2006–2009 |
| RENAULT | 1.5 dCi (FC07, FC1R) | KANGOO Express (FC0/1_) | K9K702 | 65 | Diesel | 2001– |
| RENAULT | 1.5 dCi (FC07, FC1R) | KANGOO Express (FC0/1_) | K9K700 | 65 | Diesel | 2001– |
| RENAULT | 1.5 dCi (FC07, FC1R) | KANGOO Express (FC0/1_) | K9K704 | 65 | Diesel | 2001– |
| RENAULT | 1.5 dCi (FC08, FC09) | KANGOO Express (FC0/1_) | K9K702 | 82 | Diesel | 2003– |
| RENAULT | 1.5 dCi (FC08, FC09) | KANGOO Express (FC0/1_) | K9K710 | 82 | Diesel | 2003– |
| RENAULT | 1.5 dCi (FC1E) | KANGOO Express (FC0/1_) | K9K714 | 68 | Diesel | 2005– |
| RENAULT | 1.5 dCi (FC1G) | KANGOO Express (FC0/1_) | K9K718 | 84 | Diesel | 2005– |
| RENAULT | 1.5 dCi (FC1R) | KANGOO Express (FC0/1_) | K9K704 | 57 | Diesel | 2002– |
| RENAULT | 1.5 dCi (FP0D, JP0D) | MODUS / GRAND MODUS (F/JP0_) | K9K750 | 82 | Diesel | 2004– |
| RENAULT | 1.5 dCi (FP0E, JP0E) | MODUS / GRAND MODUS (F/JP0_) | K9K768 | 65 | Diesel | 2004– |
| RENAULT | 1.5 dCi (FP0E, JP0E) | MODUS / GRAND MODUS (F/JP0_) | K9K752 | 65 | Diesel | 2004– |
| RENAULT | 1.5 dCi (JM0F) | SCÉNIC II (JM0/1_) | K9K722 | 82 | Diesel | 2003–2006 |
| RENAULT | 1.5 dCi (JM1F) | SCÉNIC II (JM0/1_) | K9K724 | 86 | Diesel | 2005–2008 |
| RENAULT | 1.5 dCi (KC07) | KANGOO (KC0/1_) | K9K704 | 65 | Diesel | 2001– |
| RENAULT | 1.5 dCi (KC07) | KANGOO (KC0/1_) | K9K700 | 65 | Diesel | 2001– |
| RENAULT | 1.5 dCi (KC08, KC09) | KANGOO (KC0/1_) | K9K702 | 82 | Diesel | 2002– |
| RENAULT | 1.5 dCi (KC08, KC09) | KANGOO (KC0/1_) | K9K710 | 82 | Diesel | 2002– |
| RENAULT | 1.5 dCi (KM02, KM13) | MEGANE II Estate (KM0/1_) | K9K728 | 101 | Diesel | 2004–2006 |
| RENAULT | 1.5 dCi (KM02, KM13) | MEGANE II Estate (KM0/1_) | K9K729 | 101 | Diesel | 2004–2006 |
| RENAULT | 1.5 dCi (KM0F) | MEGANE II Estate Van (KM_) | K9K722 | 82 | Diesel | 2003–2009 |
| RENAULT | 1.5 dCi (KM0F, KM0T, KM2B) | MEGANE II Estate (KM0/1_) | K9K722 | 82 | Diesel | 2003–2006 |
| RENAULT | 1.5 dCi (KM16) | MEGANE II Estate (KM0/1_) | K9K734 | 103 | Diesel | 2007–2009 |
| RENAULT | 1.5 dCi (KM16, KM1E) | MEGANE II Estate (KM0/1_) | K9K732 | 106 | Diesel | 2005–2008 |
| RENAULT | 1.5 dCi (KM1E) | MEGANE II Estate Van (KM_) | K9K732 | 106 | Diesel | 2003–2009 |
| RENAULT | 1.5 dCi (KM1F) | MEGANE II Estate (KM0/1_) | K9K724 | 86 | Diesel | 2005–2009 |
| RENAULT | 1.5 dCi (KM1F) | MEGANE II Estate Van (KM_) | K9K724 | 86 | Diesel | 2005–2009 |
| RENAULT | 1.5 dCi (LM02, LM13, LM2A) | MEGANE II Saloon (LM0/1_) | K9K728 | 101 | Diesel | 2004–2010 |
| RENAULT | 1.5 dCi (LM02, LM13, LM2A) | MEGANE II Saloon (LM0/1_) | K9K729 | 101 | Diesel | 2004–2010 |
| RENAULT | 1.5 dCi (LM0F, LM0T, LM2B) | MEGANE II Saloon (LM0/1_) | K9K722 | 82 | Diesel | 2003–2010 |
| RENAULT | 1.5 dCi (LM16) | MEGANE II Saloon (LM0/1_) | K9K734 | 103 | Diesel | 2003–2010 |
| RENAULT | 1.5 dCi (LM1E) | MEGANE II Saloon (LM0/1_) | K9K732 | 106 | Diesel | 2005–2010 |
| RENAULT | 1.5 dCi (LM1F) | MEGANE II Saloon (LM0/1_) | K9K724 | 86 | Diesel | 2005–2010 |
| RENAULT | 1.5 dCi (SB07) | CLIO II Hatchback Van (SB0/1/2_) | K9K700 | 65 | Diesel | 2001– |
| RENAULT | 1.5 dCi (SB07) | CLIO II Hatchback Van (SB0/1/2_) | K9K704 | 65 | Diesel | 2001– |
| RENAULT | 1.5 dCi 90 | MODUS / GRAND MODUS (F/JP0_) | K9K770 | 88 | Diesel | 2010– |
| RENAULT | 1.5 dCi 90 | MODUS / GRAND MODUS (F/JP0_) | K9K750 | 88 | Diesel | 2010– |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q804 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q818 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q803 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II (BM0/1_, CM0/1_) | F9Q816 | 131 | Diesel | 2005–2009 |
| RENAULT | 1.9 dCi | MEGANE II Coupé-Cabriolet (EM0/1_) | F9Q800 | 120 | Diesel | 2003–2009 |
| RENAULT | 1.9 dCi (KMRG, KM1G, KM0G, KM2C) | MEGANE II Estate (KM0/1_) | F9Q800 | 120 | Diesel | 2003–2009 |
| RENAULT | 1.9 dCi (LM0G, LM1G, LM2C) | MEGANE II Saloon (LM0/1_) | F9Q800 | 120 | Diesel | 2003– |
| SUZUKI | 1.5 DDiS 4WD (SN415D) | JIMNY Closed Off-Road Vehicle (SN) | K9K700 | 65 | Diesel | 2003– |
