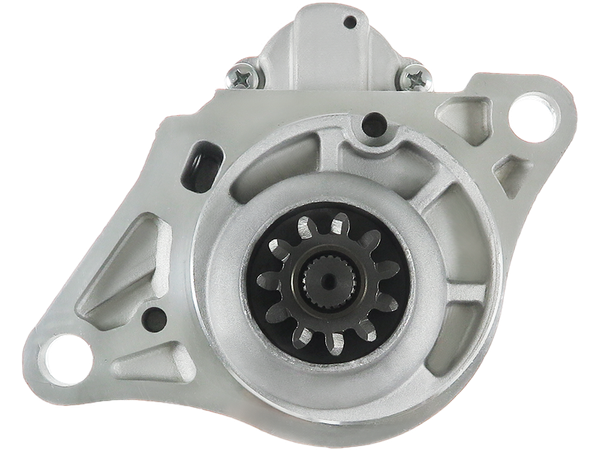

S5181
Startmotorer
STANDARD LINE
1240 kr
Köp nu
| EAN | 5902129003557 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: STRL667 AS-PL: S5181, UD11152S, UD12417S AUTO MAGNETO: AM-2656, AM-2656W CARGO: 114474, F032114474 CASCO: CST35622AS, CST35622GS CEVAM: 8296 DELCO: DRS0912, DS2022 DIXIE: 243-25213 ELECTROLOG: STR5158 ELSTOCK: 45-4430 HITACHI: E02GES096 ISUZU: 1811003191, 1811003240, 1811003241, 1811004140, 1811004142, 1811004173, 1811004340, 898060-8540, 8980608540, 898141-2061, 8981412061 KUHNER: 254577, 254577M LOGISTIK: 336039 LUCAS: LRS02757, LRS2757 MITSUBISHI: M008T6097, M008T60971, M008T60971B, M008T60972, M008T60973, M008T60973AM, M008T61371, M009T60871, M8T60971, M8T60971B, M8T60972, M8T60973, M8T60973AM, M8T61371, M9T60871 PSH: 131.513.112.050, 131.513.112.130, 131.513.112.136, 131.513.112.370, 131.513.112.711, S129.561, S143.961 REAL: 20437226BN, 20437226OE ROBERT'S: 130-80125 SANDO: 6035622.0, 6035622.1 SIDAT: S24MH0013A2 WAI / TRANSPO: 19167N WOODAUTO: STR71221 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 45.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 288.00 |
| O.1 [ mm ] | 162.00 |
| C.1 [ mm ] | 15.00 |
| C.2 [ mm ] | 15.00 |
| Oil sealed | Yes |
Passar i 4 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HITACHI | 7.8 | ZX 330 | 6HK1X | 0 | 1999–2007 | |
| HITACHI | 7.8 | ZX 370 | 6HK1X | 0 | 1999–2007 | |
| HITACHI | 7.8 | ZX350 | 6HK1X | 0 | 1999–2007 | |
| ISUZU | Engine | 6HK1X | 0 | 1999–2007 |
