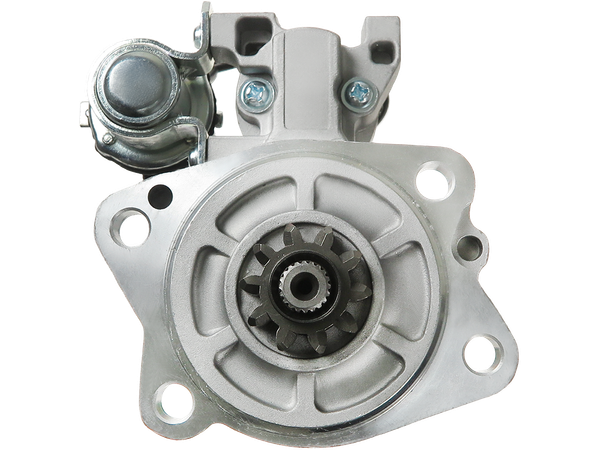

S5189
Startmotorer
STANDARD LINE
1205 kr
Köp nu
| EAN | 5902129007449 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M8T60371 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.00 |
| B-storlek [ mm ] | 22.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 4 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 287.00 |
| O.1 [ mm ] | 55.00 |
| O.2 [ mm ] | 95.00 |
| O.3 [ mm ] | 56.00 |
| O.4 [ mm ] | 97.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| C.4 [ mm ] | 11.50 |
Passar i 29 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | DP40 | S6E | 0 | – | ||
| CATERPILLAR | DP40 Mitsubishi | S6E | 0 | – | ||
| CATERPILLAR | PD40 | 0 | 1984– | |||
| MITSUBISHI | DP40 | S6S | 0 | – | ||
| MITSUBISHI | DP40 Mitsubishi | S6S | 0 | – | ||
| MITSUBISHI | FD35D | S6S | 0 | – | ||
| MITSUBISHI | FD35D | S6E | 0 | – | ||
| MITSUBISHI | FD35D Mitsubishi | S6E | 0 | – | ||
| MITSUBISHI | FD35D2 | S6S | 0 | – | ||
| MITSUBISHI | FD35D2 | S6E | 0 | – | ||
| MITSUBISHI | FD35D2 Mitsubishi | S6E | 0 | – | ||
| MITSUBISHI | FD35DS | S6S | 0 | – | ||
| MITSUBISHI | FD35DS | S6E | 0 | – | ||
| MITSUBISHI | FD35DS Mitsubishi | S6E | 0 | – | ||
| MITSUBISHI | FD38 | S6S | 0 | – | ||
| MITSUBISHI | FD38 | S6E | 0 | – | ||
| MITSUBISHI | FD38 Mitsubishi | S6E | 0 | – | ||
| MITSUBISHI | FD40D | S6E | 0 | – | ||
| MITSUBISHI | FD40D | S6S | 0 | – | ||
| MITSUBISHI | FD40D Mitsubishi | S6E | 0 | – | ||
| MITSUBISHI | FD45D | S6E | 0 | – | ||
| MITSUBISHI | FD45D | S6S | 0 | – | ||
| MITSUBISHI | FD45D Mitsubishi | S6E | 0 | – | ||
| MITSUBISHI | FD50C | S6S | 0 | – | ||
| MITSUBISHI | FD50C | S6E | 0 | – | ||
| MITSUBISHI | FD50C Mitsubishi | S6E | 0 | – | ||
| MITSUBISHI | FD50D | S6S | 0 | – | ||
| MITSUBISHI | FD50D | S6E | 0 | – | ||
| MITSUBISHI | FD50D Mitsubishi | S6E | 0 | – |
