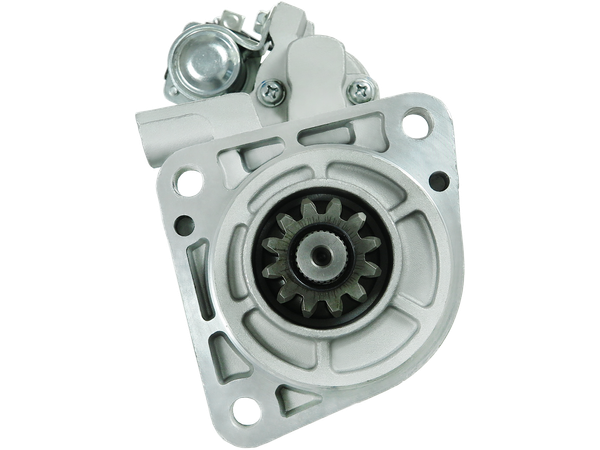

S5207
Startmotorer
STANDARD LINE
1997 kr
Köp nu
| EAN | 5902129021261 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M9T50471 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 4.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 28.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 327.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
| C.3 [ mm ] | 11.50 |
| Oil sealed | Yes |
Passar i 16 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DEUTZ-FAHR | 7.2 | Engine | TCD2013 | 0 | – | |
| FENDT | 7.2 | 922 | TCD2013 | 0 | 2006–2010 | |
| FENDT | 7.2 | 924 | TCD2013 | 0 | 2006–2010 | |
| FENDT | 7.2 | 927 | TCD2013 | 0 | 2006–2010 | |
| FENDT | 7.2 | 930 | TCD2013 | 0 | 2006–2010 | |
| FENDT | 7.2 | 933 | TCD2016 | 0 | 2006–2010 | |
| FENDT | 7.2 | 936 | TCD2013 | 0 | 2006–2010 | |
| FENDT | 7.8 | 924 | 0 | 2010–2013 | ||
| FENDT | 7.8 | 927 | 0 | 2010–2017 | ||
| FENDT | 7.8 | 930 | TTDC | 0 | 2013–2017 | |
| FENDT | 7.8 | 930 | 0 | 2010–2013 | ||
| FENDT | 7.8 | 933 | TTDC | 0 | 2013–2017 | |
| FENDT | 7.8 | 936 | TTDC | 0 | 2013–2017 | |
| FENDT | 7.8 | 939 | TTDC | 0 | 2013–2017 | |
| FENDT | 7.8 | 939 | 0 | 2010–2013 | ||
| ZOOMLION | 7.1 | ZL2014 | TCD2013 | 0 | – |
