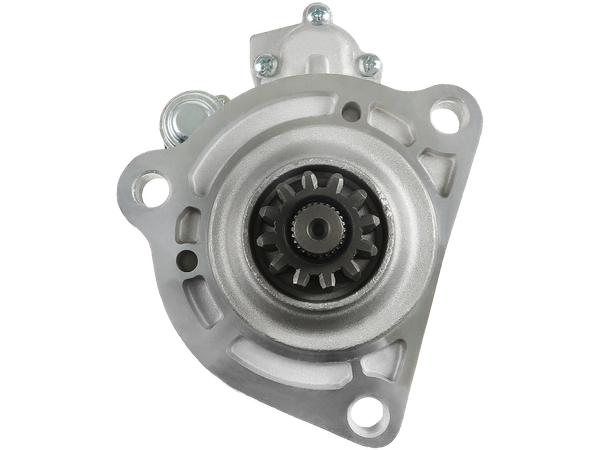

S5227
Startmotorer
STANDARD LINE
2311 kr
Köp nu
| EAN | 5902129028246 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M9T83771 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 349.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 14.00 |
| C.2 [ mm ] | 14.00 |
| C.3 [ mm ] | 14.00 |
Passar i 35 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SCANIA | R500 | R I | DC16.09 | 500 | 2004–2019 | |
| SCANIA | R500 | R I | DC16.19 | 500 | 2004–2019 | |
| SCANIA | R500 | R I | DC16.22 | 500 | 2004–2019 | |
| SCANIA | R500 | R I | DC16.04 | 500 | 2004–2019 | |
| SCANIA | R500 | R I | DC16.06 | 500 | 2004–2019 | |
| SCANIA | R500 | R I | DC16.04 | 500 | 2008–2019 | |
| SCANIA | R500 | R I | DC16.06 | 500 | 2009–2019 | |
| SCANIA | R500 | R I | DC16.19 | 500 | 2009–2019 | |
| SCANIA | R560 | R I | DC16.05 | 560 | 2006–2019 | |
| SCANIA | R560 | R I | DC16.18 | 560 | 2006–2019 | |
| SCANIA | R560 | R I | DC16.18 | 560 | 2004–2019 | |
| SCANIA | R560 | R I | DC16.05 | 560 | 2004–2019 | |
| SCANIA | R560 | R I | DC16.05 | 560 | 2009–2019 | |
| SCANIA | R560 | R I | DC16.18 | 560 | 2009–2019 | |
| SCANIA | R560 | R I | DC16.18 | 560 | 2008–2019 | |
| SCANIA | R560 | R I | DC16.18 | 559-560 | 2004–2019 | |
| SCANIA | R560 | R I | DC16.05 | 560 | 2008–2019 | |
| SCANIA | R560 | R I | DC16.05 | 559-560 | 2004–2019 | |
| SCANIA | R580 | R I | DC16.03 | 580 | 2004–2019 | |
| SCANIA | R580 | R I | DC16.03 | 579-581 | 2004–2019 | |
| SCANIA | R580 | R I | DC16.03 | 579 | 2004–2019 | |
| SCANIA | R580 | R I | DC16.03 | 579 | 2009–2019 | |
| SCANIA | R620 | R I | DC16.17 | 620 | 2009–2019 | |
| SCANIA | R620 | R I | DC16.17 | 620 | 2004–2019 | |
| SCANIA | R620 | R I | DC16.17 | 620 | 2006–2019 | |
| SCANIA | R620 | R I | DC16.08 | 620 | 2008–2019 | |
| SCANIA | R620 | R I | DC16.08 | 619-620 | 2004–2019 | |
| SCANIA | R620 | R I | DC16.08 | 620 | 2009–2019 | |
| SCANIA | R620 | R I | DC16.08 | 620 | 2006–2019 | |
| SCANIA | R620 | R I | DC16.08 | 620 | 2004–2019 | |
| SCANIA | R620 | R I | DC16.08 | 620 | 2005–2019 | |
| SCANIA | R620 | R I | DC16.17 | 620 | 2008–2019 | |
| SCANIA | R620 | R I | DC16.17 | 619-620 | 2004–2019 | |
| SCANIA | R620 | R I | DT16.08 | 620 | 2004–2019 | |
| SCANIA | R730 | R I | DC16.21 | 730 | 2010–2019 |
