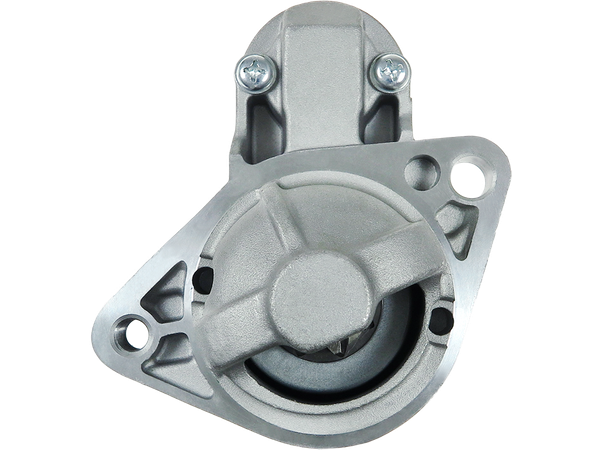

S5228
Startmotorer
STANDARD LINE
719 kr
Köp nu
| EAN | 5902129028703 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M0T23171 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 70.00 |
| B-storlek [ mm ] | 28.00 |
| Antal kuggar [ qty. ] | 8 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 183.00 |
| O.1 [ mm ] | 103.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | M10x1.75 |
Passar i 4 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SUZUKI | 2.4 (A6B424) | KIZASHI (FR) | J24B | 178 | Petrol | 2010– |
| SUZUKI | 2.4 4x4 (A6B424) | KIZASHI (FR) | J24B | 178 | Petrol | 2010– |
| SUZUKI | 2.4 All-wheel Drive (JB424) | GRAND VITARA II (JT, TE, TD) | J24B | 169 | Petrol | 2009– |
| SUZUKI | 2.4 All-wheel Drive (JT424, JB424, TDA4) | GRAND VITARA II (JT, TE, TD) | J24B | 166 | Petrol | 2009– |
