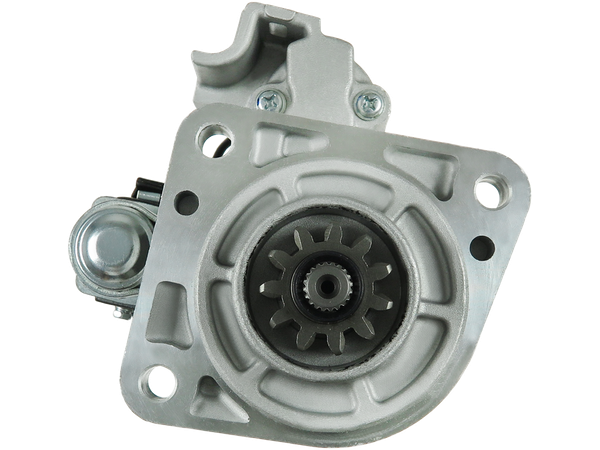

S5244S
Startmotorer
STANDARD LINE
1796 kr
Köp nu
| EAN | 5902129048855 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M8T62771 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 28.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 297.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 82.00 |
| O.3 [ mm ] | 94.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
| C.3 [ mm ] | 11.50 |
Passar i 455 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MAN | 10.150 | TGL II | D0834LFLAA | 150 | 2020– | |
| MAN | 10.150 | TGL II | D0834LFL66 | 150 | 2020– | |
| MAN | 10.180 | TGL I | D0834LFL41 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFLAB | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFL75 | 179 | 2012–2022 | |
| MAN | 10.180 | TGL I | D0834LFL54 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFL67 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFL51 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL I | D0834LFL64 | 180 | 2005–2022 | |
| MAN | 10.180 | TGL II | D0834LFLAD | 179 | 2020– | |
| MAN | 10.180 | TGL II | D0834LFL67 | 179 | 2020– | |
| MAN | 10.180 | TGL II | D0834LFLAB | 179 | 2020– | |
| MAN | 10.190 | TGL I | D0834LFLAG | 190 | 2017–2022 | |
| MAN | 10.190 | TGL I | D0834LFL78 | 190 | 2017–2022 | |
| MAN | 10.190 | TGL I | D0834LFL84 | 190 | 2017–2022 | |
| MAN | 10.190 | TGL I | D0834LFL90 | 190 | 2017–2022 | |
| MAN | 10.210 | TGL I | D0834LFL42 | 206 | 2005–2022 | |
| MAN | 10.210 | TGL I | D0834LFL55 | 206 | 2005–2022 | |
| MAN | 10.210 | TGL I | D0834LFL52 | 206 | 2005–2022 | |
| MAN | 10.220 | TGL I | D0834LFL68 | 220 | 2005–2022 | |
| MAN | 10.220 | TGL I | D0834LFL76 | 220 | 2012–2022 | |
| MAN | 10.220 | TGL I | D0834LFL65 | 220 | 2005–2022 | |
| MAN | 10.220 | TGL II | D0834LFLAC | 220 | 2020– | |
| MAN | 10.220 | TGL II | D0834LFL68 | 220 | 2020– | |
| MAN | 10.220 | TGL II | D0834LFLAE | 220 | 2020– | |
| MAN | 10.220 FOC,10.220 FOCL | L2000 | D0826LFL03 | 220 | 1995– | |
| MAN | 10.240 | TGL I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 10.240 | TGL I | D0836LFL50 | 240 | 2005–2022 | |
| MAN | 10.240 | TGL I | D0836LFL40 | 240 | 2005–2022 | |
| MAN | 10.250 | TGL I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 10.250 | TGL I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 10.250 | TGL I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 10.250 | TGL I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 12.150 | TGL II | D0834LFLAA | 150 | 2020– | |
| MAN | 12.150 | TGL II | D0834LFL66 | 150 | 2020– | |
| MAN | 12.180 | TGL I | D0834LFL67 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFL51 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFL64 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFLAB | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFL41 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL I | D0834LFL75 | 179 | 2012–2022 | |
| MAN | 12.180 | TGL I | D0834LFL54 | 180 | 2005–2022 | |
| MAN | 12.180 | TGL II | D0834LFLAB | 179 | 2020– | |
| MAN | 12.180 | TGL II | D0834LFL67 | 179 | 2020– | |
| MAN | 12.180 | TGL II | D0834LFLAD | 179 | 2020– | |
| MAN | 12.190 | TGL I | D0834LFL90 | 190 | 2017–2022 | |
| MAN | 12.190 | TGL I | D0834LFL84 | 190 | 2017–2022 | |
| MAN | 12.190 | TGL I | D0834LFLAG | 190 | 2017–2022 | |
| MAN | 12.190 | TGL I | D0834LFL78 | 190 | 2017–2022 | |
| MAN | 12.210 | TGL I | D0834LFL42 | 206 | 2005–2022 | |
| MAN | 12.210 | TGL I | D0834LFL55 | 206 | 2005–2022 | |
| MAN | 12.210 | TGL I | D0834LFL52 | 206 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL65 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL76 | 220 | 2012–2022 | |
| MAN | 12.220 | TGL I | D0834LFL85 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL62 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFLAC | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL68 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL76 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL79 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFL91 | 220 | 2005–2022 | |
| MAN | 12.220 | TGL I | D0834LFLAH | 220 | 2005–2022 | |
| MAN | 12.220 | TGL II | D0834LFL68 | 220 | 2020– | |
| MAN | 12.220 | TGL II | D0834LFLAE | 220 | 2020– | |
| MAN | 12.220 | TGL II | D0834LFLAC | 220 | 2020– | |
| MAN | 12.220 HOCL/R-NL | HOCL | D0826LOH15 | 220 | 1999–2009 | |
| MAN | 12.220 HOCL/R-NL | HOCL | D0826LOH17 | 220 | 1999–2009 | |
| MAN | 12.240 | TGL I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 12.240 | TGL I | D0836LFL50 | 240 | 2005–2022 | |
| MAN | 12.240 | TGL I | D0836LFL40 | 240 | 2005–2022 | |
| MAN | 12.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 12.240 | TGM I | D0836LFL50 | 240 | 2005–2022 | |
| MAN | 12.240 HOCL-NL | HOCL | D0836LOH56 | 240 | 2000– | |
| MAN | 12.240 HOCL-NL | HOCL | D0836LOH52 | 240 | 2000– | |
| MAN | 12.245 | HOCL | D0836LOH04 | 245 | 2004–2008 | |
| MAN | 12.245 | HOCL | D0836LOH04 | 245 | 2002–2006 | |
| MAN | 12.250 | TGL I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 12.250 | TGL I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 12.250 | TGL I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 12.250 | TGL I | D0836LFL75 | 250 | 2005–2022 | |
| MAN | 12.250 | TGL I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 12.250 | TGL I | D0836LFL60 | 250 | 2005–2022 | |
| MAN | 12.250 | TGM I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 12.250 | TGM I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 12.250 | TGM I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 12.250 | TGM I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 12.260 | HOCL | D0836LOH62 | 260 | 2009–2014 | |
| MAN | 12.260 | HOCL | D0836LOH63 | 260 | 2005–2009 | |
| MAN | 12.260 | HOCL | D0836LOH63 | 260 | 2009–2014 | |
| MAN | 12.260 | HOCL | D0836LOH62 | 260 | 2005–2009 | |
| MAN | 12.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 12.280 | TGM I | D0836LFL51 | 280 | 2005–2022 | |
| MAN | 12.290 | TGM I | D0836LFL67 | 290 | 2005–2022 | |
| MAN | 12.290 | TGM I | D0836LFL76 | 290 | 2008–2022 | |
| MAN | 12.290 | TGM I | D0836LFL64 | 290 | 2005–2022 | |
| MAN | 12.290 | TGM I | D0836LFL70 | 290 | 2008–2022 | |
| MAN | 13.220 HOCL/R | HOCL | D0826LOH03 | 220-230 | 2001–2004 | |
| MAN | 13.220 HOCL/R | HOCL | D0826LOH05 | 220-230 | 2001–2004 | |
| MAN | 13.220 HOCL/R | HOCL | D0826LOH17 | 220-230 | 2001–2004 | |
| MAN | 13.220 HOCL/R | HOCL | D0826LOH04 | 220-230 | 2001–2004 | |
| MAN | 13.220 HOCL/R | HOCL | D0826LOH15 | 220-230 | 2001–2004 | |
| MAN | 13.240 | TGM I | D0836LFL40 | 240 | 2006–2022 | |
| MAN | 13.240 | TGM I | D0836LFL50 | 240 | 2006–2022 | |
| MAN | 13.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 13.240 | TGM I | D0836LFL53 | 240 | 2006–2022 | |
| MAN | 13.250 | TGM I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 13.250 | TGM I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 13.280 | TGM I | D0836LFL41 | 280 | 2006–2022 | |
| MAN | 13.280 | TGM I | D0836LFL51 | 280 | 2006–2022 | |
| MAN | 13.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 13.280 | TGM I | D0836LFL54 | 280 | 2006–2022 | |
| MAN | 13.290 | TGM I | D0836LFL67 | 290 | 2005–2022 | |
| MAN | 13.290 | TGM I | D0836LFL64 | 290 | 2005–2022 | |
| MAN | 14.220 HOCL/R-NL | HOCL | D0826LOH15 | 220 | 1998– | |
| MAN | 14.220 HOCL/R-NL | HOCL | D0826LUH11 | 220 | 1998– | |
| MAN | 14.220 HOCL/R-NL | HOCL | D0826LOH17 | 220 | 1998– | |
| MAN | 14.240 HOCL-NL | HOCL | D0836LOH52 | 240 | 2000– | |
| MAN | 14.240 HOCL-NL | HOCL | D0836LOH56 | 240 | 2000– | |
| MAN | 14.245 | HOCL | D0836LOH04 | 245 | 2004–2010 | |
| MAN | 14.250 HOCL-NL | HOCL | D0826LOH10 | 250 | 2007– | |
| MAN | 14.250 HOCL-NL | HOCL | D0836LOH61 | 250 | 2007– | |
| MAN | 14.260 | HOCL | D0836LOH62 | 260 | 2005–2009 | |
| MAN | 14.260 | HOCL | D0836LOH63 | 260 | 2005–2009 | |
| MAN | 14.280 HOCL | HOCL | D0836LOH40 | 280 | 2002–2014 | |
| MAN | 14.280 HOCL | HOCL | D0836LOH55 | 280 | 2002–2014 | |
| MAN | 14.280 HOCL | HOCL | D0836LOH51 | 280 | 2002–2014 | |
| MAN | 14.290 HOCL-NL | HOCL | D0836LFL61 | 290 | 2007– | |
| MAN | 15.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 15.240 | TGM I | D0836LFL50 | 240 | 2005–2022 | |
| MAN | 15.240 | TGM I | D0836LFL40 | 240 | 2005–2022 | |
| MAN | 15.250 | TGM I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 15.250 | TGM I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 15.250 | TGM I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 15.250 | TGM I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 15.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 15.280 | TGM I | D0836LFL41 | 280 | 2005–2022 | |
| MAN | 15.280 | TGM I | D0836LFL51 | 280 | 2005–2022 | |
| MAN | 15.290 | TGM I | D0836LFL67 | 290 | 2005–2022 | |
| MAN | 15.290 | TGM I | D0836LFL70 | 290 | 2008–2022 | |
| MAN | 15.290 | TGM I | D0836LFL64 | 290 | 2005–2022 | |
| MAN | 15.290 | TGM I | D0836LFL76 | 290 | 2008–2022 | |
| MAN | 15.320 | TGM I | D0836LFL81 | 320 | 2017–2022 | |
| MAN | 15.320 | TGM I | D0836LFL94 | 320 | 2017–2022 | |
| MAN | 15.320 | TGM I | D0836LFL88 | 320 | 2017–2022 | |
| MAN | 15.320 | TGM I | D0836LFLAP | 320 | 2017–2022 | |
| MAN | 15.330 | TGM I | D0836LFL44 | 326 | 2005–2022 | |
| MAN | 15.330 | TGM I | D0836LFL55 | 326 | 2005–2022 | |
| MAN | 15.340 | TGM I | D0836LFL68 | 340 | 2005–2022 | |
| MAN | 15.340 | TGM I | D0836LFL77 | 341 | 2012–2022 | |
| MAN | 15.340 | TGM I | D0836LFL71 | 340 | 2008–2022 | |
| MAN | 15.340 | TGM I | D0836LFL65 | 340 | 2005–2022 | |
| MAN | 16.240 | TGM I | D0836LFL40 | 239 | 2005–2022 | |
| MAN | 16.240 | TGM I | D0836LFL53 | 239 | 2005–2022 | |
| MAN | 16.240 | TGM I | D0836LFL50 | 239 | 2005–2022 | |
| MAN | 16.250 | TGM I | D0836LFLAN | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL60 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL66 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFLAA | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL63 | 250 | 2008–2022 | |
| MAN | 16.250 | TGM I | D0836LFL86 | 250 | 2008–2022 | |
| MAN | 16.280 | TGM I | D0836LFL51 | 280 | 2005–2022 | |
| MAN | 16.280 | TGM I | D0836LFL41 | 280 | 2005–2022 | |
| MAN | 16.280 | TGM I | D0836LFL54 | 280 | 2005–2022 | |
| MAN | 16.290 | TGM I | D0836LFL76 | 290 | 2008–2022 | |
| MAN | 16.290 | TGM I | D0836LFL64 | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFLAO | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFL87 | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFL70 | 290 | 2008–2022 | |
| MAN | 16.290 | TGM I | D0836LFL61 | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFLAI | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFL67 | 290 | 2008–2023 | |
| MAN | 16.290 | TGM I | D0836LFLAB | 290 | 2008–2023 | |
| MAN | 18.220 HOCL/R-NL, HOCL/SKD(SL) | HOCL | D0836LOH03 | 220-230 | 1998–2001 | |
| MAN | 18.220 HOCL/R-NL, HOCL/SKD(SL) | HOCL | D0826LOH03 | 220-230 | 1998–2001 | |
| MAN | 18.220 HOCL/R-NL, HOCL/SKD(SL) | HOCL | D0826LOH05 | 220-230 | 1998–2001 | |
| MAN | 18.220 HOCL/R-NL, HOCL/SKD(SL) | HOCL | D0826LOH17 | 220-230 | 1998–2001 | |
| MAN | 18.220 HOCL/R-NL, HOCL/SKD(SL) | HOCL | D0826LOH04 | 220-230 | 1998–2001 | |
| MAN | 18.220 HOCL/R-NL, HOCL/SKD(SL) | HOCL | D0826LOH15 | 220-230 | 1998–2001 | |
| MAN | 18.240 | TGM I | D0836LFL53 | 240 | 2005–2022 | |
| MAN | 18.240 | TGM I | D0836LFL40 | 240 | 2005–2022 | |
| MAN | 18.240 | TGM I | D0836LFL53 | 240 | 2006–2022 | |
| MAN | 18.240 | TGM I | D0836LFL40 | 240 | 2006–2022 | |
| MAN | 18.240 HOCL-NL | HOCL | D0836LOH56 | 240 | 2002–2009 | |
| MAN | 18.240 HOCL-NL | HOCL | D0836LOH52 | 240 | 2002–2009 | |
| MAN | 18.250 | TGM I | D0836LFL66 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFLAH | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL86 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL69 | 250 | 2008–2022 | |
| MAN | 18.250 | TGM I | D0836LFL63 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL75 | 250 | 2008–2022 | |
| MAN | 18.250 | TGM I | D0836LFLAA | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL79 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFLAN | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL60 | 250 | 2005–2022 | |
| MAN | 18.250 | TGM I | D0836LFL92 | 250 | 2005–2022 | |
| MAN | 18.250 HOCL-NL, HOCL-SKD(SL) | HOCL | D0836LOH61 | 250 | 2007–2014 | |
| MAN | 18.260 | HOCL | D0836LOH63 | 260 | 2007–2014 | |
| MAN | 18.260 | HOCL | D0826LOH18 | 260 | 2003–2006 |
Visar 200 av 455 fordon
