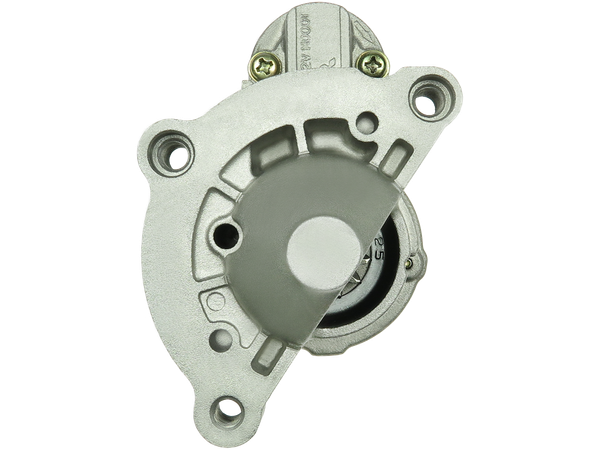

S5303PR
Startmotorer
PREMIUM LINE
699 kr
Köp nu
| EAN | 5902129091554 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: STRS103 AINDE: CGB-23736 AUTO MAGNETO: AM-2891 BOSCH: 0986021600, F000AL0104 CASCO: CST15222, CST15222AS, CST15222ES, CST15222GS, CST15222OS, CST15222RS, CST35141, CST35141AS, CST35141ES, CST35141GS, CST35141OS, CST35141RS CEVAM: 3882 DELCO: 8000266, DRS3736, DS4846, RAS34847 EAI: 11920 ELECTROLOG: STR5191 ELSTOCK: 25-3152 ERA: 220455, 220660 FIAT: 71719607, 9625168580, 9625168680, 9625382580, K9625168680 GHIBAUDI: SG0532 HC PARTS: CS1244 HELLA: 8EA012526-721, 8EA737915-001 HERTH+BUSS: 42021600 KRAUF: STD1244, STV1244 KUHNER: 101244, 101244M, 101277, 101277M LUCAS: LRS01625, LRS1625 MAGNETI MARELLI: 063523622010, MRS80109, MSN3622 MITSUBISHI: M000T82081, M000T82081AM, M000T82081ZE, M000T82081ZZ9, M000T85381, M0T82081, M0T82081AM, M0T82081ZE, M0T82081ZZ9, M0T85381 PEUGEOT: 5802CW, 5802V7, 5802W1, 5802W3, 96251686, 9625169780, 9631520480, 9656317680 POWERMAX: 88212813 PRESTOLITE: 20513014, S1090R PSH: 220.517.123, S131.824, S148.921 REAL: 20437141, 20479222 ROLLCO: STM1051 SANDO: 6015222, 6035141 SIDAT: S12MH0344, S12MH0344A2, S12VA0238A2 SIOM: MAV371400, MAV371410 STARDAX: STX200033, STX200326, STX200516, STX200516R, STX200575, STX200575R VALEO: D6RA74 WAI / TRANSPO: 32625N WOODAUTO: MITM0T82081, STR54057 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.10 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 64.00 |
| B-storlek [ mm ] | -6.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal kuggar (passar in) [ qty. ] | 9, 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 194.00 |
| O.1 [ mm ] | 120.00 |
| O.2 [ mm ] | 85.00 |
| O.3 [ mm ] | 85.00 |
| C.1 [ mm ] | M10x1.5 |
| C.2 [ mm ] | M10x1.5 |
| C.3 [ mm ] | M10x1.5 |
Passar i 128 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CITROËN | 1.8 16V | C5 II (RC_) | 6FY(EW7A) | 125 | Petrol | 2005–2008 |
| CITROËN | 1.8 16V | XSARA PICASSO (N68) | 6FZ(EW7J4) | 115 | Petrol | 2000–2005 |
| CITROËN | 1.8 16V (DC6FZB, DC6FZE) | C5 I (DC_) | 6FZ(EW7J4) | 115 | Petrol | 2001–2004 |
| CITROËN | 1.8 16V (DE6FZB, DE6FZE) | C5 I Break (DE_) | 6FZ(EW7J4) | 115 | Petrol | 2001–2004 |
| CITROËN | 1.8 16V (RC6FZB) | C5 II (RC_) | 6FZ(EW7J4) | 116 | Petrol | 2004–2005 |
| CITROËN | 1.8 16V (RD6FXC) | C5 III (RD_) | 6FY(EW7A) | 125 | Petrol | 2008–2010 |
| CITROËN | 1.8 16V (RE6FYB) | C5 II Break (RE_) | 6FY(EW7A) | 125 | Petrol | 2005–2008 |
| CITROËN | 1.8 16V (RE6FZB) | C5 II Break (RE_) | 6FZ(EW7J4) | 116 | Petrol | 2004–2005 |
| CITROËN | 1.8 16V (RE6FZB) | C5 II Estate Van (RE_) | 6FZ(EW7J4) | 116 | Petrol | 2004–2005 |
| CITROËN | 1.8 Bifuel | C4 PICASSO I MPV (UD_) | 6FY(EW7A) | 125 | Petrol/Ethanol | 2009–2012 |
| CITROËN | 1.8 i 16V | C4 GRAND PICASSO I (UA_) | 6FY(EW7A) | 125 | Petrol | 2006–2010 |
| CITROËN | 1.8 i 16V | C4 PICASSO I MPV (UD_) | 6FY(EW7A) | 125 | Petrol | 2007–2011 |
| CITROËN | 1.8 i 16V (RW6FYC) | C5 III Break (RW_) | 6FY(EW7A) | 125 | Petrol | 2008–2010 |
| CITROËN | 2.0 | C8 (EA_, EB_) | RFN(EW10J4) | 136 | Petrol | 2002– |
| CITROËN | 2.0 | JUMPY I (U6U_) | RFN(EW10J4) | 136 | Petrol | 2000–2006 |
| CITROËN | 2.0 | JUMPY I Platform/Chassis (BU_, BV_, BW_, BX_) | RFN(EW10J4) | 136 | Petrol | 2003–2006 |
| CITROËN | 2.0 | XSARA PICASSO (N68) | RFN(EW10J4) | 120 | Petrol | 2004–2004 |
| CITROËN | 2.0 (EBRFJC) | C8 Van (EA_, EB_) | RFJ(EW10A) | 140 | Petrol | 2004–2011 |
| CITROËN | 2.0 (EBRFNC, EBRFNE) | C8 Van (EA_, EB_) | RFN(EW10J4) | 136 | Petrol | 2003–2004 |
| CITROËN | 2.0 16V | C4 Coupe (LA_) | RFN(EW10J4) | 136 | Petrol | 2004–2007 |
| CITROËN | 2.0 16V | C4 Coupe (LA_) | RFK(EW10J4S) | 177 | Petrol | 2004–2010 |
| CITROËN | 2.0 16V | C4 I (LC_) | RFJ(EW10A) | 143 | Petrol | 2006–2009 |
| CITROËN | 2.0 16V | C4 I (LC_) | RFN(EW10J4) | 136 | Petrol | 2004–2007 |
| CITROËN | 2.0 16V | C4 I (LC_) | RFJ(EW10A) | 140 | Petrol | 2004–2011 |
| CITROËN | 2.0 16V | C4 I (LC_) | RFK(EW10J4S) | 177 | Petrol | 2004–2008 |
| CITROËN | 2.0 16V | C8 (EA_, EB_) | RFJ(EW10A) | 140 | Petrol | 2005– |
| CITROËN | 2.0 16V | EVASION MPV (22, U6) | RFN(EW10J4) | 136 | Petrol | 2000–2002 |
| CITROËN | 2.0 16V | XSARA (N1) | RFN(EW10J4) | 136 | Petrol | 2000–2005 |
| CITROËN | 2.0 16V | XSARA Break (N2) | RFN(EW10J4) | 136 | Petrol | 2000–2005 |
| CITROËN | 2.0 16V | XSARA Coupe (N0) | RFN(EW10J4) | 136 | Petrol | 2000–2005 |
| CITROËN | 2.0 16V | XSARA PICASSO (N68) | RFN(EW10J4) | 136 | Petrol | 2003–2012 |
| CITROËN | 2.0 16V | XSARA PICASSO (N68) | RFN(EW10J4) | 138 | Petrol | 1999–2011 |
| CITROËN | 2.0 16V (DCRFNC, DCRFNF) | C5 I (DC_) | RFN(EW10J4) | 136 | Petrol | 2001–2004 |
| CITROËN | 2.0 16V (DERFNF, DERFNC, RERFNC) | C5 I Break (DE_) | RFN(EW10J4) | 136 | Petrol | 2001–2004 |
| CITROËN | 2.0 16V (RCRFJB, RCRFJC) | C5 II (RC_) | RFJ(EW10A) | 140 | Petrol | 2004–2008 |
| CITROËN | 2.0 16V (RDRFJC, RDRFJF) | C5 III (RD_) | RFJ(EW10A) | 140 | Petrol | 2008–2014 |
| CITROËN | 2.0 16V (RERFJB, RERFJC) | C5 II Break (RE_) | RFJ(EW10A) | 140 | Petrol | 2004–2008 |
| CITROËN | 2.0 16V (RERFJB, RERFJC) | C5 II Estate Van (RE_) | RFJ(EW10A) | 140 | Petrol | 2004–2008 |
| CITROËN | 2.0 16V BioFlex | C5 III Break (RW_) | RFJ(EW10A) | 140 | Petrol/Ethanol | 2008–2010 |
| CITROËN | 2.0 16V BioFlex (RDRFJF) | C5 III (RD_) | RFJ(EW10A) | 140 | Petrol/Ethanol | 2008–2012 |
| CITROËN | 2.0 16V HPi (DCRLZB) | C5 I (DC_) | RLZ(EW10D) | 140 | Petrol | 2001–2004 |
| CITROËN | 2.0 16V HPi (DERLZB) | C5 I Break (DE_) | RLZ(EW10D) | 140 | Petrol | 2001–2004 |
| CITROËN | 2.0 I (X_RFH) | JUMPY II Platform/Chassis | 140 | Petrol | 2006–2016 | |
| CITROËN | 2.0 VTR | C4 Coupe (LA_) | RFJ(EW10A) | 140 | Petrol | 2006–2007 |
| CITROËN | 2.0 i | JUMPY II (VF7) | RFJ(EW10A) | 140 | Petrol | 2007–2016 |
| CITROËN | 2.0 i | JUMPY II (VF7) | RFH(EW10A) | 140 | Petrol | 2007–2016 |
| CITROËN | 2.0 i | JUMPY II Van | RFH(EW10A) | 140 | Petrol | 2007–2016 |
| CITROËN | 2.0 i 16V | C4 GRAND PICASSO I (UA_) | RFJ(EW10A) | 140 | Petrol | 2006–2013 |
| CITROËN | 2.0 i 16V | C4 PICASSO I MPV (UD_) | RFJ(EW10A) | 140 | Petrol | 2007–2013 |
| CITROËN | 2.0 i 16V | JUMPY I (U6U_) | RFN(EW10J4) | 138 | Petrol | 2000–2006 |
| CITROËN | 2.0 i 16V | JUMPY I Van (BS_, BT_, BY_, BZ_) | RFN(EW10J4) | 138 | Petrol | 2000–2006 |
| CITROËN | 2.0 i 16V (RWRFJC, RWRFJF) | C5 III Break (RW_) | RFJ(EW10A) | 140 | Petrol | 2008–2014 |
| CITROËN | 2.2 | C8 (EA_, EB_) | 3FZ(EW12J4) | 158 | Petrol | 2002– |
| CITROËN | 2.2 (EB3FZC) | C8 Van (EA_, EB_) | 3FZ(EW12J4) | 158 | Petrol | 2003–2007 |
| FIAT | 2.0 | SCUDO Van (220_) | RFN(EW10J4) | 136 | Petrol | 2000–2006 |
| FIAT | 2.0 (179BXA11, 179BXA1A) | ULYSSE (179_) | RFN(EW10J4) | 136 | Petrol | 2002–2011 |
| FIAT | 2.0 16V | SCUDO Bus (220_) | RFN(EW10J4) | 136 | Petrol | 2000–2006 |
| FIAT | 2.0 16V (220AQ5) | ULYSSE (220_) | RFN(EW10J4) | 136 | Petrol | 2000–2002 |
| LANCIA | 2.0 (179AXA11, 179AXA1A) | PHEDRA (179_) | RFN(EW10J4) | 136 | Petrol | 2002–2010 |
| LANCIA | 2.0 16V (220AQ5, 220AQ4) | ZETA (22_) | RFN | 136 | Petrol | 2000–2002 |
| PEUGEOT | 307 Break (3E) | RFK(EW10J4S) | 177 | Petrol | 2005–2008 | |
| PEUGEOT | 1.8 | 407 SW (6E_, 6D_) | 6FZ(EW7J4) | 116 | Petrol | 2004–2005 |
| PEUGEOT | 1.8 (6D6FZB) | 407 (6D_) | 6FZ(EW7J4) | 116 | Petrol | 2004–2005 |
| PEUGEOT | 1.8 16V | 406 (8B) | 6FZ(EW7J4) | 116 | Petrol | 2000–2004 |
| PEUGEOT | 1.8 16V | 406 Break (8E/F) | 6FZ(EW7J4) | 116 | Petrol | 2000–2004 |
| PEUGEOT | 1.8 16V | 407 SW (6E_, 6D_) | 6FY(EW7A) | 125 | Petrol | 2005–2010 |
| PEUGEOT | 1.8 16V (6D6FYC) | 407 (6D_) | 6FY(EW7A) | 125 | Petrol | 2005–2010 |
| PEUGEOT | 1.8 BiFuel | 406 (8B) | 6FZ(EW7J4) | 116 | Petrol/Liquified Petroleum Gas (LPG) | 2000–2004 |
| PEUGEOT | 1.8 BiFuel | 406 Break (8E/F) | 6FZ(EW7J4) | 116 | Petrol/Liquified Petroleum Gas (LPG) | 2000–2004 |
| PEUGEOT | 2.0 | 307 Break (3E) | RFN(EW10J4) | 136 | Petrol | 2002–2005 |
| PEUGEOT | 2.0 | 308 SW I (4E_, 4H_) | RFJ(EW10A) | 140 | Petrol | 2008–2011 |
| PEUGEOT | 2.0 | 407 SW (6E_, 6D_) | RFN(EW10J4) | 136 | Petrol | 2004–2005 |
| PEUGEOT | 2.0 | 607 (9D, 9U) | RFN(EW10J4) | 136 | Petrol | 2000–2005 |
| PEUGEOT | 2.0 | 807 (EB_) | RFN(EW10J4) | 136 | Petrol | 2002– |
| PEUGEOT | 2.0 | EXPERT (224_) | RFN(EW10J4) | 136 | Petrol | 2000–2006 |
| PEUGEOT | 2.0 | EXPERT Van (222) | RFN(EW10J4) | 136 | Petrol | 2002–2006 |
| PEUGEOT | 2.0 (6DRFNB, 6DRFNE) | 407 (6D_) | RFN(EW10J4) | 136 | Petrol | 2004–2005 |
| PEUGEOT | 2.0 (AFRFNC) | 806 Van (AF_) | RFN(EW10J4) | 136 | Petrol | 2000–2003 |
| PEUGEOT | 2.0 16V | 206 SW (2E/K) | RFN(EW10J4) | 136 | Petrol | 2002–2007 |
| PEUGEOT | 2.0 16V | 307 (3A/C) | RFN(EW10J4) | 136 | Petrol | 2000–2005 |
| PEUGEOT | 2.0 16V | 307 (3A/C) | RFJ(EW10A) | 140 | Petrol | 2005–2007 |
| PEUGEOT | 2.0 16V | 307 (3A/C) | RFK(EW10J4S) | 177 | Petrol | 2005–2007 |
| PEUGEOT | 2.0 16V | 307 Break (3E) | RFJ(EW10A) | 140 | Petrol | 2005–2008 |
| PEUGEOT | 2.0 16V | 307 CC (3B) | RFN(EW10J4) | 136 | Petrol | 2003–2005 |
| PEUGEOT | 2.0 16V | 307 CC (3B) | RFJ(EW10A) | 140 | Petrol | 2004–2009 |
| PEUGEOT | 2.0 16V | 307 CC (3B) | RFK(EW10J4S) | 177 | Petrol | 2003–2009 |
| PEUGEOT | 2.0 16V | 307 SW (3H) | RFN(EW10J4) | 136 | Petrol | 2002–2005 |
| PEUGEOT | 2.0 16V | 307 SW (3H) | RFJ(EW10A) | 140 | Petrol | 2005–2008 |
| PEUGEOT | 2.0 16V | 406 (8B) | RFN(EW10J4) | 136 | Petrol | 2000–2004 |
| PEUGEOT | 2.0 16V | 406 (8B) | RFR(EW10J4) | 135 | Petrol | 1999–2000 |
| PEUGEOT | 2.0 16V | 406 Break (8E/F) | RFR(EW10J4) | 135 | Petrol | 1999–2000 |
| PEUGEOT | 2.0 16V | 406 Break (8E/F) | RFN(EW10J4) | 136 | Petrol | 2000–2004 |
| PEUGEOT | 2.0 16V | 406 Coupe (8C) | RFN(EW10J4) | 136 | Petrol | 2000–2004 |
| PEUGEOT | 2.0 16V | 406 Coupe (8C) | RFR(EW10J4) | 135 | Petrol | 1999–2000 |
| PEUGEOT | 2.0 16V | 406 Coupe (8C) | RFV(XU10J4R) | 136 | Petrol | 2000–2004 |
| PEUGEOT | 2.0 16V | 407 SW (6E_, 6D_) | RFJ(EW10A) | 140 | Petrol | 2005–2010 |
| PEUGEOT | 2.0 16V | 806 (221) | RFN(EW10J4) | 136 | Petrol | 2000–2002 |
| PEUGEOT | 2.0 16V | 807 (EB_) | RFJ(EW10A) | 140 | Petrol | 2005– |
| PEUGEOT | 2.0 16V | EXPERT TEPEE (VF3X_) | RFJ(EW10A) | 140 | Petrol | 2007–2016 |
| PEUGEOT | 2.0 16V | EXPERT TEPEE (VF3X_) | RFH(EW10A) | 140 | Petrol | 2007–2016 |
| PEUGEOT | 2.0 16V | EXPERT Van (VF3A_, VF3U_, VF3X_) | RFJ(EW10A) | 140 | Petrol | 2007– |
| PEUGEOT | 2.0 16V | EXPERT Van (VF3A_, VF3U_, VF3X_) | RFH(EW10A) | 140 | Petrol | 2007– |
| PEUGEOT | 2.0 16V (6DRFJC, 6DRFJE, 6DRFJF) | 407 (6D_) | RFJ(EW10A) | 140 | Petrol | 2005–2010 |
| PEUGEOT | 2.0 16V (X_RFH) | EXPERT Platform/Chassis | 140 | Petrol | 2007–2016 | |
| PEUGEOT | 2.0 16V HPi | 406 (8B) | RLZ(EW10D) | 140 | Petrol | 2001–2004 |
| PEUGEOT | 2.0 16V HPi | 406 Break (8E/F) | RLZ(EW10D) | 140 | Petrol | 2001–2004 |
| PEUGEOT | 2.0 Bioflex | 308 I (4A_, 4C_) | RFJ(EW10A) | 140 | Petrol/Ethanol | 2008–2012 |
| PEUGEOT | 2.0 Bioflex | 407 SW (6E_, 6D_) | RFJ(EW10A) | 140 | Petrol/Ethanol | 2008–2010 |
| PEUGEOT | 2.0 Bioflex (6DRFJB) | 407 (6D_) | RFJ(EW10A) | 140 | Petrol/Ethanol | 2007–2011 |
| PEUGEOT | 2.0 CVVT | 308 CC (4B_) | RFJ(EW10A) | 140 | Petrol | 2009–2014 |
| PEUGEOT | 2.0 Flex | 407 SW (6E_, 6D_) | RFJ(EW10A) | 140 | Petrol/Ethanol | 2005–2011 |
| PEUGEOT | 2.0 Flex (6DRFJB) | 407 (6D_) | RFJ(EW10A) | 140 | Petrol/Ethanol | 2005–2011 |
| PEUGEOT | 2.0 RC | 206 Hatchback (2A/C) | RFK(EW10J4S) | 177 | Petrol | 2003–2007 |
| PEUGEOT | 2.0 S16 | 206 CC (2D) | RFN(EW10J4) | 136 | Petrol | 2000–2007 |
| PEUGEOT | 2.0 S16 | 206 Hatchback (2A/C) | RFN(EW10J4) | 136 | Petrol | 1999–2007 |
| PEUGEOT | 2.0 S16 | 206 Hatchback (2A/C) | RFR(EW10J4) | 135 | Petrol | 1999–2000 |
| PEUGEOT | 2.2 | 406 (8B) | 3FZ(EW12J4) | 158 | Petrol | 2000–2004 |
| PEUGEOT | 2.2 | 406 Break (8E/F) | 3FZ(EW12J4) | 158 | Petrol | 2000–2004 |
| PEUGEOT | 2.2 | 406 Coupe (8C) | 3FZ(EW12J4) | 158 | Petrol | 2002–2004 |
| PEUGEOT | 2.2 | 407 SW (6E_, 6D_) | 3FZ(EW12J4) | 158 | Petrol | 2004–2005 |
| PEUGEOT | 2.2 | 807 (EB_) | 3FZ(EW12J4) | 158 | Petrol | 2002– |
| PEUGEOT | 2.2 (6D3FZE, 6D3FZH) | 407 (6D_) | 3FZ(EW12J4) | 158 | Petrol | 2004–2006 |
| PEUGEOT | 2.2 16V | 407 Coupe (6C_) | 3FY(EW12J4) | 163 | Petrol | 2005– |
| PEUGEOT | 2.2 16V | 407 SW (6E_, 6D_) | 3FY(EW12J4) | 163 | Petrol | 2005–2010 |
| PEUGEOT | 2.2 16V | 607 (9D, 9U) | 3FY(EW12J4) | 163 | Petrol | 2005–2010 |
| PEUGEOT | 2.2 16V | 607 (9D, 9U) | 3FZ(EW12J4) | 158 | Petrol | 2000–2005 |
| PEUGEOT | 2.2 16V (6D3FYH, 6D3FYE) | 407 (6D_) | 3FY(EW12J4) | 163 | Petrol | 2005–2010 |
| PEUGEOT | 3.0 V6 | 807 (EB_) | XFX(ES9J4S) | 204 | Petrol | 2002– |
