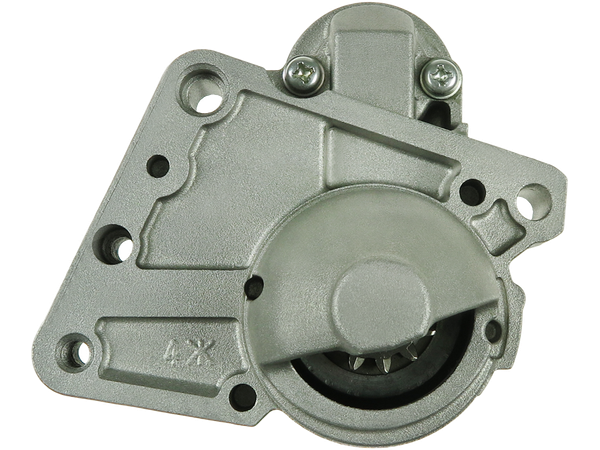

S5306PR
Startmotorer
PREMIUM LINE
591 kr
Köp nu
| EAN | 5902129092865 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: STRL079 AINDE: CGB-23903 APEC: ASM1498 AUTOELECTRO: AEU1260 BOSCH: 0986021651 CARGO: 113254, F032113254 CASCO: CST15108, CST15108AS, CST15108ES, CST15108GS, CST15108OS, CST15108RS, CST35247, CST35247AS, CST35247ES, CST35247GS, CST35247OS, CST35247RS CEVAM: 3006 DELCO: DRS3903, DS5013, RAS34014 ELECTROLOG: STR00144, STR0064, STR5535 ELSTOCK: 25-3070 ERA: 220068 FIAT: 71793771, 71794297, 9637813680, 9688512780, K9637813680 HC PARTS: CS1260 HERTH+BUSS: 42455982 KUHNER: 101260, 101260M, 101260R, 101260V, 101329, 101329M LUCAS: LRS01569, LRS1569 MAGNETI MARELLI: 063721260010, 944280801790, MQS1260 MITSUBISHI: M000T22472, M000T93581, M000T93581AM, M000T93582, M000T93582AM, M000T93582ZZ9, M0T22472, M0T93581, M0T93581AM, M0T93582, M0T93582AM, M0T93582ZZ9 NAPA: NPANSM1498 OPEL: 3640319, 95526662 PEUGEOT: 00005802AZ, 1213257, 1638115880, 5802-Y5, 5802-Y6, 5802A2, 5802AZ, 5802FG, 5802FH, 5802FP, 5802M4, 5802Y4, 5802Y5, 5802Y6, 9640825280, 9646679980, 9663528880, 9664016980, 9688268480, 9688268580, 968826858000, 9801667580, 980166758000 PSH: 220.519.114, S131.837, S144.314, S148.944 REAL: 20479801 ROLLCO: STM926 SANDO: 6015108, 6015215.1, 6035247 SIOM: MAV171080 STARDAX: STX200013, STX200013R, STX200017, STX200017R, STX200099, STX200099R, STX200354, STX200452 TOYOTA: 28100-YV010, 28100-YV011, 28100YV011 VALEO: 438133, 455982, 726062, TS14-62, TS14E110 WAI / TRANSPO: 32570N WOODAUTO: MITM0T93582, STR54045, VAL438133 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 65.50 |
| B-storlek [ mm ] | 14.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 4 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 194.00 |
| O.1 [ mm ] | 124.00 |
| O.2 [ mm ] | 30.00 |
| O.3 [ mm ] | 45.50 |
| O.4 [ mm ] | 92.00 |
| C.1 [ mm ] | 9.50 |
| C.2 [ mm ] | M8x1.25 |
| C.3 [ mm ] | M8x1.25 |
| C.4 [ mm ] | 9.50 |
Passar i 483 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CITROËN | 1.4 16V HDi | C3 I (FC_, FN_) | 8HY(DV4TED4) | 90 | Diesel | 2002–2008 |
| CITROËN | 1.4 HDi | C1 (PM_, PN_) | 8HT(DV4TD) | 54 | Diesel | 2005–2014 |
| CITROËN | 1.4 HDi | C2 (JM_) | 8HX(DV4TD) | 69 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi | C2 (JM_) | 8HX(DV4TD) | 68 | Diesel | 2003–2009 |
| CITROËN | 1.4 HDi | C2 (JM_) | 8HZ(DV4TD) | 68 | Diesel | 2003–2009 |
| CITROËN | 1.4 HDi | C2 ENTERPRISE (JG_) | 8HX(DV4TD) | 68 | Diesel | 2006–2009 |
| CITROËN | 1.4 HDi | C2 ENTERPRISE (JG_) | 8HZ(DV4TD) | 69 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi | C3 I (FC_, FN_) | 8HX(DV4TD) | 75 | Diesel | 2005–2009 |
| CITROËN | 1.4 HDi | C3 I (FC_, FN_) | 8HZ(DV4TD) | 68 | Diesel | 2002–2009 |
| CITROËN | 1.4 HDi | C3 I (FC_, FN_) | 8HX(DV4TD) | 68 | Diesel | 2002–2009 |
| CITROËN | 1.4 HDi | C3 II Hatchback Van (SC_) | 8HR(DV4C) | 68 | Diesel | 2010–2016 |
| CITROËN | 1.4 HDi | C3 Pluriel (HB_) | 8HZ(DV4TD) | 68 | Diesel | 2004– |
| CITROËN | 1.4 HDi | C3 Pluriel (HB_) | 8HX(DV4TD) | 68 | Diesel | 2004– |
| CITROËN | 1.4 HDi | NEMO Box Body/MPV (AA_) | 8HS(DV4TED) | 68 | Diesel | 2008– |
| CITROËN | 1.4 HDi | NEMO MPV | 8HS(DV4TED) | 68 | Diesel | 2009– |
| CITROËN | 1.4 HDi | XSARA (N1) | 8HX(DV4TD) | 68 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi | XSARA Break (N2) | 8HX(DV4TD) | 68 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi | XSARA Coupe (N0) | 8HX(DV4TD) | 68 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi 70 (SA8HP4) | DS3 (SA_) | 8HR(DV4C) | 68 | Diesel | 2010–2015 |
| CITROËN | 1.4 HDi 70 (SA8HP4) | DS3 (SA_) | 8HP(DV4C) | 68 | Diesel | 2010–2015 |
| CITROËN | 1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4) | C3 II (SC_) | 8HR(DV4C) | 68 | Diesel | 2009–2016 |
| CITROËN | 1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4) | C3 II (SC_) | 8HP(DV4C) | 68 | Diesel | 2009–2016 |
| CITROËN | 1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4) | C3 II (SC_) | 8HZ(DV4TD) | 68 | Diesel | 2009–2016 |
| CITROËN | 1.5 BlueHDi 100 | BERLINGO (ER_, EC_) | YHT(DV5RCF) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | BERLINGO (ER_, EC_) | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | BERLINGO Box Body/MPV (K9) | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | BERLINGO Box Body/MPV (K9) | YHT(DV5RCF) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | C-ELYSEE (DD_) | YHT(DV5RCF) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | C-ELYSEE (DD_) | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | JUMPY III Bus (V_) | YHR(DV5RUCd) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | JUMPY III Van (V_) | YHR(DV5RUCd) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | SPACETOURER Bus (V_) | YHR(DV5RUCd) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 (SXYHYP, SXYHTU) | C3 III (SX) | YHT(DV5RCF) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 (SXYHYP, SXYHTU) | C3 III (SX) | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 120 | JUMPY III Bus (V_) | YHV(DV5RUC) | 120 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 120 | SPACETOURER Bus (V_) | YHV(DV5RUC) | 120 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 130 | BERLINGO Box Body/MPV (K9) | YHZ(DV5RC) | 131 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 130 (ECYHZJ, ECYHZR) | BERLINGO (ER_, EC_) | YHZ(DV5RC) | 131 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 130 4x4 | BERLINGO Box Body/MPV (K9) | YHZ(DV5RC) | 131 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 75 | BERLINGO (ER_, EC_) | YHW(DV5RE) | 76 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 75 | BERLINGO Box Body/MPV (K9) | YHW(DV5RE) | 75 | Diesel | 2019– |
| CITROËN | 1.6 16V HDi | C3 I (FC_, FN_) | 9HZ(DV6TED4) | 109 | Diesel | 2005–2009 |
| CITROËN | 1.6 16V HDi | C3 I (FC_, FN_) | 9HX(DV6ATED4) | 90 | Diesel | 2005–2009 |
| CITROËN | 1.6 BlueHDi | C3 II Hatchback Van (SC_) | BHW(DV6FE) | 75 | Diesel | 2015–2016 |
| CITROËN | 1.6 BlueHDi | C4 II Hatchback Van (NC_) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 100 | BERLINGO Box Body/MPV (B9) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 100 | BERLINGO Box Body/MPV (K9) | BHY(DV6FD) | 99 | Diesel | 2018– |
| CITROËN | 1.6 BlueHDi 100 | BERLINGO MULTISPACE (B9) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 100 | BERLINGO Platform/Chassis (B9) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 100 | C-ELYSEE (DD_) | BHY(DV6FD) | 99 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 100 | C3 II (SC_) | BHY(DV6FD) | 99 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 100 | C3 III (SX) | BHY(DV6FD) | 99 | Diesel | 2016–2018 |
| CITROËN | 1.6 BlueHDi 100 | C3 PICASSO (SH_) | BHY(DV6FD) | 99 | Diesel | 2015–2017 |
| CITROËN | 1.6 BlueHDi 100 | C4 CACTUS | BHY(DV6FD) | 99 | Diesel | 2014–2017 |
| CITROËN | 1.6 BlueHDi 100 | C4 GRAND PICASSO II (DA_, DE_) | BHY(DV6FD) | 99 | Diesel | 2015–2016 |
| CITROËN | 1.6 BlueHDi 100 | C4 II (NC_) | BHY(DV6FD) | 99 | Diesel | 2014–2018 |
| CITROËN | 1.6 BlueHDi 100 | C4 PICASSO II | BHY(DV6FD) | 99 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 100 | C4 SPACETOURER (3D_) | BHY(DV6FD) | 99 | Diesel | 2018–2018 |
| CITROËN | 1.6 BlueHDi 100 | DS3 (SA_) | BHY(DV6FD) | 99 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 100 | DS3 Convertible | BHY(DV6FD) | 99 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 100 | GRAND C4 SPACETOURER (3A_, 3E_) | BHY(DV6FD) | 99 | Diesel | 2018–2018 |
| CITROËN | 1.6 BlueHDi 100 4x4 | BERLINGO Box Body/MPV (B9) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 115 | DS3 Convertible | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 BlueHDi 115 | DS4 (NX_) | BHX(DV6FC) | 115 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 115 | JUMPY III Bus (V_) | BHX(DV6FCU) | 115 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 115 | JUMPY III Van (V_) | BHX(DV6FCU) | 115 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 115 | SPACETOURER Bus (V_) | BHX(DV6FCU) | 115 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 120 | BERLINGO Box Body/MPV (B9) | BHZ(DV6FC) | 120 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 120 | BERLINGO MULTISPACE (B9) | BHZ(DV6FC) | 120 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 120 | C4 GRAND PICASSO II (DA_, DE_) | BHZ(DV6FC) | 120 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 120 | C4 PICASSO II | BHZ(DV6FC) | 120 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 120 | C4 SPACETOURER (3D_) | BHZ(DV6FC) | 120 | Diesel | 2018–2018 |
| CITROËN | 1.6 BlueHDi 120 | DS3 (SA_) | BHZ(DV6FC) | 120 | Diesel | 2013–2015 |
| CITROËN | 1.6 BlueHDi 120 | DS3 Convertible | BHZ(DV6FC) | 120 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 120 | DS4 (NX_) | BHZ(DV6FC) | 120 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 120 | DS5 | BHZ(DV6FC) | 120 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 120 | GRAND C4 SPACETOURER (3A_, 3E_) | BHZ(DV6FC) | 120 | Diesel | 2018–2018 |
| CITROËN | 1.6 BlueHDi 75 | BERLINGO Box Body/MPV (K9) | BHW(DV6FE) | 75 | Diesel | 2018– |
| CITROËN | 1.6 BlueHDi 75 | C3 II (SC_) | BHW(DV6FE) | 75 | Diesel | 2015–2016 |
| CITROËN | 1.6 BlueHDi 75 | C3 II (SC_) | 9HK(DV6ETEDM) | 75 | Diesel | 2015–2016 |
| CITROËN | 1.6 BlueHDi 75 | C3 III (SX) | BHW(DV6FE) | 75 | Diesel | 2016–2018 |
| CITROËN | 1.6 BlueHDi 90 | JUMPY III Van (V_) | 9HF(DV6DU) | 90 | Diesel | 2018– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Bus (V_) | BHS(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Platform/Chassis (V_) | BHV(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Platform/Chassis (V_) | BHS(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Van (V_) | BHV(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Van (V_) | BHS(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | SPACETOURER Bus (V_) | BHS(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | SPACETOURER Bus (V_) | BHV(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 HDI 75 (MB9HW) | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | DV6B | 75 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 75 (MB9HW) | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | 9HW(DV6BTED4) | 75 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 75 (MF9HW, GJ9HWC, GF9HWC, GN9HWC) | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | DV6B | 75 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 75 (MF9HW, GJ9HWC, GF9HWC, GN9HWC) | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | 9HW(DV6BTED4) | 75 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 90 | C3 PICASSO (SH_) | 9HP(DV6DTED) | 92 | Diesel | 2010–2015 |
| CITROËN | 1.6 HDI 90 (MB9HX, MC9HX) | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | 9HX(DV6ATED4) | 90 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 90 (MF9HX) | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | 9HX(DV6ATED4) | 90 | Diesel | 2005–2008 |
| CITROËN | 1.6 HDI 92 | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | 9HP(DV6DTED) | 92 | Diesel | 2009–2010 |
| CITROËN | 1.6 HDI 92 | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | 9HJ(DV6DTEDM) | 92 | Diesel | 2009–2010 |
| CITROËN | 1.6 HDI 92 | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | 9HP(DV6DTED) | 92 | Diesel | 2009–2010 |
| CITROËN | 1.6 HDI 92 | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | 9HJ(DV6DTEDM) | 92 | Diesel | 2009–2010 |
| CITROËN | 1.6 HDI 92 | C-ELYSEE (DD_) | 9HP(DV6DTED) | 92 | Diesel | 2012– |
| CITROËN | 1.6 HDI 92 | C-ELYSEE (DD_) | 9HJ(DV6DTEDM) | 92 | Diesel | 2012– |
| CITROËN | 1.6 HDi | C3 II (SC_) | 9HP(DV6DTED) | 92 | Diesel | 2009–2016 |
| CITROËN | 1.6 HDi | C3 II (SC_) | 9HJ(DV6DTEDM) | 92 | Diesel | 2009–2016 |
| CITROËN | 1.6 HDi | C3 PICASSO (SH_) | 9HX(DV6ATED4) | 90 | Diesel | 2009–2015 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HV(DV6TED4B) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HX(DV6ATED4) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HV(DV6TED4BU) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HV(DV6TED4B) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HG(DV6CM) | 114 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HX(DV6ATED4) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HG(DV6CM) | 109 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HV(DV6TED4BU) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I Saloon | 9HZ(DV6TED4) | 109 | Diesel | 2006–2011 |
| CITROËN | 1.6 HDi | C4 I Saloon | 9HG(DV6CM) | 114 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi | C4 I Saloon | 9HY(DV6TED4) | 109 | Diesel | 2006–2011 |
| CITROËN | 1.6 HDi | C4 I Saloon | 9HG(DV6CM) | 109 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi | C4 II Hatchback Van (NC_) | 9HR(DV6C) | 111 | Diesel | 2009– |
| CITROËN | 1.6 HDi | C4 II Hatchback Van (NC_) | 9HP(DV6DTED) | 92 | Diesel | 2010– |
| CITROËN | 1.6 HDi | C4 II Saloon (NC_) | 9HD(DV6C) | 115 | Diesel | 2013– |
| CITROËN | 1.6 HDi | C4 II Saloon (NC_) | 9HR(DV6C) | 115 | Diesel | 2013– |
| CITROËN | 1.6 HDi | C4 PICASSO I MPV (UD_) | 9HY(DV6TED4) | 109 | Diesel | 2007–2013 |
| CITROËN | 1.6 HDi | C4 PICASSO I MPV (UD_) | 9HZ(DV6TED4) | 109 | Diesel | 2007–2013 |
| CITROËN | 1.6 HDi | DS5 | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi | XSARA PICASSO (N68) | 9HX(DV6ATED4) | 90 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDi | XSARA PICASSO (N68) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | XSARA PICASSO (N68) | 9HY(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi (RC8HZB) | C5 II (RC_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RC8HZB) | C5 II (RC_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RE9HYB, RE9HZB) | C5 II Estate Van (RE_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RE9HYB, RE9HZB) | C5 II Estate Van (RE_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RE9HZC, RE9HYB) | C5 II Break (RE_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RE9HZC, RE9HYB) | C5 II Break (RE_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi / BlueHDi 115 | C4 GRAND PICASSO II (DA_, DE_) | 9HC(DV6C) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi / BlueHDi 115 | C4 GRAND PICASSO II (DA_, DE_) | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi / BlueHDi 115 | C4 PICASSO II | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi / BlueHDi 115 | C4 PICASSO II | 9HC(DV6C) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi / BlueHDi 75 | BERLINGO Box Body/MPV (B9) | 9HN(DV6ETED) | 75 | Diesel | 2010– |
| CITROËN | 1.6 HDi / BlueHDi 75 | BERLINGO Box Body/MPV (B9) | BHW(DV6FE) | 75 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | BERLINGO Box Body/MPV (B9) | 9HL(DV6C) | 112 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | BERLINGO Box Body/MPV (B9) | 9HZ(DV6TED4) | 109 | Diesel | 2008– |
| CITROËN | 1.6 HDi 110 | BERLINGO Box Body/MPV (B9) | 9HR(DV6C) | 112 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | BERLINGO MULTISPACE (B9) | 9HL(DV6C) | 112 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | BERLINGO MULTISPACE (B9) | 9HZ(DV6TED4) | 109 | Diesel | 2008– |
| CITROËN | 1.6 HDi 110 | BERLINGO MULTISPACE (B9) | 9HR(DV6C) | 112 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | C3 II (SC_) | 9HR(DV6C) | 112 | Diesel | 2009–2016 |
| CITROËN | 1.6 HDi 110 | C4 II (NC_) | 9HR(DV6C) | 112 | Diesel | 2009– |
| CITROËN | 1.6 HDi 110 | DS4 (NX_) | 9HR(DV6C) | 112 | Diesel | 2011–2015 |
| CITROËN | 1.6 HDi 110 | DS5 | 9HR(DV6C) | 112 | Diesel | 2011–2015 |
| CITROËN | 1.6 HDi 110 (RD9HZC) | C5 III (RD_) | 9HZ(DV6TED4) | 109 | Diesel | 2008–2010 |
| CITROËN | 1.6 HDi 110 (RW9HZC) | C5 III Break (RW_) | 9HZ(DV6TED4) | 109 | Diesel | 2008–2010 |
| CITROËN | 1.6 HDi 115 | C3 II (SC_) | 9HD(DV6C) | 114 | Diesel | 2012–2016 |
| CITROËN | 1.6 HDi 115 | C4 II (NC_) | 9HD(DV6C) | 114 | Diesel | 2012– |
| CITROËN | 1.6 HDi 115 | DS3 (SA_) | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi 115 | DS3 (SA_) | 9HD(DV6C) | 114 | Diesel | 2012–2015 |
| CITROËN | 1.6 HDi 115 | DS4 (NX_) | 9HD(DV6C) | 114 | Diesel | 2012–2015 |
| CITROËN | 1.6 HDi 115 | GRAND C4 SPACETOURER (3A_, 3E_) | 9HC(DV6C) | 116 | Diesel | 2018– |
| CITROËN | 1.6 HDi 75 | BERLINGO Box Body/MPV (B9) | 9HT(DV6BTED4) | 75 | Diesel | 2008– |
| CITROËN | 1.6 HDi 75 | BERLINGO Box Body/MPV (B9) | 9HT(DV6BUTED4) | 75 | Diesel | 2008– |
| CITROËN | 1.6 HDi 75 / BlueHDi 75 | BERLINGO MULTISPACE (B9) | 9HN(DV6ETED) | 75 | Diesel | 2008– |
| CITROËN | 1.6 HDi 75 / BlueHDi 75 | BERLINGO MULTISPACE (B9) | BHW(DV6FE) | 75 | Diesel | 2008– |
| CITROËN | 1.6 HDi 75 16V | BERLINGO MULTISPACE (B9) | 9HT(DV6BTED4) | 75 | Diesel | 2008– |
| CITROËN | 1.6 HDi 75 4x4 | BERLINGO Box Body/MPV (B9) | 9HN(DV6ETED) | 75 | Diesel | 2012– |
| CITROËN | 1.6 HDi 90 | BERLINGO Box Body/MPV (B9) | 9HE(DV6DBM) | 90 | Diesel | 2010–2017 |
| CITROËN | 1.6 HDi 90 | BERLINGO Box Body/MPV (B9) | 9HP(DV6DTED) | 92 | Diesel | 2010– |
| CITROËN | 1.6 HDi 90 | BERLINGO Box Body/MPV (B9) | 9HF(DV6DTED) | 90 | Diesel | 2010–2017 |
| CITROËN | 1.6 HDi 90 | BERLINGO Box Body/MPV (B9) | 9HJ(DV6DTEDM) | 92 | Diesel | 2010– |
| CITROËN | 1.6 HDi 90 | BERLINGO MULTISPACE (B9) | 9HX(DV6ATED4) | 90 | Diesel | 2008– |
| CITROËN | 1.6 HDi 90 | BERLINGO MULTISPACE (B9) | 9HJ(DV6DTEDM) | 92 | Diesel | 2010– |
| CITROËN | 1.6 HDi 90 | BERLINGO MULTISPACE (B9) | 9HV(DV6TED4B) | 90 | Diesel | 2008– |
| CITROËN | 1.6 HDi 90 | BERLINGO MULTISPACE (B9) | 9HP(DV6DTED) | 92 | Diesel | 2010– |
| CITROËN | 1.6 HDi 90 | BERLINGO Platform/Chassis (B9) | 9HF(DV6DTED) | 90 | Diesel | 2010– |
| CITROËN | 1.6 HDi 90 | C3 II (SC_) | 9HX(DV6ATED4) | 90 | Diesel | 2009–2016 |
| CITROËN | 1.6 HDi 90 | C4 CACTUS | 9HP(DV6D) | 92 | Diesel | 2014– |
| CITROËN | 1.6 HDi 90 | C4 CACTUS | 9HJ(DV6DTEDM) | 92 | Diesel | 2014– |
| CITROËN | 1.6 HDi 90 | C4 CACTUS | 9HP(DV6DTED) | 92 | Diesel | 2014– |
| CITROËN | 1.6 HDi 90 | C4 GRAND PICASSO II (DA_, DE_) | 9HP(DV6DTED) | 92 | Diesel | 2013– |
| CITROËN | 1.6 HDi 90 | C4 II (NC_) | 9HJ(DV6DTEDM) | 92 | Diesel | 2009– |
| CITROËN | 1.6 HDi 90 | C4 II (NC_) | 9HP(DV6DTED) | 92 | Diesel | 2009– |
| CITROËN | 1.6 HDi 90 | C4 PICASSO II | 9HP(DV6DTED) | 92 | Diesel | 2013– |
| CITROËN | 1.6 HDi 90 | DS3 (SA_) | 9HP(DV6DTED) | 92 | Diesel | 2009–2015 |
| CITROËN | 1.6 HDi 90 | DS3 Convertible | 9HP(DV6DTED) | 92 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi 90 | DS4 (NX_) | 9HP(DV6DTED) | 92 | Diesel | 2011–2015 |
| CITROËN | 1.6 HDi 90 | SPACETOURER Bus (V_) | 9HF(DV6DU) | 90 | Diesel | 2018– |
| CITROËN | 1.6 HDi 90 16V | BERLINGO Box Body/MPV (B9) | 9HX(DV6AUTED4) | 90 | Diesel | 2008– |
| CITROËN | 1.6 HDi 90 16V | BERLINGO Box Body/MPV (B9) | 9HS(DV6TED4BU) | 90 | Diesel | 2008– |
| CITROËN | 1.6 HDi 90 16V | BERLINGO Platform/Chassis (B9) | 9HX(DV6ATED4) | 90 | Diesel | 2008– |
| CITROËN | 1.6 HDi 90 16V | JUMPY II (VF7) | 9HU(DV6UTED4) | 90 | Diesel | 2007–2016 |
| CITROËN | 1.6 HDi 90 16V | JUMPY II Platform/Chassis | 9HU(DV6UTED4) | 90 | Diesel | 2007–2016 |
| CITROËN | 1.6 HDi 90 16V | JUMPY II Van | 9HU(DV6UTED4) | 90 | Diesel | 2007–2016 |
| CITROËN | 1.6 HDi 90 4x4 | BERLINGO Box Body/MPV (B9) | 9HF(DV6DTED) | 90 | Diesel | 2012– |
| CITROËN | 1.6 HDi 90 4x4 | BERLINGO MULTISPACE (B9) | 9HF(DV6DTED) | 90 | Diesel | 2012–2014 |
| CITROËN | 1.6 HDi 90 8V | JUMPY II (VF7) | 9HM(DV6UC) | 90 | Diesel | 2007–2016 |
| CITROËN | 1.6 HDi 90 8V | JUMPY II (VF7) | 9HH(DV6DUM) | 90 | Diesel | 2007–2016 |
| CITROËN | 1.6 HDi 90 8V | JUMPY II Platform/Chassis | 9HH(DV6DUM) | 90 | Diesel | 2007–2016 |
| CITROËN | 1.6 HDi 90 8V | JUMPY II Van | 9HM(DV6UC) | 90 | Diesel | 2007–2016 |
Visar 200 av 483 fordon
