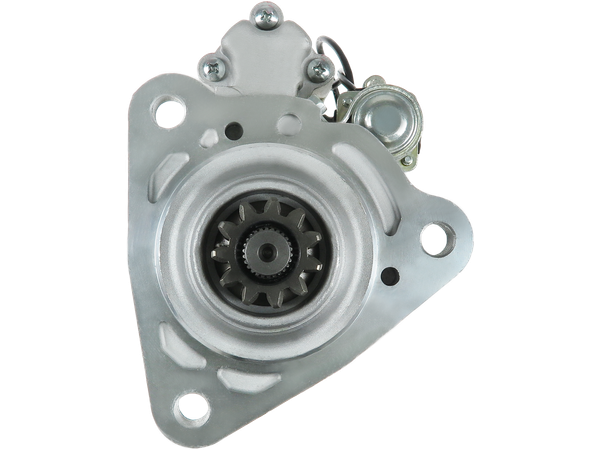

S5307S
Startmotorer
STANDARD LINE
2437 kr
Köp nu
| EAN | 5902129093473 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M9T85371 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 349.00 |
| O.1 [ mm ] | 126.50 |
| O.2 [ mm ] | 126.50 |
| O.3 [ mm ] | 126.50 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 4001 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | 1833 | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.903 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.903 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AS | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AS | AROCS | OM470.903 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AS | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 K | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 K | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 K | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.906 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.913 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.910 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.906 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.913 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.910 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.910 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.906 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.913 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 L | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LK | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LK | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LK | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.913 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.910 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.906 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.910 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.906 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.913 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.906 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.913 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.910 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 LS | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1836 | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.903 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.903 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AS | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AS | AROCS | OM470.903 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AS | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 K | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 K | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 K | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.910 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.906 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.913 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.906 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.913 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.913 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.910 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.910 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.906 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 L | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LK | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LK | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LK | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.910 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.906 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.913 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.906 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.913 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.910 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.910 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.906 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.913 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 LS | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 S, 1836 LS | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 S, 1836 LS | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 S, 1836 LS | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1840 | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.903 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.903 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AS | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AS | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AS | AROCS | OM470.903 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 K | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 K | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 K | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.906 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.913 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.910 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.910 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.906 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.913 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.906 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.913 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.910 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 L | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LK | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LK | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LK | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.906 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.913 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.910 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.910 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.906 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.913 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.906 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.913 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.910 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 LS | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | OM471.900 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | OM471.909 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.906 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.900 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.909 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.900 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.909 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.906 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AS | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AS | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AS | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AS | AROCS | OM471.906 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | OM471.900 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | OM471.909 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.900 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.922 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.922 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | 471.943 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | 471.943 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.909 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.909 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.926 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.926 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.900 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.900 | 422 | 2012–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.909 | 421 | 2013–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.922 | 422 | 2012–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.926 | 421 | 2013–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.900 | 421 | 2013–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.909 | 422 | 2012–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.922 | 421 | 2013–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.926 | 422 | 2012–2018 | |
| MERCEDES-BENZ | 1842 L | AROCS | OM471.900 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | AROCS | 471.943 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | AROCS | OM471.922 | 421 | 2013– |
Visar 200 av 4001 fordon
