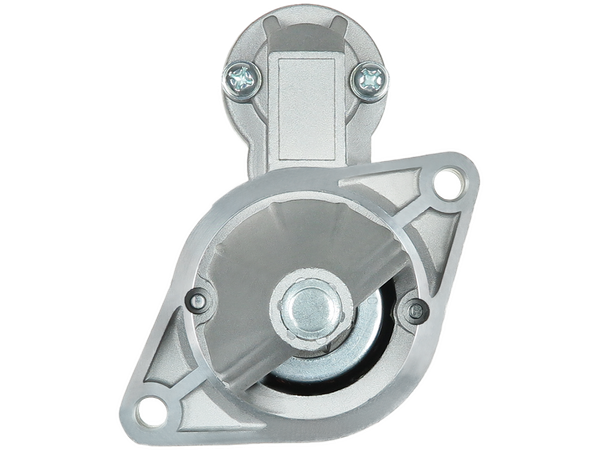

S5413S
Startmotorer
STANDARD LINE
680 kr
Köp nu
| EAN | 5902129111399 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
ANDEL: ANM12938X AS-PL: S5413S, UD16857S AUTO MAGNETO: AM-2883 AUTOELECTRO: AES4190 BOSCH: 0986012881, 9000334103 CARGO: 111475, F032111475 CASCO: CST35107AS, CST35177AS CEVAM: 9690 DELCO: DRS0718, DS1828 DENSO: 028000-2151, 028000-2240, 028000-2241 ELECTROLOG: STR5145 ELSTOCK: 25-1201, 25-2077 HC PARTS: JS330, JS394 HERTH+BUSS: J5218000, J5218007 KHD: 1585263012 KRAUF: STM2394 KUBOTA: 15852-63010, 15852-63011, 15852-63012, 1585263011, 1585263013, 19837-63012 KUHNER: 20330, 20394, 20394M LOMBARDINI: SS838 LUCAS: LRS00490, LRS02065, LRS2065, LRS490 MISCELLANEOUS: TRS026 MITSUBISHI: 01100153002S, M002T27686, M002T30481, M002T30581, M002T30585, M002T30586, M002T41581, M002T41586, M002T42381, M002T42382, M002T47481, M002T49181, M002T49189, M003T29681, M003T30481, M003T30586, M003T33181, M003T33182, M003T33183, M2T27686, M2T30481, M2T30581, M2T30585, M2T30586, M2T33182, M2T33183, M2T41581, M2T41586, M2T42381, M2T42382, M2T47481, M2T49181, M2T49189, M3T29681, M3T30481, M3T30586, M3T33181, M3T33182, M3T33183 NISSAN: 3110082C11 POWERMAX: 88212502 PSH: 180.001.082.415, 180.001.082.608, 180.001.092.130, 180.001.092.138, 180.001.092.340, 180.001.092.415, 180.001.092.440, 180.001.092.555, S130.646, S148.621, S148.752 REAL: 20437701BN, 20437771BN SANDO: 6035107.0, 6035177.0 SIOM: MAV371770, MAV371770A STARDAX: STX200366, STX201321 SUZUKI: 31000-80X51, 3100080X51, 3100080X51000, 31100-73010, 31100-73030, 31100-73031, 31100-73033, 31100-73034, 31100-73035, 31100-73036, 31100-80091, 31100-80092, 31100-80094, 31100-80X51, 31100-82C11, 31100-A7303, 3110070B20, 3110073010, 3110073010XA, 3110073030XA, 3110073031XA, 3110073033, 3110073034, 3110073035, 3110073036, 3110073071, 3110073090, 3110073091, 3110073092, 3110080092, 3110080X51000, 31100A7303, 31100T3035 TOYOTA: 28100-22020, 28100-22021 WAI / TRANSPO: 16791N WILSON: 91-27-3068 WOODAUTO: STR71018 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 66.00 |
| B-storlek [ mm ] | 17.00 |
| Antal kuggar [ qty. ] | 8 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 186.00 |
| O.1 [ mm ] | 110.00 |
| C.1 [ mm ] | 9.00 |
| C.2 [ mm ] | 9.00 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SUZUKI | 0.8 (LJ80) | LJ80 (OL) | F8A | 39 | Petrol | 1980–1984 |
| SUZUKI | 0.8 4x4 | LJ80 Closed Off-Road Vehicle | F8A | 39 | Petrol | 1977–1981 |
| SUZUKI | 1.0 (SJ410) | SJ410 | F10A | 45 | Petrol | 1981–1988 |
| SUZUKI | 1.0 (SJ410) | SJ410 Cabrio (OS) | F10A | 45 | Petrol | 1981–1991 |
| SUZUKI | 1.0 All-wheel Drive (SJ410) | SAMURAI Closed Off-Road Vehicle (SJ_) | F10A | 45 | Petrol | 1988–2004 |
| SUZUKI | 1.0 All-wheel Drive (SJ410) | SAMURAI Open Off-Road Vehicle (SJ_) | F10A | 45 | Petrol | 1990–1994 |
