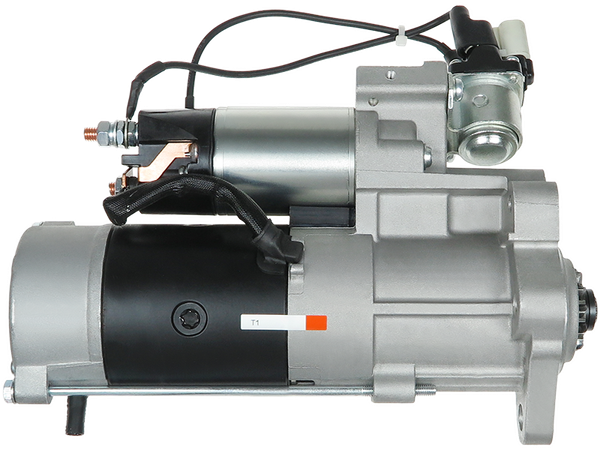

S5420S
Startmotorer
STANDARD LINE
1683 kr
Köp nu
| EAN | 5902129113614 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M8T55371 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 66.00 |
| B-storlek [ mm ] | 18.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 288.00 |
| O.1 [ mm ] | 111.00 |
| O.2 [ mm ] | 65.00 |
| O.3 [ mm ] | 75.00 |
| C.1 [ mm ] | M12x1.75 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | M12x1.75 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MITSUBISHI | FE160C1, FE160E1 | Canter (FE5, FE6) VI | 4M50-3AT7 | 150 | 2008–2011 | |
| MITSUBISHI | FE160C2, FE160E2 | Canter (FE5, FE6) VI | 4M50-3AT7 | 150 | 2008–2011 | |
| MITSUBISHI | FE160E3 | Canter (FE5, FE6) VI | 4M50-3AT7 | 150 | 2008–2011 | |
| MITSUBISHI | FE160E4 | Canter (FE5, FE6) VI | 4M50-3AT7 | 150 | 2008–2011 | |
| MITSUBISHI | FEI60W4 | Canter (FE5, FE6) VI | 4M50-3AT7 | 150 | 2008–2011 | |
| MITSUBISHI | FG160C1, FG160E1, FG160W1 | Canter (FE5, FE6) VI | 4M50-3AT7 | 150 | 2008–2013 |
