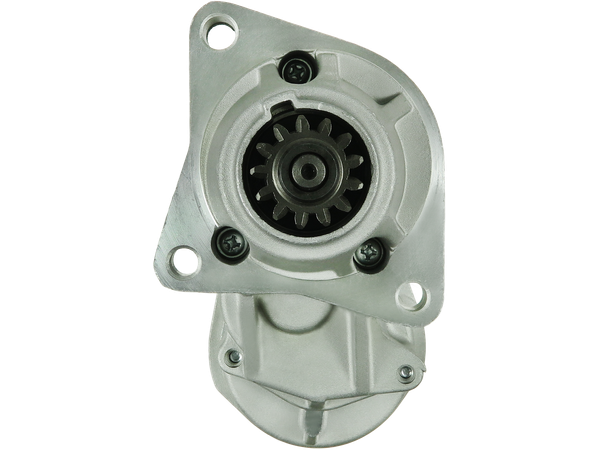

S6003
Startmotorer
STANDARD LINE
1287 kr
Köp nu
| EAN | 5901259423419 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: STRW060 AINDE: CGB-23539 AUTOELECTRO: AEY1256 CARGO: 110627, F032110627 CASCO: CST40150, CST40150AS, CST40150ES, CST40150GS, CST40150OS, CST40150RS CASE: 116930A1, R39341 CEVAM: 8499 DELCO: DRS3539 DENSO: 028000-5880, 028000-5881, 028000-5882, 028000-5883, 028000-5884 ELECTROLOG: STR6166 ELSTOCK: 25-1436 HC PARTS: JS1012 HELLA: 8EA737266-001 KRAUF: STN1012 KUHNER: 201012 LOGISTIK: 335862 LUCAS: LRS01256, LRS1256 POWERMAX: 88212417 PRESTOLITE: 35259620 REAL: 20432051BN SANDO: 6040150 SIOM: MAV421500 WAI / TRANSPO: 16658N, 2-1726-ND WOODAUTO: STR70081 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 13 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 293.00 |
| O.1 [ mm ] | 89.00 |
| O.2 [ mm ] | 89.00 |
| O.3 [ mm ] | 127.00 |
Passar i 7 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 450 C | 0 | 1989–1994 | |||
| CASE IH | 480 CK | 0 | 1989–1994 | |||
| CASE IH | 580 | 0 | 1982–1994 | |||
| CASE IH | 580 C | 207D | 0 | 1975–1980 | ||
| CASE IH | 580 C | 188D | 0 | 1975–1980 | ||
| CASE IH | 580 D | 188D | 0 | 1980–1983 | ||
| CASE IH | 580 D | 207D | 0 | 1980–1983 |
