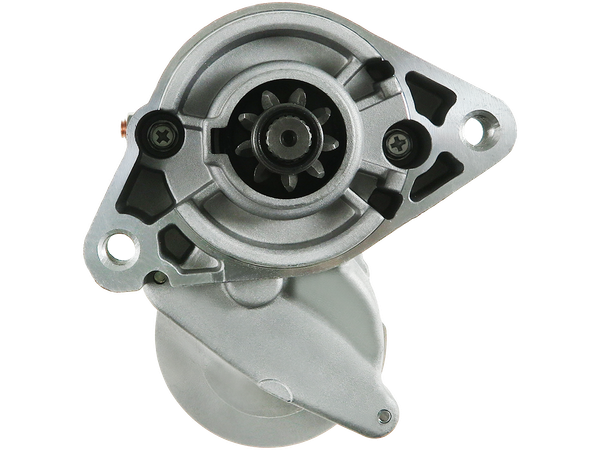

S6013
Startmotorer
STANDARD LINE
977 kr
Köp nu
| EAN | 5901259423525 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: PRSL799, STRL799 AS-PL: S6013 ASHIKA: 003-T182 AUTO MAGNETO: AM-2047 AUTOELECTRO: AES6109 BOSCH: 0986014511 CARGO: 110397, F032110397 CASCO: CST44104AS CEVAM: 9701 DAF: 1516967R DAIHATSU: 28100-72010-000, 28100-72080-000 DELCO: DRS3023 DENSO: 028000-9260, 028000-9261, 128000-0220, 128000-1520, 128000-3340, 128000-7090 EAI: 11452 ELECTROLOG: STR6047 ELSTOCK: 25-1045, 25-2000 FRIESEN: 8052235 HC PARTS: JS385 HELLA: 8EA726473-001 JAPANPARTS: MTT182 JAPKO: 3T182 KUHNER: 20385 LAUBER: 22.5385 LOGISTIK: 335235 LUCAS: LRS00609, LRS609 PRESTOLITE: 66925148, EL25148 PSH: 190.504.092.000, 190.504.092.055, 190.504.092.058, 190.504.092.266, S130.662 REAL: 20452401BN SANDO: 6044104 SIOM: MAV441000, MAV461040 SOVEREIGN: SS391 STARDAX: STX201355 TOYOTA: 28100-04010, 28100-05801, 28100-72010, 28100-72030, 28100-72050, 28100-72060, 28100-72080, 28100-72100, 28100-72130, 2810004010, 2810072010R, 2810072020, 2810072050, 2810072090 VALEO: 455612, VS233 VW: J2810072010, J2810072080 WOODAUTO: STR70022 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 18.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 179.00 |
| O.1 [ mm ] | 110.00 |
| C.1 [ mm ] | M10x1.25 |
| C.2 [ mm ] | M10x1.25 |
Passar i 28 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DAIHATSU | 2.0 (F70, F75, F80, F85) | ROCKY Soft Top (F7, F8) | 3Y | 88 | Petrol | 1985–1993 |
| DAIHATSU | 2.0 4x4 (F70, F75, F80, F85) | ROCKY Hard Top (F7, F8) | 3Y | 88 | Petrol | 1985–1993 |
| DAIHATSU | 2.8 TD | ROCKY Hard Top (F7, F8) | DL-52 | 98 | Diesel | 1993–1998 |
| DAIHATSU | 2.8 TD | ROCKY Hard Top (F7, F8) | DL-TC | 98 | Diesel | 1993–1998 |
| TOYOTA | 1.8 (YH50, YH60) | HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) | 2Y | 79 | Petrol | 1983–1989 |
| TOYOTA | 1.8 (YH50, YH60) | HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) | 2Y | 79 | Petrol | 1982–1989 |
| TOYOTA | 1.8 (YH81_, YH81R) | DYNA 100 Platform/Chassis (YH_) | 2Y | 83 | Petrol | 1987–1995 |
| TOYOTA | 1.8 (YH81_, YH81R) | DYNA 100 Platform/Chassis (YH_) | 2Y | 79 | Petrol | 1985–1995 |
| TOYOTA | 1.8 (YN51, YN56) | HILUX IV Pickup (_N5_, _N6_) | 2Y | 79 | Petrol | 1983–1989 |
| TOYOTA | 1.8 (YN51, YN56) | HILUX IV Pickup (_N5_, _N6_) | 2Y-C | 79 | Petrol | 1983–1989 |
| TOYOTA | 1.8 (YN85, YN90) | HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) | 2Y | 83 | Petrol | 1988–1998 |
| TOYOTA | 1.8 D (CM20_, CM20R) | LITEACE Wagon (YM2_, CM2_, KM2_) | 1C | 56 | Diesel | 1982–1985 |
| TOYOTA | 1.8 De Luxe (YR20_, YR20RG) | MODEL F (CR2_, YR2_, YR3_) | 2Y-C | 79 | Petrol | 1982–1984 |
| TOYOTA | 1.8 De Luxe (YR20_, YR20RG) | MODEL F (CR2_, YR2_, YR3_) | 2Y | 79 | Petrol | 1982–1984 |
| TOYOTA | 2.0 (YH51, YH61) | HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) | 3Y | 88 | Petrol | 1985–1989 |
| TOYOTA | 2.0 (YH51, YH61) | HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) | 3Y | 88 | Petrol | 1982–1989 |
| TOYOTA | 2.0 (YN57, YN60) | HILUX IV Pickup (_N5_, _N6_) | 3Y | 88 | Petrol | 1983–1988 |
| TOYOTA | 2.0 (YR21_G, YR21RG) | MODEL F (CR2_, YR2_, YR3_) | 3Y | 90 | Petrol | 1988–1990 |
| TOYOTA | 2.0 (YU60_, YU60R) | DYNA Platform/Chassis (_U_, _Y_) | 3Y | 107 | Petrol | 1984–1987 |
| TOYOTA | 2.0 (YY61_) | DYNA 150 Platform/Chassis (_Y_) | 3Y | 88 | Petrol | 1985–1987 |
| TOYOTA | 2.0 Super (YR21) | MODEL F (CR2_, YR2_, YR3_) | 3Y-C | 88 | Petrol | 1984–1988 |
| TOYOTA | 2.0 Super (YR21) | MODEL F (CR2_, YR2_, YR3_) | 3Y | 88 | Petrol | 1984–1988 |
| TOYOTA | 2.2 (YR22LG) | LITEACE Bus (_R2_) | 4Y-EC | 98 | Petrol | 1992–1995 |
| TOYOTA | 2.2 4WD (YN67) | HILUX IV Pickup (_N5_, _N6_) | 4Y | 94 | Petrol | 1985–1989 |
| TOYOTA | 3.4 D (BU85, BU82, BU62_) | DYNA Platform/Chassis (_U_, _Y_) | 13B | 90 | Diesel | 1984–1987 |
| VW | 1.8 | TARO | 2Y | 83 | Petrol | 1989–1994 |
| VW | 2.2 | TARO | 4Y | 94 | Petrol | 1989–1994 |
| VW | 2.2 4x4 | TARO | 4Y | 94 | Petrol | 1989–1994 |
