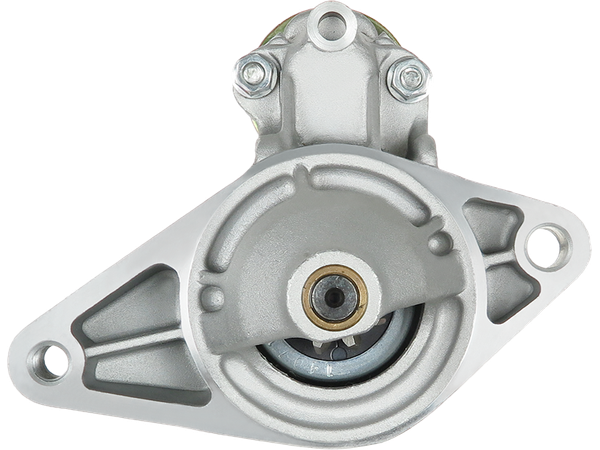

S6020
Startmotorer
STANDARD LINE
830 kr
Köp nu
| EAN | 5901259423594 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: PRSS730, STRS730 AINDE: CGB-23058 AIRSTAL: 30-1974 ALANKO: 10440539 ANDEL: ANM15398X ASHIKA: 003-T212, 003-T218 AUTO MAGNETO: AM-2109 AUTOELECTRO: AES9195 BOSCH: 0986020531 BTS TURBO: S101761 CARGO: 111455, F032111455 CARWOOD GROUP: BREF032111455 CASCO: CST40116AS CEVAM: 9721 DA SILVA: 040014 DAIHATSU: 281001619084, 2810087107000, 2810087213000 DELCO: DRS3178, DRS3179 DENSO: 128000-2680, 128000-2682, 128000-4480, 128000-5680, 128000-5681, 128000-5682, 128000-6420, 128000-6421, 128000-6422 DRI: 335094092 EAI: 11738 ELECTROLOG: STR6088 ELSTOCK: 25-2258 EUROTEC: 11040746 FRIESEN: 8052261 GHIBAUDI: SG0233, SG0233RB HC PARTS: JS760, JS918 HELLA: 8EA012527-131, 8EA731795-001 HENKEL PARTS: 3113698 HERTH+BUSS: J5212082 ITAB AUTOMOTIVE: 10040116AV JAPANPARTS: MTT212, MTT218 JAPKO: 3T212, 3T218 KRAUF: STN0760 KUHNER: 201105, 20760 LAUBER: 22.0760, 22.0918M LUCAS: LRS00995, LRS995 NPS: D521U34 POWERMAX: 8212941 PRESTOLITE: 66925149, EL25149 PSH: 190.514.092.460, 190.514.092.461, 190.514.092.463, 190.514.092.464, 190.514.092.465, 190.514.092.608, 190.518.092.050, 190.518.092.415, 190.518.092.550 REAL: 20432611BN REMANTE: 011-001-000520R SANDO: 6040116.0 SIOM: MAV421160, MAV421160A SOVEREIGN: SS413 TESLA TECHNICS: TT15812 TMI: ST00905 TOYOTA: 28100-02040, 28100-02060, 28100-02080, 28100-16010, 28100-1601084, 28100-16020, 28100-16040, 28100-16041, 28100-16070, 28100-16070R, 28100-16071, 28100-16071R, 28100-16079, 28100-16110, 28100-16150, 28100-16160, 28100-16170, 28100-16180, 28100-16190, 28100-16230, 28100-87107-000, 28100-87107000, 28100-87213 VALEO: 455924 WAI / TRANSPO: 30982N, 30982R WOODAUTO: STR30047 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 8.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 8. 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 203.00 |
| O.1 [ mm ] | 132.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | M10x1.25 |
Passar i 100 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DAIHATSU | 1.6 (A60) | CHARMANT (A) | 4A | 78 | Petrol | 1985–1987 |
| DAIHATSU | 1.6 (A60) | CHARMANT (A) | 4A | 83 | Petrol | 1983–1987 |
| DAIHATSU | 1.6 (A60) | CHARMANT (A) | 4A | 82 | Petrol | 1986–1987 |
| SUZUKI | 1.0 (SF310, AA44) | SWIFT II Hatchback (EA, MA) | G10 | 50 | Petrol | 1989–2001 |
| SUZUKI | 1.0 (SF310, AA44) | SWIFT II Hatchback (EA, MA) | G10A | 50 | Petrol | 1989–2001 |
| SUZUKI | 1.0 (SH410) | ALTO IV (EF, SH410_) | G10B | 53 | Petrol | 1994–2002 |
| SUZUKI | 1.3 GTi (SF413, AA34) | SWIFT II Hatchback (EA, MA) | G13B | 101 | Petrol | 1989–2001 |
| SUZUKI | 1.3 i (SF413, AK35, SY415, E35) | SWIFT Convertible (SF413) | G13BA | 68 | Petrol | 1991–1996 |
| SUZUKI | 1.6 i 16V (SY416) | BALENO (EG) | G16B | 98 | Petrol | 1995–2002 |
| SUZUKI | 1.6 i 16V (SY416) | BALENO Estate (EG) | G16B | 98 | Petrol | 1996–2002 |
| SUZUKI | 1.6 i 16V (SY416) | BALENO Hatchback (EG) | G16B | 98 | Petrol | 1995–2002 |
| SUZUKI | 1.8 i 16V (SY418) | BALENO Estate (EG) | J18A | 121 | Petrol | 1996–2002 |
| SUZUKI | 1.9 TD (SY419) | BALENO (EG) | DHV(XUD9BSD) | 75 | Diesel | 1998–2002 |
| SUZUKI | 1.9 TD (SY419) | BALENO (EG) | DHW(XUD9SD) | 75 | Diesel | 1998–2002 |
| SUZUKI | 1.9 TD (SY419) | BALENO Estate (EG) | DHW(XUD9SD) | 75 | Diesel | 1998–2002 |
| SUZUKI | 1.9 TD (SY419) | BALENO Estate (EG) | DHV(XUD9BSD) | 75 | Diesel | 1998–2002 |
| SUZUKI | 1.9 TD (SY419) | BALENO Hatchback (EG) | DHW(XUD9SD) | 75 | Diesel | 1998–2002 |
| TOYOTA | 1.5 (AE100) | COROLLA (_E10_) | 5A-FE | 105 | Petrol | 1991–1994 |
| TOYOTA | 1.5 (AT170_, AT170) | CORONA Saloon (_T17_) | 5A-FE | 125 | Petrol | 1987–1989 |
| TOYOTA | 1.6 (AE101) | COROLLA (_E10_) | 4A-FE | 103 | Petrol | 1991–1995 |
| TOYOTA | 1.6 (AE101_, AE101R) | COROLLA (_E10_) | 4A-F | 106 | Petrol | 1994–1997 |
| TOYOTA | 1.6 (AE101_, AE101R) | COROLLA (_E10_) | 4A-FE | 106 | Petrol | 1994–1997 |
| TOYOTA | 1.6 (AE101_, AE101R) | COROLLA (_E10_) | 4A-FE | 115 | Petrol | 1992–1997 |
| TOYOTA | 1.6 (AE111) | COROLLA (_E11_) | 4A-FE | 110 | Petrol | 1995–2000 |
| TOYOTA | 1.6 (AE111_) | COROLLA Compact (_E11_) | 4A-FE | 110 | Petrol | 1997–2000 |
| TOYOTA | 1.6 (AE111_, AE111R) | COROLLA Estate (_E11_) | 4A-FE | 110 | Petrol | 1997–2000 |
| TOYOTA | 1.6 (AE111_, AE111R) | COROLLA Liftback (_E11_) | 4A-FE | 110 | Petrol | 1997–2001 |
| TOYOTA | 1.6 (AE92) | COROLLA (_E9_) | 4A-F | 90 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AE92) | COROLLA Compact (_E9_) | 4A-F | 90 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AE92) | COROLLA Liftback (_E9_) | 4A-FE | 105 | Petrol | 1989–1992 |
| TOYOTA | 1.6 (AE92) | COROLLA Liftback (_E9_) | 4A-F | 95 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AE92) | COROLLA Liftback (_E9_) | 4A-F | 90 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AE92) | COROLLA Station Wagon (_E9_) | 4A-F | 90 | Petrol | 1988–1992 |
| TOYOTA | 1.6 (AT151_, AT151R) | CARINA IV (_T15_) | 4A-L | 86 | Petrol | 1986–1987 |
| TOYOTA | 1.6 (AT151_, AT151R) | CARINA IV (_T15_) | 4A-LC | 75 | Petrol | 1983–1987 |
| TOYOTA | 1.6 (AT151_, AT151R) | CARINA IV (_T15_) | 4A-L | 84 | Petrol | 1983–1987 |
| TOYOTA | 1.6 (AT151_, AT151R) | CARINA IV Saloon (_T15_) | 4A-L | 84 | Petrol | 1983–1987 |
| TOYOTA | 1.6 (AT151_, AT151R) | CARINA IV Saloon (_T15_) | 4A-LC | 75 | Petrol | 1983–1987 |
| TOYOTA | 1.6 (AT160_, AT160R) | CELICA Coupe (_T16_) | 4A-L | 86 | Petrol | 1986–1989 |
| TOYOTA | 1.6 (AT160_, AT160R) | CELICA Hatchback (_T16_) | 4A-L | 86 | Petrol | 1986–1989 |
| TOYOTA | 1.6 (AT171_) | CARINA V (_T17_) | 4A-F | 90 | Petrol | 1987–1989 |
| TOYOTA | 1.6 (AT171_) | CARINA V (_T17_) | 4A-FE | 102 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AT171_) | CARINA V (_T17_) | 4A-FE | 98 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AT171_, AT171) | CARINA V Estate (_T17_) | 4A-FE | 98 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AT171_, AT171) | CARINA V Saloon (_T17_) | 4A-FE | 102 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AT171_, AT171) | CARINA V Saloon (_T17_) | 4A-FE | 98 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AT171_, AT171) | CARINA V Saloon (_T17_) | 4A-F | 90 | Petrol | 1987–1990 |
| TOYOTA | 1.6 (AT171_, AT171G) | CARINA V Estate (_T17_) | 4A-FE | 102 | Petrol | 1987–1992 |
| TOYOTA | 1.6 (AT171_, AT171G) | CARINA V Estate (_T17_) | 4A-F | 90 | Petrol | 1987–1989 |
| TOYOTA | 1.6 (AT180) | CELICA Coupe (_T18_) | 4A-FE | 105 | Petrol | 1989–1993 |
| TOYOTA | 1.6 (AT190) | CARINA E VI (_T19_) | 4A-FE | 99 | Petrol | 1993–1997 |
| TOYOTA | 1.6 (AT190) | CARINA E VI (_T19_) | 4A-FE | 116 | Petrol | 1993–1997 |
| TOYOTA | 1.6 (AT190) | CARINA E VI Saloon (_T19_) | 4A-FE | 106 | Petrol | 1995–1997 |
| TOYOTA | 1.6 (AT190) | CARINA E VI Saloon (_T19_) | 4A-FE | 99 | Petrol | 1995–1997 |
| TOYOTA | 1.6 (AT190) | CARINA E VI Saloon (_T19_) | 4A-FE | 107 | Petrol | 1993–1997 |
| TOYOTA | 1.6 (AT190) | CARINA E VI Sportswagon (_T19_) | 4A-FE | 115 | Petrol | 1992–1997 |
| TOYOTA | 1.6 16V (AT190_, AT190R) | CARINA E VI (_T19_) | 4A-FE | 106 | Petrol | 1995–1997 |
| TOYOTA | 1.6 16V (AT190_, AT190R) | CARINA E VI Saloon (_T19_) | 4A-FE | 116 | Petrol | 1994–1997 |
| TOYOTA | 1.6 4WD | COROLLA Liftback (_E9_) | 4A-FE | 105 | Petrol | 1989–1992 |
| TOYOTA | 1.6 4WD (AE95) | COROLLA Station Wagon (_E9_) | 4A-FE | 105 | Petrol | 1988–1995 |
| TOYOTA | 1.6 4WD (AE95) | COROLLA Station Wagon (_E9_) | 4A-F | 95 | Petrol | 1988–1992 |
| TOYOTA | 1.6 Aut. (AE111_) | COROLLA Liftback (_E11_) | 4A-FE | 107 | Petrol | 1997–2000 |
| TOYOTA | 1.6 Aut. (AE111_, AE111R) | COROLLA (_E11_) | 4A-FE | 107 | Petrol | 1997–2000 |
| TOYOTA | 1.6 Aut. (AE111_, AE111R) | COROLLA Compact (_E11_) | 4A-FE | 107 | Petrol | 1997–2000 |
| TOYOTA | 1.6 Aut. (AE111_, AE111R) | COROLLA Estate (_E11_) | 4A-FE | 107 | Petrol | 1997–2000 |
| TOYOTA | 1.6 EFi (AE92, AE93) | COROLLA Liftback (_E9_) | 4A-FE | 116 | Petrol | 1992–1997 |
| TOYOTA | 1.6 GL 4WD (AE95) | COROLLA (_E9_) | 4A-F | 95 | Petrol | 1987–1990 |
| TOYOTA | 1.6 GLI (AE101_, AE101R) | COROLLA Liftback (_E10_) | 4A-FE | 114 | Petrol | 1992–1997 |
| TOYOTA | 1.6 GLI (AT190) | CARINA E VI (_T19_) | 4A-FE | 107 | Petrol | 1992–1997 |
| TOYOTA | 1.6 GLI (AT190_, AT190R) | CARINA E VI Sportswagon (_T19_) | 4A-FE | 107 | Petrol | 1993–1997 |
| TOYOTA | 1.6 Si (AE101_, AE101R) | COROLLA (_E10_) | 4A-FE | 114 | Petrol | 1995–1997 |
| TOYOTA | 1.6 Si (AE101_, AE101R) | COROLLA Compact (_E10_) | 4A-FE | 114 | Petrol | 1992–1997 |
| TOYOTA | 1.6 Si (AE101_, AE101R) | COROLLA Estate (_E10_) | 4A-FE | 114 | Petrol | 1992–1997 |
| TOYOTA | 1.6 XLI (AE92_, AE92R) | COROLLA Station Wagon (_E9_) | 4A-FE | 105 | Petrol | 1989–1992 |
| TOYOTA | 1.6 XLI 4WD | COROLLA Station Wagon (_E9_) | 4A-FE | 110 | Petrol | 1989–1995 |
| TOYOTA | 1.6 i (AE101) | COROLLA Compact (_E10_) | 4A-FE | 106 | Petrol | 1994–1999 |
| TOYOTA | 1.6 i (AE92) | COROLLA (_E9_) | 4A-FE | 105 | Petrol | 1987–1992 |
| TOYOTA | 1.6 i (AE92) | COROLLA Compact (_E9_) | 4A-FE | 105 | Petrol | 1989–1992 |
| TOYOTA | 1.6 i (AT190_, AT190R) | CARINA E VI Sportswagon (_T19_) | 4A-FE | 99 | Petrol | 1995–1997 |
| TOYOTA | 1.6 i (AT220_) | AVENSIS Estate (_T22_) | 4A-FE | 110 | Petrol | 1997–2000 |
| TOYOTA | 1.6 i (AT220_, AT220R) | AVENSIS (_T22_) | 4A-FE | 101 | Petrol | 1997–2000 |
| TOYOTA | 1.6 i (AT220_, AT220R) | AVENSIS (_T22_) | 4A-FE | 110 | Petrol | 1997–2000 |
| TOYOTA | 1.6 i (AT220_, AT220R) | AVENSIS Estate (_T22_) | 4A-FE | 101 | Petrol | 1997–2000 |
| TOYOTA | 1.6 i (AT220_, AT220R) | AVENSIS Liftback (_T22_) | 4A-FE | 110 | Petrol | 1997–2000 |
| TOYOTA | 1.6 i (AT220_, AT220R) | AVENSIS Liftback (_T22_) | 4A-FE | 101 | Petrol | 1997–2000 |
| TOYOTA | 1.6 i 4WD (AE92_, AE92R) | COROLLA (_E9_) | 4A-FE | 105 | Petrol | 1987–1990 |
| TOYOTA | 1.8 (AT191) | CARINA E VI (_T19_) | 7A-FE | 107 | Petrol | 1995–1997 |
| TOYOTA | 1.8 4WD (AE115_, AE115R) | COROLLA Estate (_E11_) | 7A-FE | 110 | Petrol | 1997–2001 |
| TOYOTA | 1.8 GL (AT191) | CARINA E VI Saloon (_T19_) | 7A-FE | 125 | Petrol | 1994–1997 |
| TOYOTA | 1.8 GL (AT191) | CARINA E VI Sportswagon (_T19_) | 7A-FE | 125 | Petrol | 1994–1997 |
| TOYOTA | 1.8 GT (AE102_, AE102R) | COROLLA Compact (_E10_) | 7A-FE | 117 | Petrol | 1992–1995 |
| TOYOTA | 1.8 GT (AE102_, AE102R) | COROLLA Liftback (_E10_) | 7A-FE | 117 | Petrol | 1992–1995 |
| TOYOTA | 1.8 GTi 4WD (AE103) | COROLLA Compact (_E10_) | 7A-FE | 125 | Petrol | 1992–1995 |
| TOYOTA | 1.8 i (AT191_, AT191R) | CARINA E VI Sportswagon (_T19_) | 7A-FE | 107 | Petrol | 1995–1997 |
| TOYOTA | 1.8 i (AT221_, AT221R) | AVENSIS (_T22_) | 7A-FE | 110 | Petrol | 1997–2000 |
| TOYOTA | 1.8 i (AT221_, AT221R) | AVENSIS Estate (_T22_) | 7A-FE | 110 | Petrol | 1997–2000 |
| TOYOTA | 1.8 i (AT221_, AT221R) | AVENSIS Liftback (_T22_) | 7A-FE | 110 | Petrol | 1997–2000 |
| TOYOTA | 1.8 i 16V (AT191) | CARINA E VI Saloon (_T19_) | 7A-FE | 107 | Petrol | 1995–1997 |
| TOYOTA | 1.8 i 16V (AT200) | CELICA Coupe (_T20_) | 7A-FE | 116 | Petrol | 1993–1999 |
| TOYOTA | 2.0 D (CE110) | COROLLA Liftback (_E11_) | 2C-E | 72 | Diesel | 1997–2000 |
