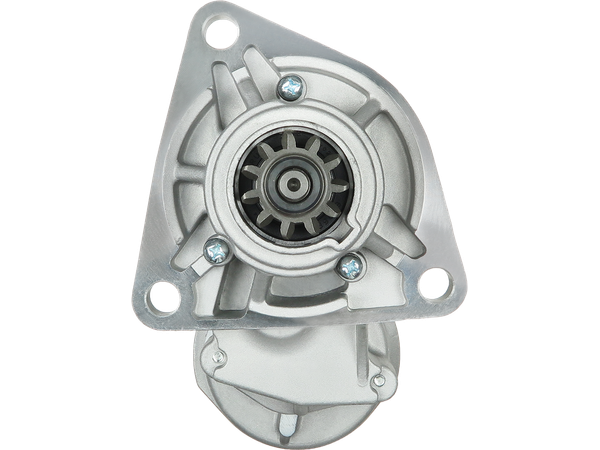

S6027
Startmotorer
STANDARD LINE
1230 kr
Köp nu
| EAN | 5901259423662 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: STRW099 AINDE: CGB-23050, CGB-23217 AS-PL: S6027 AUTO MAGNETO: AM-2141 AUTOELECTRO: AEY1872 CARGO: 110580, F032110580 CASCO: CST40642AS, CST50601AS, CST50601GS CEVAM: 8204 EAI: 33929 ELECTROLOG: STR6403 ELSTOCK: 45-1392 ERA: 220625 HC PARTS: JS746 HELLA: 8EA730287-001 HITACHI: S25-100, S25-100A, S25-103, S25-135, S25-135A, S25100, S25100A, S25135, S25135A ISUZU: 1811001890, 1811001891, 1811001910, 1811001911, 1811001920, 1811001921, 1811002591, 1811002641, 1811004111, 5811000252, 5811000360, 5811001180, 5811001390, 5811001391, 5811001560, 5811001620 JCB: 714-40280 KUHNER: 20746, 20746K LOGISTIK: 335374 LUCAS: LRS01872, LRS1872 MEAT & DORIA: 5140098 NIKKO: 0-21000-3660, 0-21000-3661, 0-23000-1030, 0-23000-1031, 0-23000-1032, 0-23000-1033, 0-23000-1670 POWERMAX: 8212429 REAL: 20432246BN, 20446106BN, 20446106OE SANDO: 6040642, 6050601 SIDAT: S24DE0133A2, S24NK0014A2 SIOM: MAV5740 WAI / TRANSPO: 18190N WOODAUTO: STR70126 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 105.00 |
| B-storlek [ mm ] | 40.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 296.00 |
| O.1 [ mm ] | 111.00 |
| O.2 [ mm ] | 111.00 |
| O.3 [ mm ] | 135.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 1 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ISUZU | Engine | 6BD1 | 0 | 1982– |
