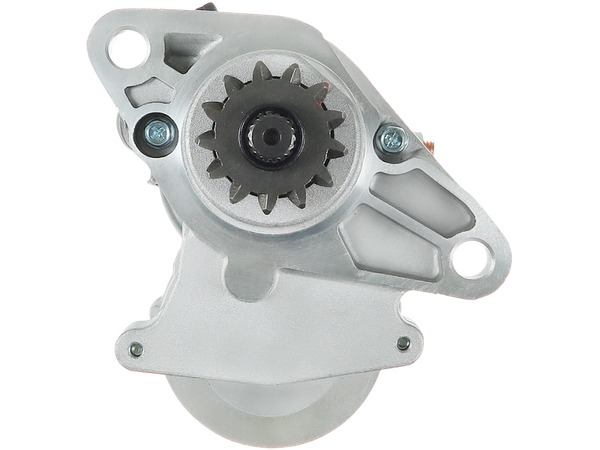

S6034
Startmotorer
STANDARD LINE
1005 kr
Köp nu
| EAN | 5902129065401 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: PRSS961, PRSS961U, STRS961U AS-PL: UD20831S CASCO: CST40238AS, CST40238GS DELCO: DRT0631, DT1741 DENSO: 228000-6270, 228000-6271, 228000-6272, 228000-6273, 228000-9210, 228000-9600, 428000-7770, DSN922 EAI: 12057 ELECTROLOG: STR6311 ELSTOCK: 25-3206 ERA: 220485, 220487 HC PARTS: JS1302 HELLA: 8EA011610-751, 8EA738095-001 HERTH+BUSS: J5212100 KRAUF: STN1302, STN4302 LUCAS: LRS01660, LRS1660 POWERMAX: 88212556 PSH: 190.557.132.050, 190.557.132.260, S131.428 REAL: 20432832BN, 20432832OE RHIAG: 312024 ROLLCO: STM681 SANDO: 6040238.0, 6040238.1 SIDAT: S12DE0586, S12DE0586A2 SIOM: MAV422380, MAV422380A STARDAX: STX200577, STX200898 TOYOTA: 28100-28010, 28100-28020, 2810003090, 2810074140, 2810074240 WAI / TRANSPO: 17777N WOODAUTO: DENDSN922, STR70253 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.20 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 55.00 |
| B-storlek [ mm ] | 66.00 |
| Antal kuggar [ qty. ] | 13 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 208.00 |
| O.1 [ mm ] | 122.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
Passar i 14 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| LEXUS | 300 (MCU10_, MCU10R) | RX (MCU15) | 1MZ-FE | 201 | Petrol | 1998–2003 |
| LEXUS | 300 AWD (MCU15) | RX (MCU15) | 1MZ-FE | 201 | Petrol | 2000–2003 |
| LEXUS | 300 AWD (MCU15_) | RX (MCU15) | 1MZ-FE | 223 | Petrol | 1998–2003 |
| TOYOTA | 2.0 4WD (ACA21, ACA20) | RAV 4 II (_A2_) | 1AZ-FE | 150 | Petrol | 2000–2005 |
| TOYOTA | 2.0 VVT-i (ACM20_, ACM20R) | AVENSIS VERSO (_M2_) | 1AZ-FE | 150 | Petrol | 2001–2009 |
| TOYOTA | 2.0 VVT-i (AZT220_, AZT220R) | AVENSIS (_T22_) | 1AZ-FSE | 150 | Petrol | 2000–2003 |
| TOYOTA | 2.0 VVT-i (AZT220_, AZT220R) | AVENSIS Estate (_T22_) | 1AZ-FSE | 150 | Petrol | 2000–2003 |
| TOYOTA | 2.0 VVT-i (AZT220_, AZT220R) | AVENSIS Liftback (_T22_) | 1AZ-FSE | 150 | Petrol | 2000–2003 |
| TOYOTA | 2.2 (SXV20) | CAMRY (_V2_) | 5S-FE | 126 | Petrol | 1997–2002 |
| TOYOTA | 2.2 (SXV20) | SOLARA Coupe (_V2_) | 5S-FE | 136 | Petrol | 1998–2001 |
| TOYOTA | 2.2 (SXV20_, SXV20) | CAMRY (_V2_) | 5S-FE | 131 | Petrol | 1996–2001 |
| TOYOTA | 2.4 (ACR30) | PREVIA II (_R3_) | 2AZ-FE | 156 | Petrol | 2000–2006 |
| TOYOTA | 2.4 (ACV30, ACV36) | CAMRY Saloon (_V3_) | 2AZ-FE | 152 | Petrol | 2001–2006 |
| TOYOTA | 3.0 (MCV30_, MCV30R) | CAMRY Saloon (_V3_) | 1MZ-FE | 186 | Petrol | 2001–2006 |
