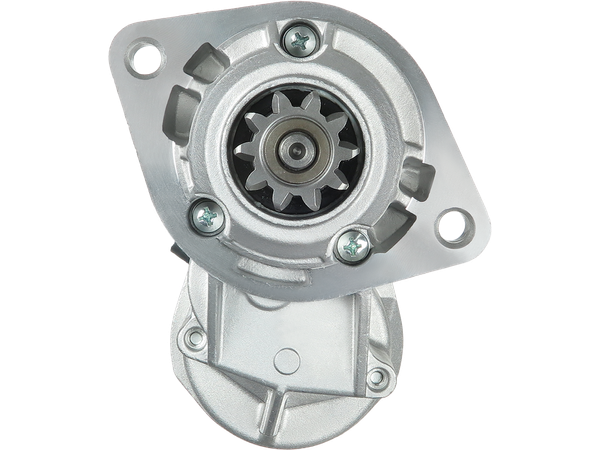

S6144
Startmotorer
STANDARD LINE
1149 kr
Köp nu
| EAN | 5902129003595 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: PRSL225, STRL225 AINDE: CGB-26640 AS-PL: S6144, UD100737S CARGO: 114340, F032114340 CASCO: CST40616AS, CST40616GS CUMMINS: 3575248RX, 3675248RX, 3863128, 3864298, 3920644, 3922474, 3934119, 3957593, 3970101, 4064168 DELCO: DRS0357, DS1467 DENSO: 228000-0630, 228000-0631, 228000-0632, 228000-1750, 228000-1751, 228000-1752, 228000-1753, 228000-4990, 228000-4991, 228000-4992, 228000-6640, 228000-6670, 428000-1830, 428000-1831, 428080-1831, DSN2106 ELECTROLOG: STR6788 ELSTOCK: 45-4409 KALMAR: 90032116 KOMATSU: 600-813-4130, 600-813-5110, 600-863-4110, 600-863-4111, 600-863-4130, 600-863-4210, 600-863-4211, 673-181-2530, 673-381-6510, 673-382-6510, 6731812530, 6731816510, 6733816510 KRAUF: STK4340, STN4340, STN8340, STN9340 KUHNER: 254133, 254133D, 254133K, 254133L LOGISTIK: 336185, 336191, 336495 LUCAS: LES0257, LRS02736, LRS2736 MEAT & DORIA: 5140097 PSH: 941.511.102.059, 941.511.102.200, 941.511.102.260, 941.511.102.310, 941.558.102.260, S144.739 REAL: 20432616BN, 20432616OE ROBERT'S: 190-25122 SANDO: 6040616.0, 6040616.1 SIOM: MAV426160 WAI / TRANSPO: 18402N WOODAUTO: DENDSN2106, STR30051 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 296.00 |
| O.1 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
| Oil sealed | Yes |
Passar i 19 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| JCB | 6.7 | 434S | QSB | 0 | 2007– | |
| JCB | 6.7 | 436E | 6BTAA | 0 | 2007– | |
| KOMATSU | WA120 4B | 0 | 1997–2007 | |||
| KOMATSU | WA120 4B Wheelloader | 0 | 1997–2006 | |||
| KOMATSU | WA120 6B | 0 | 1997–2007 | |||
| KOMATSU | WA120 6B Wheelloader | 0 | 1997–2006 | |||
| KOMATSU | WA180 4B | 0 | 1997–2007 | |||
| KOMATSU | WA180 4B Wheelloader | 0 | 1997–2006 | |||
| KOMATSU | WA180 6B | 0 | 1997–2007 | |||
| KOMATSU | WA180 6B Wheelloader | 0 | 1997–2006 | |||
| KOMATSU | WA250 4B | 0 | 1997–2007 | |||
| KOMATSU | WA250 4B Wheelloader | 0 | 1997–2006 | |||
| KOMATSU | WA250 6B | 0 | 1997–2007 | |||
| KOMATSU | WA250 6B Wheelloader | 0 | 1997–2006 | |||
| KOMATSU | WA253 4B | 0 | 1997–2007 | |||
| KOMATSU | WA253 4B Wheelloader | 0 | 1997–2006 | |||
| KOMATSU | WA253 6B | 0 | 1997–2007 | |||
| KOMATSU | WA253 6B Wheelloader | 0 | 1997–2006 | |||
| KOMATSU | 5.9 | WA250 | S6D102 | 0 | 1997– |
