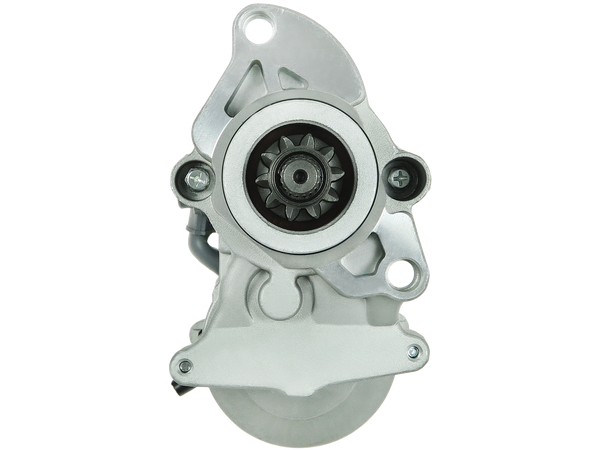

S6197
Startmotorer
STANDARD LINE
1143 kr
Köp nu
| EAN | 5902129028635 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
AS-PL: UD12378S CARGO: 116078, F032116078 CASCO: CST40450, CST40450AS, CST40450ES, CST40450GS, CST40450OS, CST40450RS DENSO: 428000-3490, 428000-3491 DIXIE: 246-15171 ELECTROLOG: STR6531 HARLEY DAVIDSON: 31618-06, 3161906, 3161906A KRAUF: STN3490 KUHNER: 255369 PSH: 400.504.102, S132.569 SANDO: 6040450 WAI / TRANSPO: 18905BN, 18905N, 2-2861ND |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 48.50 |
| B-storlek [ mm ] | 18.50 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 216.00 |
| O.1 [ mm ] | 99.00 |
| C.1 [ mm ] | 9.50 |
| C.2 [ mm ] | 9.50 |
Passar i 26 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HARLEY-DAVIDSON | 1450 Dyna Street Bob | DYNA | 73 | Petrol | 2005–2006 | |
| HARLEY-DAVIDSON | 1450 Dyna Super Glide (FXDI) | DYNA | 34 | Petrol | 2006– | |
| HARLEY-DAVIDSON | 1600 Dyna Fat Bob | DYNA | 78 | Petrol | 2007–2013 | |
| HARLEY-DAVIDSON | 1600 Dyna Low Rider | DYNA | 76 | Petrol | 2007–2008 | |
| HARLEY-DAVIDSON | 1600 Dyna Street Bob (FXDB, FD2) | DYNA | 76 | Petrol | 2007–2017 | |
| HARLEY-DAVIDSON | 1600 Dyna Super Glide (FXD) | DYNA | 34 | Petrol | 2006– | |
| HARLEY-DAVIDSON | 1600 Dyna Super Glide (FXD) | DYNA | 76 | Petrol | 2007– | |
| HARLEY-DAVIDSON | 1600 Dyna Super Glide Custom | DYNA | 76 | Petrol | 2006–2013 | |
| HARLEY-DAVIDSON | 1600 Dyna Super Glide Custom (FXDC) | DYNA | 34 | Petrol | 2007– | |
| HARLEY-DAVIDSON | 1600 Dyna Wide Glide | DYNA | 76 | Petrol | 2007–2007 | |
| HARLEY-DAVIDSON | 1600 Dyna Wide Glide | DYNA | 78 | Petrol | 2009–2013 | |
| HARLEY-DAVIDSON | 1700 Dyna Fat Bob | DYNA | 80 | Petrol | 2016– | |
| HARLEY-DAVIDSON | 1700 Dyna Fat Bob | DYNA | 46 | Petrol | 2012– | |
| HARLEY-DAVIDSON | 1700 Dyna Fat Bob (FXDF) | DYNA | 79 | Petrol | 2012– | |
| HARLEY-DAVIDSON | 1700 Dyna Low Rider | DYNA | 78 | Petrol | 2017– | |
| HARLEY-DAVIDSON | 1700 Dyna Low Rider (FXDLS) | DYNA | 76 | Petrol | 2016– | |
| HARLEY-DAVIDSON | 1700 Dyna Street Bob (FXDB) | DYNA | 78 | Petrol | 2013–2013 | |
| HARLEY-DAVIDSON | 1700 Dyna Street Bob (FXDB) | DYNA | 78 | Petrol | 2015– | |
| HARLEY-DAVIDSON | 1700 Dyna Super Glide Custom (FXDC) | DYNA | 78 | Petrol | 2013– | |
| HARLEY-DAVIDSON | 1700 Dyna Switchback (FLD 103, FD2) | DYNA | 46 | Petrol | 2014– | |
| HARLEY-DAVIDSON | 1700 Dyna Switchback (FLD 103, FD2) | DYNA | 76 | Petrol | 2011–2013 | |
| HARLEY-DAVIDSON | 1700 Dyna Switchback (FLD 103, FD2) | DYNA | 76 | Petrol | 2014– | |
| HARLEY-DAVIDSON | 1700 Dyna Wide Glide | DYNA | 80 | Petrol | 2017– | |
| HARLEY-DAVIDSON | 1700 Dyna Wide Glide | DYNA | 76 | Petrol | 2009– | |
| HARLEY-DAVIDSON | 1700 Dyna Wide Glide (FD2) | DYNA | 46 | Petrol | 2013– | |
| HARLEY-DAVIDSON | 1700 Dyna Wide Glide (FD2) | DYNA | 79 | Petrol | 2013– |
