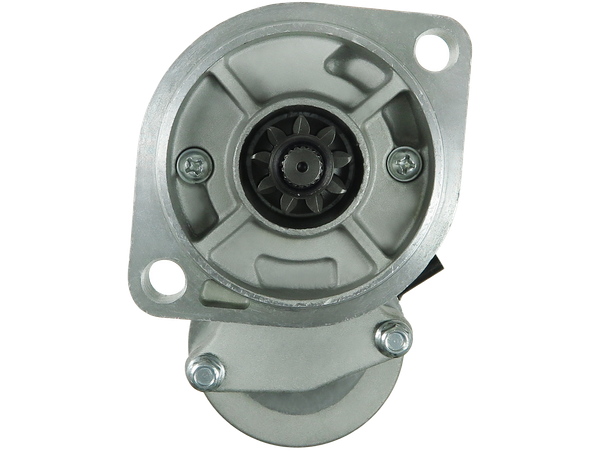

S6216S
Startmotorer
STANDARD LINE
1031 kr
Köp nu
| EAN | 5902129047469 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
AS-PL: S6216S, UD13645S BOMAG: 31701378 CARGO: 114332, F032114332 CASCO: CST40229, CST40229AS, CST40229ES, CST40229GS, CST40229OS, CST40229RS CUMMINS: C6008631410 DELCO: DRS1008 DENSO: 428000-2650, 428000-2651 DIXIE: 246-22102, 246-22102R, S-80094 ELECTROLOG: STR6714 ELSTOCK: 25-4461 HYUNDAI / KIA: 031114250 KOMATSU: 600-863-1410, 6008611410, 6008631310 KUHNER: 254422 LUCAS: LRS03788, LRS3788 PSH: 940.503.092, 940.503.092.260, S136.297, S144.752 SANDO: 6040229 WAI / TRANSPO: 18981N WILSON: 91-29-5603, 91-29-5603N WOODAUTO: STR30030, STR70381 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 20.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 236.00 |
| O.1 [ mm ] | 120.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
Passar i 9 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CUMMINS | CFP33-F10 | 0 | 2004–2010 | |||
| CUMMINS | CFP33-F20 | 0 | 2004–2010 | |||
| CUMMINS | CFP33-F25 | 0 | 2004–2010 | |||
| CUMMINS | CFP33-F30 | 0 | 2004–2010 | |||
| CUMMINS | CFP33-F35 | 0 | 2004–2010 | |||
| CUMMINS | Engine | B3.3 | 0 | 2004– | ||
| KOMATSU | WA70-6 | 4D95LEW-5 | 0 | – | ||
| MASSEY FERGUSON | MF9220 | B3.3 | 0 | 2004–2006 | ||
| TORO | Groundmaster 5910 | 0 | – |
