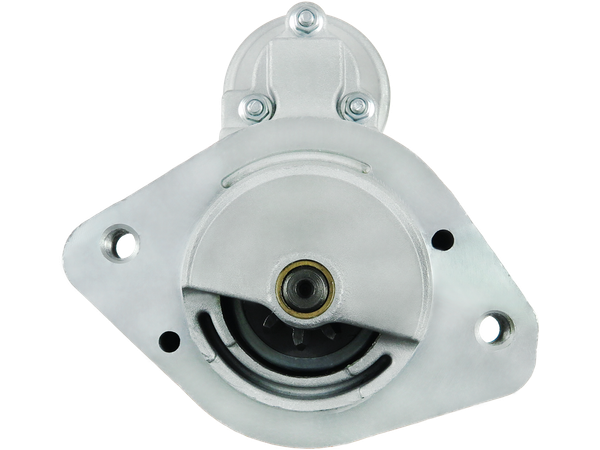

S6258S
Startmotorer
STANDARD LINE
1315 kr
Köp nu
| EAN | 5902129067023 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: PRSL054, STRL054 AINDE: CGB-28680 AS-PL: S6258S ASHIKA: 003-T359 BOSCH: 0001110132 CARGO: 112006, F032112006 CASCO: CST40302, CST40302AS, CST40302ES, CST40302GS, CST40302OS, CST40302RS DENSO: 428000-0720, 428000-4350, DSN950, MS428000-0720 ELECTROLOG: STR6263 ELSTOCK: 25-2477 ERA: 220094 FORD: 1019852, 1057811, 7275964 HC PARTS: JS1135 HERTH+BUSS: J5212124 JAPANPARTS: MTT359 JAPKO: 3T359 KUHNER: 201135 LUCAS: LRS02099, LRS2099 PRESTOLITE: 20510182, S1049B PSH: 190.533.092, S130.791, S145.225 REAL: 20432203 SANDO: 6040302 SIOM: MAV121130 STARDAX: STX200027, STX200027R, STX200089, STX200089R TOYOTA: 28100-0B010, 28100-0B010A, 28100-0B020, 28100-0G010, 28100-0G020, 28100-0G021, 28100-OG020, 2810001020, 2810008010, 281000B010, 281000B020 WOODAUTO: DENDSN950 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 3.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 231.00 |
| O.1 [ mm ] | 115.00 |
| C.1 [ mm ] | M10x1.25 |
| C.2 [ mm ] | M10x1.25 |
Passar i 36 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| TOYOTA | 2.0 D (CDT220_) | AVENSIS Estate (_T22_) | 1CD-FTV | 115 | Diesel | 2002–2003 |
| TOYOTA | 2.0 D (CDT220_) | AVENSIS Liftback (_T22_) | 1CD-FTV | 115 | Diesel | 2002–2003 |
| TOYOTA | 2.0 D (CLM20_, CLM20R) | AVENSIS VERSO (_M2_) | 1CD-FTV | 116 | Diesel | 2001–2005 |
| TOYOTA | 2.0 D (CT190) | CARINA E VI (_T19_) | 2C | 73 | Diesel | 1992–1996 |
| TOYOTA | 2.0 D (CT190) | CARINA E VI Saloon (_T19_) | 2C | 73 | Diesel | 1992–1996 |
| TOYOTA | 2.0 D (CT190_, CT190R) | CARINA E VI Sportswagon (_T19_) | 2C | 73 | Diesel | 1993–1997 |
| TOYOTA | 2.0 D (CT220_) | AVENSIS Estate (_T22_) | 2C-T | 82 | Diesel | 1997–1998 |
| TOYOTA | 2.0 D 4WD (CLA20_, CLA21_, CLA20R, CLA21R) | RAV 4 II (_A2_) | 1CD-FTV | 116 | Diesel | 2001–2005 |
| TOYOTA | 2.0 D-4D (CDE110_, CDE110R) | COROLLA (_E11_) | 1CD-FTV | 90 | Diesel | 2000–2001 |
| TOYOTA | 2.0 D-4D (CDE110_, CDE110R) | COROLLA Compact (_E11_) | 1CD-FTV | 90 | Diesel | 2000–2002 |
| TOYOTA | 2.0 D-4D (CDE110_, CDE110R) | COROLLA Estate (_E11_) | 1CD-FTV | 90 | Diesel | 2000–2001 |
| TOYOTA | 2.0 D-4D (CDE110_, CDE110R) | COROLLA Liftback (_E11_) | 1CD-FTV | 90 | Diesel | 2000–2002 |
| TOYOTA | 2.0 D-4D (CDE120R, CDE120L_) | COROLLA (_E12_) | 1CD-FTV | 116 | Diesel | 2003–2007 |
| TOYOTA | 2.0 D-4D (CDE120R, CDE120L_) | COROLLA (_E12_) | 1CD-FTV | 110 | Diesel | 2002–2006 |
| TOYOTA | 2.0 D-4D (CDE120_, CDE120R) | COROLLA (_E12_) | 1CD-FTV | 90 | Diesel | 2002–2006 |
| TOYOTA | 2.0 D-4D (CDE120_, CDE120R) | COROLLA Estate (_E12_) | 1CD-FTV | 116 | Diesel | 2004–2007 |
| TOYOTA | 2.0 D-4D (CDE120_, CDE120R) | COROLLA Estate (_E12_) | 1CD-FTV | 90 | Diesel | 2002–2007 |
| TOYOTA | 2.0 D-4D (CDE120_, CDE120R) | COROLLA Saloon (_E12_) | 1CD-FTV | 90 | Diesel | 2002–2006 |
| TOYOTA | 2.0 D-4D (CDE120_, CDE120R) | COROLLA Saloon (_E12_) | 1CD-FTV | 116 | Diesel | 2004–2007 |
| TOYOTA | 2.0 D-4D (CDE120_, CDE120R) | COROLLA Verso (_E12_) | 1CD-FTV | 90 | Diesel | 2002–2004 |
| TOYOTA | 2.0 D-4D (CDT220) | AVENSIS (_T22_) | 1CD-FTV | 116 | Diesel | 2002–2003 |
| TOYOTA | 2.0 D-4D (CDT220_, CDT220R) | AVENSIS (_T22_) | 1CD-FTV | 110 | Diesel | 1999–2003 |
| TOYOTA | 2.0 D-4D (CDT220_, CDT220R) | AVENSIS Estate (_T22_) | 1CD-FTV | 110 | Diesel | 1999–2003 |
| TOYOTA | 2.0 D-4D (CDT220_, CDT220R) | AVENSIS Liftback (_T22_) | 1CD-FTV | 110 | Diesel | 1999–2003 |
| TOYOTA | 2.0 D-4D (CDT250_, CDT250R) | AVENSIS (_T25_) | 1CD-FTV | 116 | Diesel | 2003–2008 |
| TOYOTA | 2.0 D-4D (CDT250_, CDT250R) | AVENSIS Estate (_T25_) | 1CD-FTV | 116 | Diesel | 2003–2008 |
| TOYOTA | 2.0 D-4D (CDT250_, CDT250R) | AVENSIS Saloon (_T25_) | 1CD-FTV | 116 | Diesel | 2003–2008 |
| TOYOTA | 2.0 D-4D (CLR30_, CLR30R) | PREVIA II (_R3_) | 1CD-FTV | 116 | Diesel | 2001–2006 |
| TOYOTA | 2.0 D-4D (CUR10_, CUR10R) | COROLLA Verso (ZER_, ZZE12_, R1_) | 1CD-FTV | 116 | Diesel | 2004–2009 |
| TOYOTA | 2.0 TD (CT190) | CARINA E VI (_T19_) | 2C-T | 83 | Diesel | 1996–1997 |
| TOYOTA | 2.0 TD (CT190_, CT190R) | CARINA E VI Saloon (_T19_) | 2C-T | 83 | Diesel | 1996–1997 |
| TOYOTA | 2.0 TD (CT190_, CT190R) | CARINA E VI Sportswagon (_T19_) | 2C-T | 83 | Diesel | 1996–1997 |
| TOYOTA | 2.0 TD (CT220_, CT220R) | AVENSIS (_T22_) | 2C-TE | 90 | Diesel | 1997–2003 |
| TOYOTA | 2.0 TD (CT220_, CT220R) | AVENSIS Estate (_T22_) | 2C-TE | 90 | Diesel | 1997–2003 |
| TOYOTA | 2.0 TD (CT220_, CT220R) | AVENSIS Liftback (_T22_) | 2C-TE | 90 | Diesel | 1997–2003 |
| TOYOTA | 2.2 D (CMX10_, CXM10G) | PICNIC (_XM1_) | 3C-TE | 90 | Diesel | 1997–2001 |
