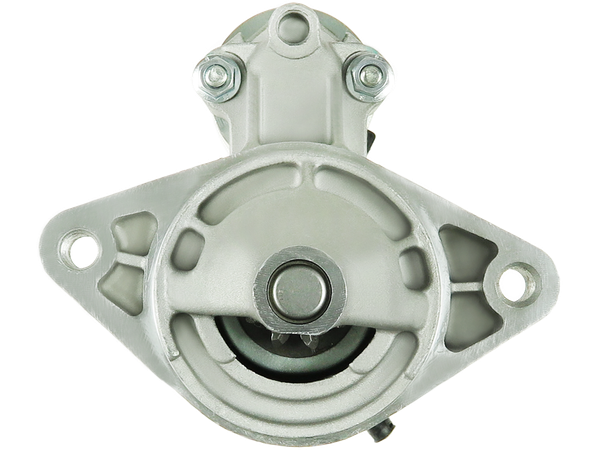

S6283S
Startmotorer
STANDARD LINE
989 kr
Köp nu
| EAN | 5902129083504 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
3EFFE: STRL213 AS-PL: UD14917S BOSCH: 0001107079 CASCO: CST44110AS DELCO: DRS3748, DS4858 DENSO: 228000-4320, 228000-6750 DIXIE: S-8907 ELECTROLOG: STR6467 HC PARTS: JS1024 HERTH+BUSS: J5212105 KRAUF: STN1024 KUHNER: 201023, 201024 PRESTOLITE: 20510213 REAL: 20452011BN SANDO: 6044110.0 SIOM: MAV421230, MAV461100A STARDAX: STX200376, STX200945, STX200945R, STX200992 TOYOTA: 28100-0E010, 28100-11100, 28100-11160, 2810011060, 2810011080, 2810011140 WILSON: 91-29-5286 WOODAUTO: STR70259 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 5.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 211.00 |
| O.1 [ mm ] | 114.00 |
| C.1 [ mm ] | M10x1.25 |
| C.2 [ mm ] | M10x1.25 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| TOYOTA | 1.3 (EP91_, EP91R) | STARLET (_P9_) | 4E-FE | 75 | Petrol | 1996–1999 |
| TOYOTA | 1.3 XLI 16V (EE101) | COROLLA (_E10_) | 4E-FE | 88 | Petrol | 1992–1995 |
| TOYOTA | 1.3 XLI 16V (EE101_, EE101R) | COROLLA Estate (_E10_) | 4E-FE | 88 | Petrol | 1992–1995 |
| TOYOTA | 1.4 (EE111_, EE111R) | COROLLA Compact (_E11_) | 4E-FE | 86 | Petrol | 1997–1999 |
| TOYOTA | 1.4 (EE111_, EE111R) | COROLLA Liftback (_E11_) | 4E-FE | 86 | Petrol | 1997–1999 |
| TOYOTA | 1.5 (EL54_, EL54R) | PASEO Coupe (_L5_) | 5E-FE | 90 | Petrol | 1995–1999 |
