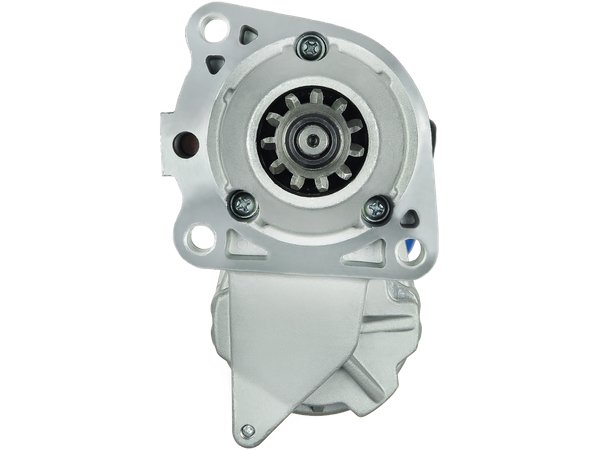

S6285S
Startmotorer
STANDARD LINE
1772 kr
Köp nu
| EAN | 5902129086208 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer | 428000-2370 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 321.00 |
| O.1 [ mm ] | 89.00 |
| O.2 [ mm ] | 89.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
| C.3 [ mm ] | 11.50 |
| Wet clutch | Yes |
Passar i 45 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BARBER GREENE | BG600D | C6.6 | 0 | – | ||
| BARBER GREENE | BG655D | C6.6 | 0 | – | ||
| CATERPILLAR | 924H | C6.6 | 0 | 2007–2012 | ||
| CATERPILLAR | 924HZ | C6.6 | 0 | 2007–2012 | ||
| CATERPILLAR | 928H | C6.6 | 0 | 2007–2012 | ||
| CATERPILLAR | 928HZ | C6.6 | 0 | 2007–2012 | ||
| CATERPILLAR | 930H | C6.6 | 0 | 2007–2012 | ||
| CATERPILLAR | AP500E | C4.4 | 0 | – | ||
| CATERPILLAR | AP555E | C4.4 | 0 | – | ||
| CATERPILLAR | AP600D | C6.6 | 0 | – | ||
| CATERPILLAR | AP655C | C6.6 | 0 | – | ||
| CATERPILLAR | AP655D | C6.6 | 0 | – | ||
| CATERPILLAR | BG500E | C4.4 | 0 | – | ||
| CATERPILLAR | BG555E | C4.4 | 0 | – | ||
| CATERPILLAR | BG600D | C6.6 | 0 | – | ||
| CATERPILLAR | BG655D | C6.6 | 0 | – | ||
| CATERPILLAR | C6.6 | C6.6 | 0 | – | ||
| CATERPILLAR | CP56 | C6.6 | 0 | – | ||
| CATERPILLAR | CP563E | 3056E | 0 | – | ||
| CATERPILLAR | CP56B | C6.6 | 0 | – | ||
| CATERPILLAR | CP573E | 3056E | 0 | – | ||
| CATERPILLAR | CP583E | 3056E | 0 | – | ||
| CATERPILLAR | CP64 | C6.6 | 0 | – | ||
| CATERPILLAR | CP64B | C6.6 | 0 | – | ||
| CATERPILLAR | CP663E | 3056E | 0 | – | ||
| CATERPILLAR | CP68B | C6.6 | 0 | – | ||
| CATERPILLAR | CP74 | C6.6 | 0 | – | ||
| CATERPILLAR | CP74B | C6.6 | 0 | – | ||
| CATERPILLAR | CP76 | C6.6 | 0 | – | ||
| CATERPILLAR | CS56 | C6.6 | 0 | – | ||
| CATERPILLAR | CS56 | 3116 | 0 | – | ||
| CATERPILLAR | CS563E | 3056E | 0 | – | ||
| CATERPILLAR | CS56B | C6.6 | 0 | – | ||
| CATERPILLAR | CS573E | 3056E | 0 | – | ||
| CATERPILLAR | CS583E | 3056E | 0 | – | ||
| CATERPILLAR | CS64 | C6.6 | 0 | – | ||
| CATERPILLAR | CS64B | C6.6 | 0 | – | ||
| CATERPILLAR | CS663E | 3056E | 0 | – | ||
| CATERPILLAR | CS683E | 3056E | 0 | – | ||
| CATERPILLAR | CS68B | C6.6 | 0 | – | ||
| CATERPILLAR | CS74 | C6.6 | 0 | – | ||
| CATERPILLAR | CS74B | C6.6 | 0 | – | ||
| CATERPILLAR | CS76 | C6.6 | 0 | – | ||
| CATERPILLAR | CS78B | C6.6 | 0 | – | ||
| CATERPILLAR | IT28G | 3056E | 0 | – |
