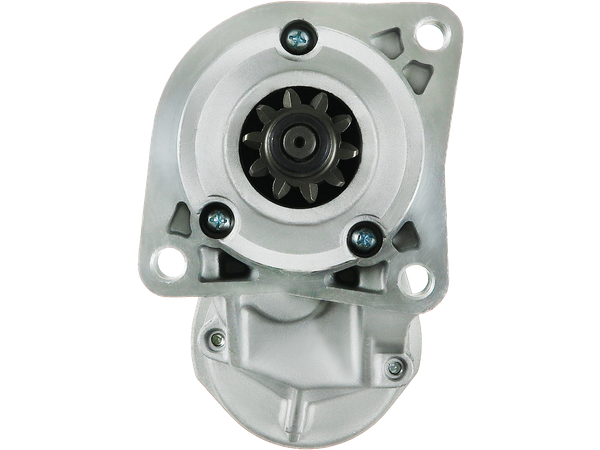

S6405S
Startmotorer
STANDARD LINE
1356 kr
Köp nu
| EAN | 5902129121213 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer | 228000-7500 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 29.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 297.00 |
| O.1 [ mm ] | 89.00 |
| O.2 [ mm ] | 89.00 |
| O.3 [ mm ] | 126.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 25 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | Engine | 704-30 | 0 | 1998–2006 | ||
| CATERPILLAR | 3.0 | 216 | 3034 | 0 | 1999–2004 | |
| CATERPILLAR | 3.0 | 226 | 3034 | 0 | 1999–2004 | |
| CATERPILLAR | 3.0 | 232 | 3034 | 0 | 1999–2004 | |
| CATERPILLAR | 3.0 | 236 | 3034 | 0 | 1999–2004 | |
| CATERPILLAR | 3.0 | 242 | 3034 | 0 | 1999–2004 | |
| CATERPILLAR | 3.0 | 246 | 3034 | 0 | 1999–2004 | |
| CATERPILLAR | 3.0 | 248 | 3034 | 0 | – | |
| CATERPILLAR | 3.0 | 252 | 3034 | 0 | 1999–2004 | |
| CATERPILLAR | 3.0 | 906 | 3034 | 0 | 1998–2008 | |
| CATERPILLAR | 4.4 | TC560B | 0 | 2004–2006 | ||
| CATERPILLAR | 4.4 | TH220B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH330B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH340B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH350B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH360B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH407 | C4.4 | 0 | 2008–2008 | |
| CATERPILLAR | 4.4 | TH414 | C4.4 | 0 | 2009–2017 | |
| CATERPILLAR | 4.4 | TH417 | C4.4 | 0 | 2009–2017 | |
| CATERPILLAR | 4.4 | TH460B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH514 | C4.4 | 0 | 2009–2017 | |
| CATERPILLAR | 4.4 | TH560B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH560B | 3054 | 0 | 2003–2007 | |
| CATERPILLAR | 4.4 | TH580B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TL1255 | C4.4TA | 0 | 2008–2012 |
