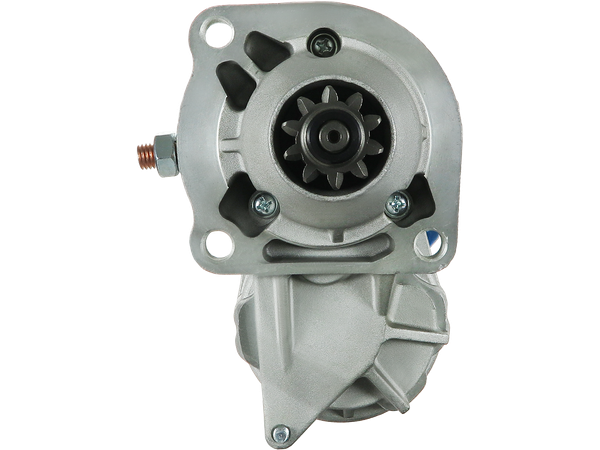

S6410S
Startmotorer
STANDARD LINE
1824 kr
Köp nu
| EAN | 5902129121541 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer | 228000-3700 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 313.00 |
| O.1 [ mm ] | 125.00 |
| O.2 [ mm ] | 89.00 |
| O.3 [ mm ] | 89.00 |
| C.1 [ mm ] | 12.00 |
| C.2 [ mm ] | 12.00 |
| C.3 [ mm ] | 12.00 |
Passar i 22 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | 4.4 | 446B | 3114 | 0 | 1993–2004 | |
| CATERPILLAR | 4.4 | 446D | 3114 | 0 | 2004–2008 | |
| CATERPILLAR | 5.0 | 933 | 3046 | 0 | 1996–2002 | |
| CATERPILLAR | 5.0 | 933 LGP | 3046 | 0 | 1994–1997 | |
| CATERPILLAR | 5.0 | 933C | 3046 | 0 | 1994–2002 | |
| CATERPILLAR | 5.0 | 933C Hystat | 3046 | 0 | 2000–2003 | |
| CATERPILLAR | 5.0 | 933C LGP | 3046 | 0 | 1997–2003 | |
| CATERPILLAR | 5.0 | 933C LGP Hystat | 3046 | 0 | 2000–2003 | |
| CATERPILLAR | 5.0 | 939 | 3046 | 0 | 1993–2000 | |
| CATERPILLAR | 5.0 | 939C | 3046T | 0 | 1997–2008 | |
| CATERPILLAR | 5.0 | 939C | 3046 | 0 | 1997–2003 | |
| CATERPILLAR | 5.0 | 939C Hystat | 3046T | 0 | 1999–2010 | |
| CATERPILLAR | 5.0 | D4G | 3046 | 0 | 2002–2008 | |
| CATERPILLAR | 5.0 | D4G LGP | 3046 | 0 | 2002–2007 | |
| CATERPILLAR | 5.0 | D4G XL | 3046 | 0 | 2002–2007 | |
| CATERPILLAR | 5.0 | D5C | 3046 | 0 | 1994–2000 | |
| CATERPILLAR | 5.0 | D5C Hystat | 3046 | 0 | 1994–2000 | |
| CATERPILLAR | 5.0 | D5C LGP | 3046 | 0 | 1993–2001 | |
| CATERPILLAR | 5.0 | D5C XL | 3046 | 0 | 1997–2006 | |
| CATERPILLAR | 5.0 | D5G | 3046T | 0 | 2001–2008 | |
| CATERPILLAR | 5.0 | D5G LGP | 3046T | 0 | 2001–2008 | |
| CATERPILLAR | 5.0 | D5G XL | 3046T | 0 | 2001–2005 |
