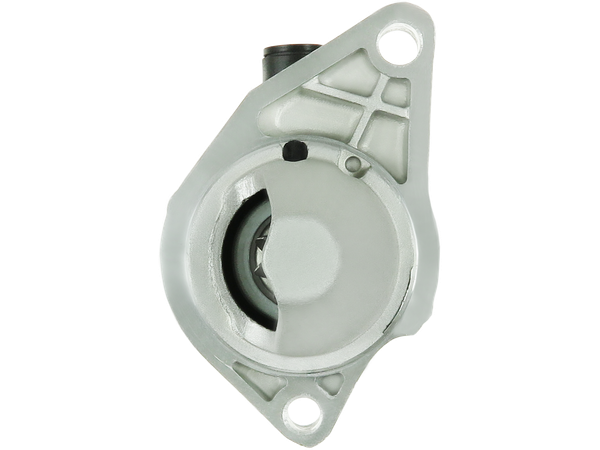

S9038S
Startmotorer
STANDARD LINE
1046 kr
Köp nu
| EAN | 5902129084426 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBA |
| OE-nummer |
AS-PL: UD03383S AUTO MAGNETO: AM-2054 CARGO: 114137, F032114137 CASCO: CST33125AS DIXIE: S-80316 ELECTROLOG: STR5976 HERTH+BUSS: J5214057 HONDA: 31200-RNA-A50, 31200-RNA-A51, RNA50 KRAUF: STU4137 MITSUBA: SM710-01 PSH: 120.570.092, S129.925 REAL: 20467521BN RELIANCE: 31067, 61067 SANDO: 6033125.0 SIOM: MAV351250A STARDAX: STX200595 WAI / TRANSPO: 17958N, 17958R WILSON: 91-26-2061, 91-26-2061N WOODAUTO: STR75464 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 75.00 |
| B-storlek [ mm ] | 34.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 244.00 |
| O.1 [ mm ] | 125.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 10.50 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HONDA | 1.8 (FD1, FD7, FA1) | CIVIC VIII Saloon (FD, FA) | R18A2 | 140 | Petrol | 2005–2012 |
| HONDA | 1.8 (FD1, FD7, FA1) | CIVIC VIII Saloon (FD, FA) | R18A1 | 140 | Petrol | 2005–2012 |
| HONDA | 1.8 (FN1, FK2) | CIVIC VIII Hatchback (FN, FK) | R18A2 | 140 | Petrol | 2005–2011 |
| HONDA | 1.8 EXS Flex | CIVIC VIII Saloon (FD, FA) | R18A1 | 140 | Petrol/Ethanol | 2006–2013 |
| HONDA | 2.0 i-VTEC 4WD (RE5, RE2) | CR-V III (RE_) | R20A2 | 150 | Petrol | 2006–2012 |
| HONDA | 2.0 i-VTEC 4WD (RE5, RE2) | CR-V III (RE_) | R20A1 | 150 | Petrol | 2006–2012 |
