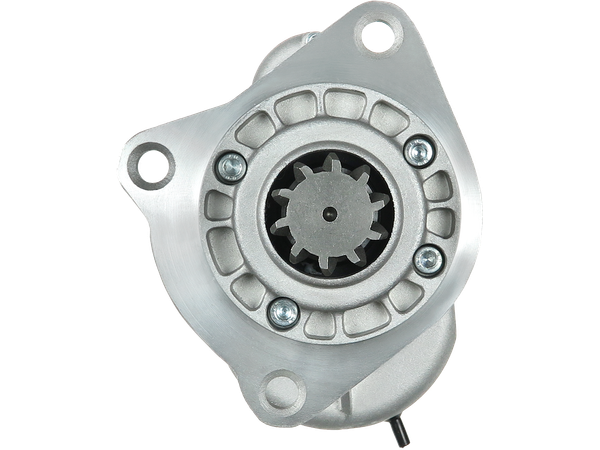

S9048
Startmotorer
STANDARD LINE
1022 kr
Köp nu
| EAN | 5901259437713 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETON |
| OE-nummer | 9142743 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 88.50 |
| B-storlek [ mm ] | 30.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 236.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 89.00 |
| O.3 [ mm ] | 89.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 48 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HESSTON | Various Models | 0 | – | |||
| LADA | 1.5 16V | 112 (2112) | 2112 | 95 | Petrol | 1995–2000 |
| LANDINI | 8860 | Series 60 | 1104A-44 | 84 | 2012– | |
| MASSEY FERGUSON | 1080 | A4.318 | 0 | 1970–1975 | ||
| MASSEY FERGUSON | 1100 | 0 | 1966–1969 | |||
| MASSEY FERGUSON | 1104 | 0 | 1976–1978 | |||
| MASSEY FERGUSON | 168 | A4.236 | 0 | 1972–1978 | ||
| MASSEY FERGUSON | 175 | A4.236 | 0 | 1965–1972 | ||
| MASSEY FERGUSON | 178 | A4.248 | 0 | 1968–1971 | ||
| MASSEY FERGUSON | 185 | A4.248 | 0 | 1972–1978 | ||
| MASSEY FERGUSON | 188 | A4.248 | 0 | 1972–1978 | ||
| MASSEY FERGUSON | 275 | A4.236 | 0 | 1977–1981 | ||
| MASSEY FERGUSON | 290 | A4.248 | 0 | 1983–1986 | ||
| MASSEY FERGUSON | 298 | A4.318 | 0 | 1983–1988 | ||
| MASSEY FERGUSON | 384 | A4.236 | 0 | 1992–1997 | ||
| MASSEY FERGUSON | 4270 | 1006 | 0 | 1997–2000 | ||
| MASSEY FERGUSON | 565 | A4.236 | 0 | 1976–1982 | ||
| MASSEY FERGUSON | 575 | A4.236 | 0 | 1976–1982 | ||
| MASSEY FERGUSON | 590 | A4.248 | 0 | 1976–1982 | ||
| MASSEY FERGUSON | 595 | A4.318 | 0 | 1976–1982 | ||
| MASSEY FERGUSON | 675 | A4.236 | 0 | 1982–1986 | ||
| MASSEY FERGUSON | 690 | A4.248 | 0 | 1982–1986 | ||
| MASSEY FERGUSON | 698 | AA318.2 | 0 | 1982–1984 | ||
| MASSEY FERGUSON | 699 | A6.354.4 | 0 | 1984–1986 | ||
| MASSEY FERGUSON | CC | 0 | 1979–1988 | |||
| MASSEY FERGUSON | CC | 0 | 1986–1990 | |||
| MASSEY FERGUSON | CC | 0 | 1986–1997 | |||
| MASSEY FERGUSON | CC | 0 | 1991–1997 | |||
| MASSEY FERGUSON | CC | 0 | 1983–1984 | |||
| MASSEY FERGUSON | MF 4255 | 0 | 1997–2000 | |||
| URSUS | 4502 | 0 | – | |||
| URSUS | 4822 | 0 | – | |||
| URSUS | 4824 | 0 | – | |||
| URSUS | 5322 | 0 | – | |||
| URSUS | 5324 | 0 | – | |||
| URSUS | 6012 | 0 | – | |||
| URSUS | 6014 | 0 | – | |||
| URSUS | 6612 | 0 | – | |||
| URSUS | 6614 | 0 | – | |||
| URSUS | 3.8 | 1042 | 4390 | 0 | – | |
| URSUS | 3.8 | 1044 | 4390 | 0 | – | |
| URSUS | 3.8 | 4504 | 4390 | 0 | – | |
| URSUS | 3.8 | 4512 | 4390 | 0 | – | |
| URSUS | 3.8 | 4514 | 4390 | 0 | – | |
| URSUS | 3.8 | 5312 | 4390 | 0 | – | |
| URSUS | 3.8 | 5314 | 4390 | 0 | – | |
| URSUS | 4.0 | 5712 | 4410 | 0 | – | |
| URSUS | 4.0 | 5714 | 4410 | 0 | – |
