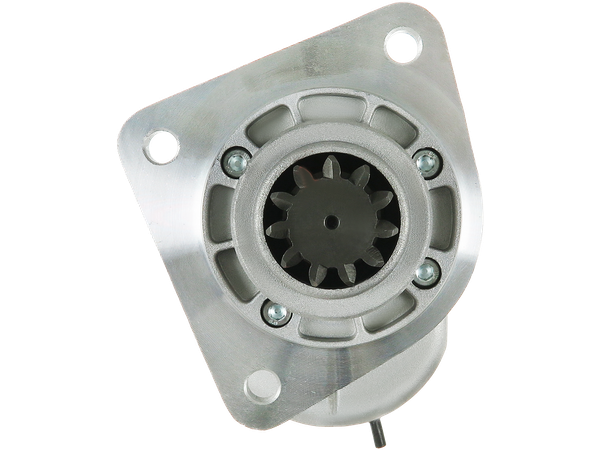

S9049
Startmotorer
STANDARD LINE
1024 kr
Köp nu
| EAN | 5901259437720 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETON |
| OE-nummer | 9142742 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.50 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 236.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 16 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| URSUS | 935 | Z8401.12 | 0 | – | ||
| URSUS | C 385 | 0 | – | |||
| URSUS | 4.5 | 1012 | Z8002.1Turbo | 0 | – | |
| URSUS | 4.5 | 1014 | Z8002.1Turbo | 0 | – | |
| URSUS | 4.5 | 1033 | Z8002.13 | 0 | – | |
| URSUS | 4.5 | 1035 | Z8002.13 | 0 | – | |
| URSUS | 4.5 | 1133 | Z8002.12 | 0 | – | |
| URSUS | 4.5 | 1135 | Z8002.12 | 0 | – | |
| URSUS | 4.5 | 912 | Z8401.1 | 0 | – | |
| URSUS | 4.5 | 914 | Z8401.1 | 0 | – | |
| URSUS | 4.5 | 933 | Z8401.12 | 0 | – | |
| ZETOR | 10011 | 8002 | 0 | 1975–1980 | ||
| ZETOR | 10045 | 8002 | 0 | 1975–1980 | ||
| ZETOR | 12011 | 8601 | 0 | 1969–1980 | ||
| ZETOR | 8011 | 8001 | 0 | – | ||
| ZETOR | 8045 | 8001 | 0 | 1969–1980 |
