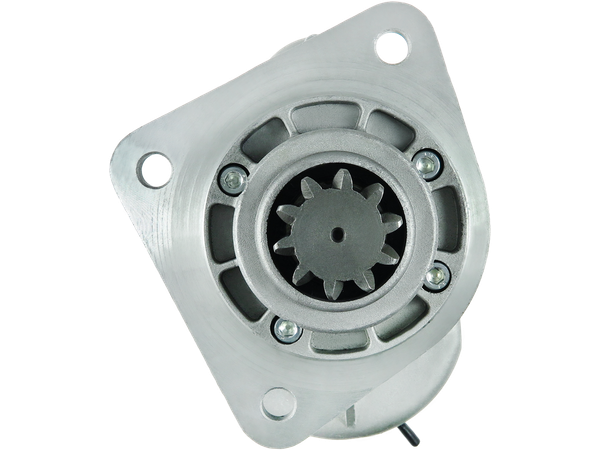

S9060
Startmotorer
STANDARD LINE
1092 kr
Köp nu
| EAN | 5901259437744 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETON |
| OE-nummer | 9142745 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 234.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 31 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| JOHN DEERE | 5055E | Series 5 | 3029HPY42 | 55-56 | 2011– | |
| JOHN DEERE | 5055E | Series 5 | 3029H55 | 55-56 | 2011– | |
| JOHN DEERE | 5065E | Series 5 | 3029HPY41 | 65 | 2011– | |
| JOHN DEERE | 5065E | Series 5 | 3029H65 | 65 | 2011– | |
| JOHN DEERE | 5065M | Series 5 | 65 | 2009– | ||
| JOHN DEERE | 5075E | Series 5 | 3029H75 | 75 | 2011– | |
| JOHN DEERE | 5075E | Series 5 | 3029HPY40 | 75 | 2011– | |
| JOHN DEERE | 5210, 5310 | Series 5010 | 3029TAT50 | 45-55 | 1998–2001 | |
| JOHN DEERE | 5210, 5310 | Series 5010 | 3029DAT50 | 45-55 | 1998–2001 | |
| JOHN DEERE | 5300 | Series 5000 | 3029DF150 | 56 | 1996–2000 | |
| JOHN DEERE | 5400 | Series 5000 | 3029TAT50 | 71 | 1996–2000 | |
| JOHN DEERE | 5500 | Series 5000 | 4039TAT01 | 80 | 1996–2000 | |
| JOHN DEERE | 6110 E | Series 6010 | 110 | 1999– | ||
| JOHN DEERE | 6125 E | Series 6010 | 125 | 1997–2003 | ||
| JOHN DEERE | 6140R | Series 6 | 6068HL490 | 140 | 2012– | |
| JOHN DEERE | 6150M | Series 6 | 6068HL490 | 150 | 2012– | |
| JOHN DEERE | 6150R | Series 6 | 6068HL490 | 150 | 2012– | |
| JOHN DEERE | 6170M | Series 6 | 6068HL490 | 170 | 2012– | |
| JOHN DEERE | 6170R | Series 6 | 6068HL495 | 170 | 2012– | |
| JOHN DEERE | 6190R | Series 6 | 6068HL497 | 190 | 2012– | |
| JOHN DEERE | 6210R | Series 6 | 6068HL497 | 210 | 2012– | |
| JOHN DEERE | 6410, 6510 | Series 6010 | 105 | 1997–2001 | ||
| JOHN DEERE | 6530 | Series 6 | 6068HL280 | 120 | 2009– | |
| JOHN DEERE | 6610 | Series 6010 | 114 | 1997–2003 | ||
| JOHN DEERE | 6630 | Series 6 | 6068HL282 | 135 | 2009– | |
| JOHN DEERE | 6810 | Series 6010 | 125 | 1997–2003 | ||
| JOHN DEERE | 6830 | Series 6 | 6068HL283 | 146 | 2009– | |
| JOHN DEERE | 6910 | Series 6010 | 135-140 | 1999–2003 | ||
| JOHN DEERE | 6930 | Series 6 | 6068HL283 | 146 | 2009– | |
| JOHN DEERE | 7600 | Series 7000 | 6068TRW01 | 131 | 1992–1997 | |
| JOHN DEERE | 7610 | Series 7010 | 6068TRW52 | 140 | 1997–2003 |
