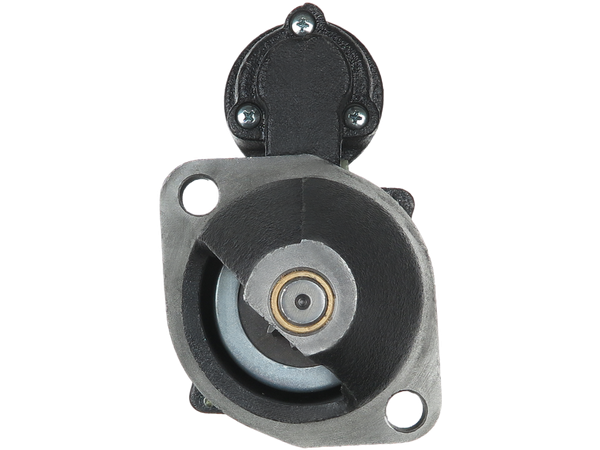

S9069
Startmotorer
STANDARD LINE
1425 kr
Köp nu
| EAN | 5901259443240 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | MS89 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.00 |
| B-storlek [ mm ] | 35.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 321.00 |
| O.1 [ mm ] | 105.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
Passar i 96 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BOBCAT | 975 | 0 | 1989–1990 | |||
| BOBCAT | 975 | 4-276 | 0 | 1985–1990 | ||
| CLAAS | 65 | 3.029D | 0 | – | ||
| CLAAS | 75 | 4.039 | 0 | – | ||
| CLAAS | 75 | 4.045D | 0 | – | ||
| CLAAS | 75X | 0 | – | |||
| CLAAS | 85 | 0 | – | |||
| CLAAS | 4.0 | 540 | 4.039T | 0 | – | |
| CLAAS | 4.0 | 550 | 4.039T | 0 | – | |
| CLARK | 795 | 0 | 1989–1990 | |||
| CLARK | 795 | 4-276 | 0 | 1989–1990 | ||
| COMPAC | 2.9 | T40 | 3029 | 0 | 1997– | |
| COMPAC | 2.9 | T40D | 3029 | 0 | 1997– | |
| COMPAC | 2.9 | T40PD | 3029 | 0 | 1997– | |
| COMPAC | 2.9 | T50 | 3029 | 0 | 1997– | |
| COMPAC | 2.9 | T50D | 3029 | 0 | 1997– | |
| COMPAC | 2.9 | T50PD | 3029 | 0 | 1997– | |
| COMPAC | 2.9 | T60 | 3029 | 0 | 1997– | |
| COMPAC | 2.9 | T60D | 3029 | 0 | 1997– | |
| COMPAC | 2.9 | T60PD | 3029 | 0 | 1997– | |
| INGERSOLL RAND | P 185 | 0 | 1997– | |||
| INGERSOLL RAND | P 250 | 0 | 1997– | |||
| JOHN DEERE | 2.7 | 1020 | 3.164DL-04 | 0 | 1971–1975 | |
| JOHN DEERE | 2.7 | 1030 | 3.164DL-04 | 0 | 1975–1979 | |
| JOHN DEERE | 2.7 | 1030 OU | 3.164DL-04 | 0 | 1975–1979 | |
| JOHN DEERE | 2.7 | 1130 | 3.164DL-13 | 0 | 1975–1979 | |
| JOHN DEERE | 2.7 | 1530 | 3.164DL-13 | 0 | 1972–1975 | |
| JOHN DEERE | 2.7 | MD 925 | 3.164DZ-02 | 0 | 1974–1978 | |
| JOHN DEERE | 2.9 | 1040 | 3.179DL-06 | 0 | 1979–1986 | |
| JOHN DEERE | 2.9 | 1040V | 3.179DL-06 | 0 | 1979–1986 | |
| JOHN DEERE | 2.9 | 1140 | 3.179DL-01 | 0 | 1979–1986 | |
| JOHN DEERE | 2.9 | 1140F | 3.179DL-01 | 0 | 1979–1986 | |
| JOHN DEERE | 2.9 | 1140V | 3.179DL-01 | 0 | 1979–1986 | |
| JOHN DEERE | 2150 | Series 2050 | 46 | 1983– | ||
| JOHN DEERE | 2350 | Series 2050 | 56 | 1983–1986 | ||
| JOHN DEERE | 2550 | Series 2050 | 65 | 1983–1986 | ||
| JOHN DEERE | 2750 | Series 2050 | 56 | 1983–1986 | ||
| JOHN DEERE | 2950 | Series 2050 | 85 | 1983–1986 | ||
| JOHN DEERE | 3.9 | MD 952 | 4.239TZ-01 | 0 | 1977–1983 | |
| JOHN DEERE | 3100 A | Series 3000 | 3029DRT65 | 56 | 1995–1998 | |
| JOHN DEERE | 3110 A | Series 3010 | 56 | 1998–2001 | ||
| JOHN DEERE | 3400 A, 3400 AX | Series 3000 | 85 | 1995–1998 | ||
| JOHN DEERE | 3410 A | Series 3010 | 86 | 1998–2001 | ||
| JOHN DEERE | 5.4 | 3130 | 6.329DL-11 | 0 | 1972–1979 | |
| JOHN DEERE | 5.4 | MD 955 | 6.329DZ-02 | 0 | 1975–1983 | |
| JOHN DEERE | 5.4 | MD 960 | 6.329DZ-02 | 0 | 1972–1974 | |
| JOHN DEERE | 5.9 | 3140 | 6.359DL-03 | 0 | 1979–1987 | |
| JOHN DEERE | 5.9 | MD 1065 | 6.359TZ-03 | 0 | 1994– | |
| JOHN DEERE | 5.9 | MD 1075 | 6.359TZ-02 | 0 | 1994– | |
| JOHN DEERE | 5.9 | MD 1085 | 6.466TZ-01 | 0 | 1994– | |
| JOHN DEERE | 5.9 | MD 965 | 6.359TZ-03 | 0 | 1975–1983 | |
| JOHN DEERE | 5.9 | MD 968H | 6.359TZ-03 | 0 | 1981–1983 | |
| JOHN DEERE | 5.9 | MD 970 | 6.359TZ-01 | 0 | 1974–1975 | |
| JOHN DEERE | 5.9 | MD 975 | 6.359TZ-02 | 0 | 1975–1981 | |
| JOHN DEERE | 5300 | Series 5000 | 3029DF150 | 56 | 1996–2000 | |
| JOHN DEERE | 5400 | Series 5000 | 3029TAT50 | 71 | 1996–2000 | |
| JOHN DEERE | 5410 | Series 5010 | 4045DLV51 | 65 | 1998–2001 | |
| JOHN DEERE | 5410 | Series 5010 | 4045DLV50 | 65 | 1998–2001 | |
| JOHN DEERE | 5415, 5515, 5615 | Series 5015 | 74-88 | 2003–2008 | ||
| JOHN DEERE | 5500 | Series 5000 | 4039TAT01 | 80 | 1996–2000 | |
| JOHN DEERE | 5510 | Series 5010 | 4045TLV50 | 75 | 1998–2001 | |
| JOHN DEERE | 5510 | Series 5010 | 4045TAT50 | 75 | 1998–2001 | |
| JOHN DEERE | 5510 | Series 5010 | 4045TLV51 | 75 | 1998–2001 | |
| JOHN DEERE | 5620, 5720 | Series 5020 | 72-80 | 2003– | ||
| JOHN DEERE | 6010 SE, 6110, 6110 SE | Series 6010 | 75-80 | 1997–2003 | ||
| JOHN DEERE | 6020 SE, 6120 | Series 6020 | 75-80 | 2004–2007 | ||
| JOHN DEERE | 6100 | Series 6000 | 4045DL002 | 75 | 1992–1997 | |
| JOHN DEERE | 6105R | Series 6 | 4045HL497 | 105 | 2012– | |
| JOHN DEERE | 6200 | Series 6000 | 4039TL004 | 84 | 1992–1997 | |
| JOHN DEERE | 6210 | Series 6010 | 90 | 1999–2003 | ||
| JOHN DEERE | 6210R | Series 6 | 210 | 2011– | ||
| JOHN DEERE | 6210R | Series 6 | 6068HL497 | 210 | 2012– | |
| JOHN DEERE | 6300 | Series 6000 | 4039TL006 | 90 | 1992–1997 | |
| JOHN DEERE | 6310, 6310SE, 6410 SE | Series 6010 | 100 | 1999–2003 | ||
| JOHN DEERE | 6310L | Series 6010 | 135 | 1999–2003 | ||
| JOHN DEERE | 6320, 6420 | Series 6020 | 101-110 | 2002–2007 | ||
| JOHN DEERE | 6400 | Series 6000 | 4045TL003 | 99 | 1992–1997 | |
| JOHN DEERE | 6403 | Series 6000 | 106 | 1992–1997 | ||
| JOHN DEERE | 6520 | Series 6020 | 116 | 2002–2007 | ||
| JOHN DEERE | 6600 | Series 6000 | 6059TL001 | 110 | 1994–1997 | |
| JOHN DEERE | 6603 | Series 6000 | 120 | 1997– | ||
| RENAULT AGRICULTURE | Ares 540 | 4039T | 0 | – | ||
| RENAULT AGRICULTURE | Ares 550 | 4039T | 0 | – | ||
| RENAULT AGRICULTURE | Ceres 65 | 3029D | 0 | – | ||
| RENAULT AGRICULTURE | Ceres 75 | 4039D | 0 | – | ||
| RENAULT AGRICULTURE | Ceres 75X | 4039D | 0 | – | ||
| RENAULT AGRICULTURE | Ceres 85 | 4045D | 0 | – | ||
| RENAULT AGRICULTURE | Ceres 85X | 4045D | 0 | – | ||
| RENAULT AGRICULTURE | Ceres 95 | 4039T | 0 | – | ||
| RENAULT AGRICULTURE | Ceres 95X | 4039T | 0 | – | ||
| RENAULT AGRICULTURE | Cergos 330 | 4045D | 0 | – | ||
| RENAULT AGRICULTURE | Cergos 340 | 4039T | 0 | – | ||
| RENAULT AGRICULTURE | Cergos 350 | 4045T | 0 | – | ||
| RENAULT AGRICULTURE | Ergos 105 | 4045T | 0 | – | ||
| RENAULT AGRICULTURE | Ergos 85 | 4045D | 0 | – | ||
| RENAULT AGRICULTURE | Ergos 95 | 4039T | 0 | – |
