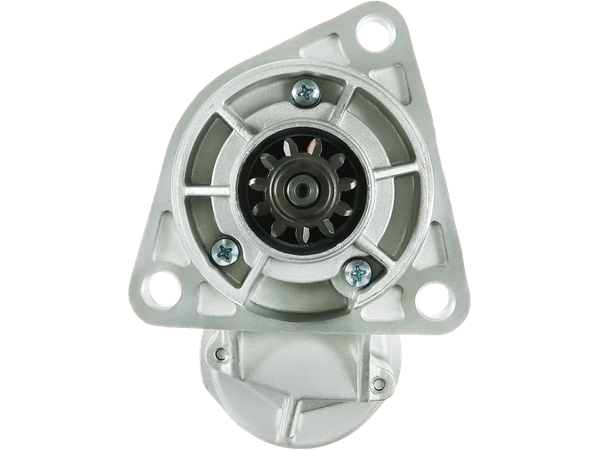

S9167
Startmotorer
STANDARD LINE
1158 kr
Köp nu
| EAN | 5902129003472 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer |
AINDE: CGB-23029, CGB-23029E ALANKO: 10440959 AS-PL: S9167, UD11126S ATL AUTOTECHNIK: A91580 AUTO MAGNETO: AM-2189ND AUTOTEAM: SPO600A BOSCH: F042000093, F042000108, F042200211, F042S00093, F042S00108 BTS TURBO: S101406, S102684 CARGO: 112502, 112649, F032112502, F032112649 CARWOOD GROUP: BREF032112502 CASCO: CST41600AS, CST41600GS CEVAM: 8161 DA SILVA: 040255, 040857 DAEWOO: 6526201-7044 DELCO: DRS3217, DRS3217N DENSO: 021000-3290, 021000-3291, 028000-6200, 028000-6201, 028000-6202, 028000-8500, 028080-6202, DSN2054 DIXIE: 246-25260, S-80288 DRI: 643008114 ELECTROLOG: STR8801ND ELSTOCK: 45-1393 FRIESEN: 8880895 ISUZU: 1811000360, 1811001410, 1811001411, 1811001912, 1811002530, 1811002531, 5811000180, 581100180, 8811002531 ITAB AUTOMOTIVE: 10041600AV, 10041600OV KRAUF: STY2721, STY7044 KUHNER: 254492 LOGISTIK: 335596 LUCAS: LRS01873, LRS1873 MAHLE: MS914, MS931 NIKKO: 0-23000-2340, 0-23000-2341, 0-23000-3010, 0-23000-3661, 0-24000-3080, 0-24000-3082 POONGSUNG: 03112-7021, 03112-70210 PSH: 261.505.113.200, 261.505.113.440, 261.511.113.140, 261.511.113.340, 261.511.113.510, 261.511.113.710, 261.511.113.711, S132.537 REAL: 20428006BN, 20428006OE ROBERT'S: 190-25241 SANDO: 6041600.0, 6041600.1 SIOM: MAV436000, MAV436000A TESLA TECHNICS: TT15090 TMI: ST02548 WAI / TRANSPO: 18100N, 18100N-ND, 18100NND, 18100R, 18100RND, 22105ND WILSON: 91-29-5549, 91-29-5549N, 91-33-1000 WOODAUTO: DENDSN2054, MAHMS914, STR29001, STR43001, STR6160, STR6176, STR75214, WOOSTR43001, WOOSTR75214 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 105.00 |
| B-storlek [ mm ] | 38.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 296.00 |
| O.1 [ mm ] | 111.00 |
| O.2 [ mm ] | 111.00 |
| O.3 [ mm ] | 135.00 |
| C.1 [ mm ] | 14.00 |
| C.2 [ mm ] | 14.00 |
| C.3 [ mm ] | 14.00 |
Passar i 2 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ISUZU | Engine | 6BD1T | 0 | – | ||
| ISUZU | 3.6 | ELF | 6BB1 | 0 | – |
