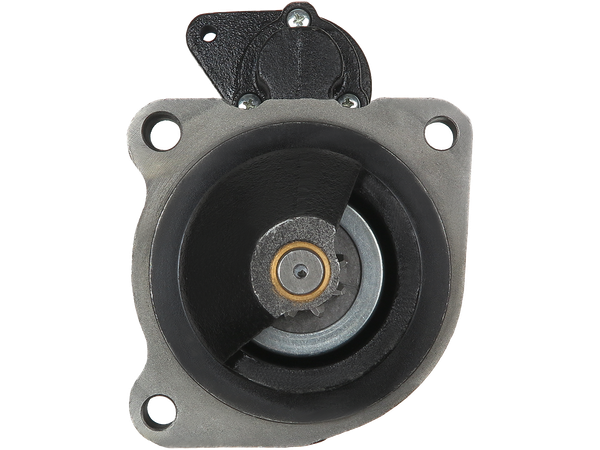

S9243
Startmotorer
STANDARD LINE
1570 kr
Köp nu
| EAN | 5902129020325 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | AZF4155 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 4.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 110.00 |
| B-storlek [ mm ] | 28.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 321.00 |
| O.1 [ mm ] | 146.00 |
| O.2 [ mm ] | 103.00 |
| O.3 [ mm ] | 103.00 |
| C.1 [ mm ] | 12.00 |
| C.2 [ mm ] | 12.00 |
| C.3 [ mm ] | 12.00 |
Passar i 33 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 65A, 75A | FARMALL | 65-72 | 2012– | ||
| CASE IH | 85A | FARMALL | 82 | 2012– | ||
| CASE IH | 95A | FARMALL | 95 | 2012– | ||
| CASE IH | JX 80, JX 90 | JX-SERIES | 80-90 | 2007–2008 | ||
| CASE IH | JX 95 | JX-SERIES | 94 | 2007–2008 | ||
| FIAT | 80-90 | 90 | 8045.05.000 | 80 | 1984–1992 | |
| NEW HOLLAND | 5.100 | TD 5 | 98 | 2011– | ||
| NEW HOLLAND | 5.105 | TD 5 | 106 | 2011– | ||
| NEW HOLLAND | 5.115 | TD 5 | 113 | 2011– | ||
| NEW HOLLAND | 5.75 | TD 5 | 76 | 2011– | ||
| NEW HOLLAND | 5.90 | TD 5 | 88 | 2011– | ||
| NEW HOLLAND | 5.95 | TD 5 | 95 | 2011– | ||
| NEW HOLLAND | L60 | L | 8045.06 | 61 | 1995–1998 | |
| NEW HOLLAND | L65 | L | 8045.06 | 66 | 1995–1998 | |
| NEW HOLLAND | L75 | L | 8045.05 | 76 | 1995–1998 | |
| NEW HOLLAND | L85 | L | 8045.25 | 86 | 1995–1998 | |
| NEW HOLLAND | L95 | L | 8045.25 | 96 | 1995–1998 | |
| NEW HOLLAND | TL100 | TL | 101 | 1999–2003 | ||
| NEW HOLLAND | TL60 | TL | 61 | 1999–2004 | ||
| NEW HOLLAND | TL65 | TL | 66 | 1999–2004 | ||
| NEW HOLLAND | TL70 | TL | 71 | 1999–2004 | ||
| NEW HOLLAND | TL80 | TL | 82 | 1999–2003 | ||
| NEW HOLLAND | TL80A | TL-A | 82 | 2004– | ||
| NEW HOLLAND | TL90 | TL | 91 | 1999–2003 | ||
| NEW HOLLAND | TN60DA | TN-A | 59 | 2004–2008 | ||
| NEW HOLLAND | TN60SA | TN-A | 59 | 2004–2008 | ||
| NEW HOLLAND | TN65F | TN | 8045.06 | 60 | 1999–2002 | |
| NEW HOLLAND | TN70DA, TN75DA | TN-A | 72-76 | 2004–2008 | ||
| NEW HOLLAND | TN75FA | TNF-A | 8045.05 | 72-76 | 2004– | |
| NEW HOLLAND | TN75FA | TNF-A | 8045.05 | 73-76 | 2004– | |
| NEW HOLLAND | TN85FA | TNF-A | 84 | 2004– | ||
| NEW HOLLAND | TN90F | TN | 90 | 1999–2001 | ||
| NEW HOLLAND | TN95FA | TNF-A | 92 | 2004– |
