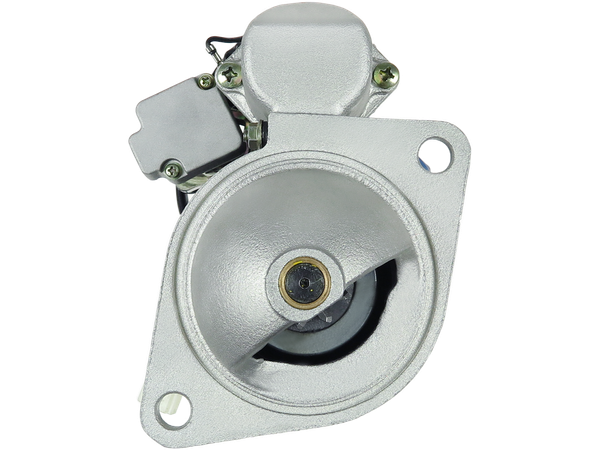

S9247
Startmotorer
STANDARD LINE
1649 kr
Köp nu
| EAN | 5902129022916 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer |
AS-PL: UD11085S ELECTROLOG: STR8846 KOMATSU: 600-813-2101, 600-813-2151 NIKKO: 0-21000-4830, 0-21000-4831, 02-21-2032 PSH: 941.519.092, S136.124, S144.140 ROBERT'S: 185-21020 WAI / TRANSPO: UNIT BOM 185-225 WILSON: 91-28-4073 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 3.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 94.00 |
| B-storlek [ mm ] | 18.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 299.00 |
| O.1 [ mm ] | 145.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
Passar i 11 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOMATSU | D20 | 4D94-2 | 0 | 1986–1987 | ||
| KOMATSU | D21 | 4D94-2 | 0 | 1986–1987 | ||
| KOMATSU | EC 30 | 4D94 | 0 | 1981–1985 | ||
| KOMATSU | EC35V | 4D94 | 0 | 1981–1985 | ||
| KOMATSU | EC50 | 4D94 | 0 | 1981–1985 | ||
| KOMATSU | EC50Z | 4D94 | 0 | 1981–1985 | ||
| KOMATSU | EG30 | 4D94 | 0 | 1981–1982 | ||
| KOMATSU | EG30S | 4D94 | 0 | 1981–2008 | ||
| KOMATSU | PC100 | 4D105 | 0 | 1981–1983 | ||
| KOMATSU | PC120 | 4D105 | 0 | 1981–1983 | ||
| KOMATSU | PC60 | 4D94 | 0 | 1981–1985 |
