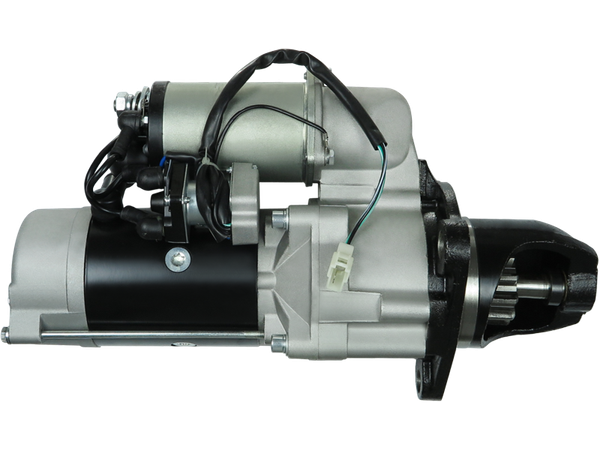

S9275
Startmotorer
STANDARD LINE
2137 kr
Köp nu
| EAN | 5902129038627 |
| Tillverkare | AS-PL |
| Ersätter | UNIVERSAL |
| OE-nummer |
3EFFE: ALTE457 CARGO: 110555, F032110555 ELECTROLOG: STR8861 FARCOM: 103986 KOMATSU: 600-813-3530, 600-863-5711, 6008133630, 6008133632, 6008133681, 6008134530, 6008134531, 6008134532, 6008134533, 6008134680 KUHNER: 20739, 20739N, 20739P NIKKO: 0-23000-3150, 0-23000-3151, 0-23000-3152, 0-23000-3153, 0-23000-3180, 0-23000-3184, 0-23000-3185, 0-23000-3186, 0-23000-3278, 0-23000-3330, 0-23000-3340, 0-23000-3341, 0-23000-6250, 0-23000-6251, 0-23000-7022 SIOM: ALT131040, MAV526040 WAI / TRANSPO: 18084N WOODAUTO: STR75203 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 412.00 |
| O.1 [ mm ] | 125.00 |
| O.2 [ mm ] | 125.00 |
| O.3 [ mm ] | 125.00 |
| C.1 [ mm ] | 17.00 |
| C.2 [ mm ] | 17.00 |
| C.3 [ mm ] | 17.00 |
| Oil sealed | Yes |
| Wet clutch | Yes |
Passar i 3 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOMATSU | Engine | S6D125 | 0 | – | ||
| KOMATSU | PC300-6 | 0 | – | |||
| KOMATSU | PC300-7 | 0 | – |
