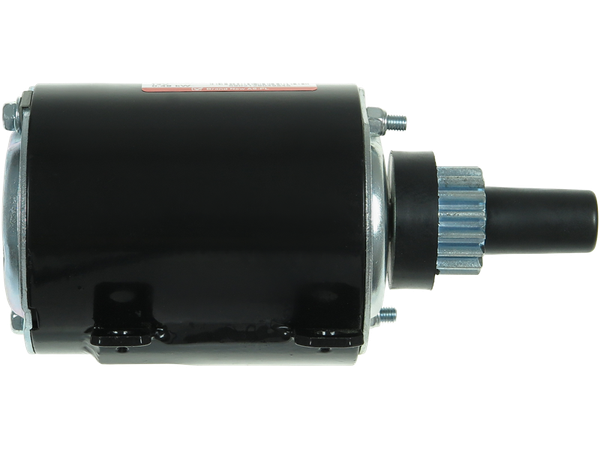

S9286S
Startmotorer
STANDARD LINE
510 kr
Köp nu
| EAN | 5902129049845 |
| Tillverkare | AS-PL |
| Ersätter | BRIGGS STRATTON |
| OE-nummer |
3EFFE: STRF336 ALANKO: 10440833 ARROWHEAD: STC0006 AS-PL: UD03132S, UD13663S CARGO: 112312, F032112312 ELECTROLOG: STR7642 JOHN DEERE: AM30931 KRAUF: STZ0212, STZ5749 LESTER: 5749 PSH: 400.099.160.190, S132.668 TECUMSEH: 32468B, 33202, 33605, 33606, 35763, 35763A, 36463, 36680 WAI / TRANSPO: 107415, 2-2194, 5749N WOODAUTO: STR88301, WOOSTR88301 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.48 |
| Startmotors rotation | ACW |
| B-storlek [ mm ] | 33.50 |
| Antal kuggar [ qty. ] | 16 |
| Antal hål i huvudet [ qty. ] | 4 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 172.00 |
| O.1 [ mm ] | 58.00 |
| O.2 [ mm ] | 88.00 |
| O.3 [ mm ] | 58.00 |
| O.4 [ mm ] | 88.00 |
| C.1 [ mm ] | 7.00 |
| C.2 [ mm ] | 7.00 |
| C.3 [ mm ] | 7.00 |
| C.4 [ mm ] | 7.00 |
Passar i 8 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| TECUMSEH | Engine | OVM120 | 0 | – | ||
| TECUMSEH | Engine | TVM170 | 0 | – | ||
| TECUMSEH | Engine | TVXL170 | 0 | – | ||
| TECUMSEH | Engine | HM70 | 0 | – | ||
| TECUMSEH | Engine | OVXL120 | 0 | – | ||
| TECUMSEH | Engine | TVM220 | 0 | – | ||
| TECUMSEH | Engine | HM100 | 0 | – | ||
| TECUMSEH | Engine | TVXL220 | 0 | – |
