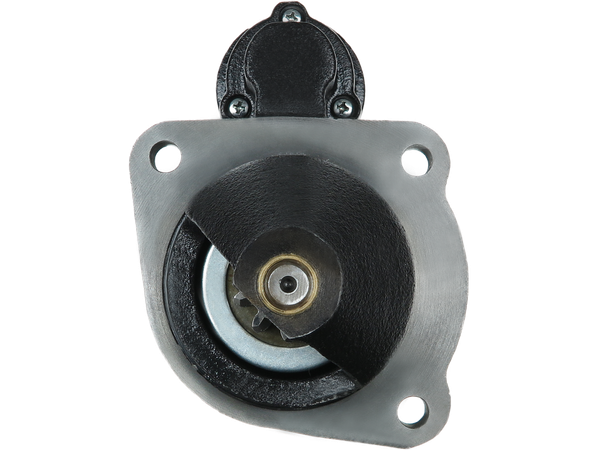

S9295S
Startmotorer
STANDARD LINE
1451 kr
Köp nu
| EAN | 5902129097792 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | 11.131.921 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 27.50 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 277.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
| C.3 [ mm ] | 10.50 |
Passar i 72 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 105C | FARMALL | 107 | 2012– | ||
| CASE IH | 106U | FARMALL | 107 | 2012– | ||
| CASE IH | 115U | FARMALL | 114 | 2012– | ||
| CASE IH | 55C, 65C | FARMALL | 56-65 | 2012– | ||
| CASE IH | 65A, 75A | FARMALL | 65-72 | 2012– | ||
| CASE IH | 65C, 75C | QUANTUM | 65-78 | 2009– | ||
| CASE IH | 65V, 75V | QUANTUM | 65-77 | 2009– | ||
| CASE IH | 75C | FARMALL | 75 | 2012– | ||
| CASE IH | 75F, 85F | QUANTUM | 78-88 | 2009– | ||
| CASE IH | 75N, 85N | QUANTUM | 78-88 | 2009– | ||
| CASE IH | 85A | FARMALL | 82 | 2012– | ||
| CASE IH | 85C, 95C | FARMALL | 86-99 | 2012– | ||
| CASE IH | 85V | QUANTUM | 88 | 2009– | ||
| CASE IH | 95U | FARMALL | 99 | 2012– | ||
| CASE IH | JX 70 | JX-SERIES | 69 | 2007–2008 | ||
| CASE IH | JX 80, JX 90 | JX-SERIES | 80-90 | 2007–2008 | ||
| CLAAS | 210 | ELIOS | 75 | 2012– | ||
| CLAAS | 210 | NEXOS | 72 | 2009– | ||
| CLAAS | 220 | ELIOS | 83-85 | 2012– | ||
| CLAAS | 220 | NEXOS | 78 | 2009– | ||
| CLAAS | 230 | ELIOS | 91-92 | 2012– | ||
| CLAAS | 230 | ELIOS | 88 | 2012– | ||
| CLAAS | 230 | NEXOS | 88 | 2009– | ||
| CLAAS | 240 | ELIOS | 98-103 | 2012– | ||
| EUROMACCHINE | 3.2 | FT 22 | FPTF32SM1A | 0 | – | |
| EUROMACCHINE | 3.2 | J8-305 | FPTF32MNSDOO | 0 | – | |
| EUROMACCHINE | 3.2 | LA 01 AO | FPTF32SM1A | 0 | – | |
| EUROMACCHINE | 3.2 | LA 01 SP | FPTF32SM1A | 0 | – | |
| EUROMACCHINE | 3.2 | LA 02 SP | FPTF32SM1A | 0 | – | |
| EUROMACCHINE | 3.2 | MP 01 IC | FPTF32MNSX | 0 | – | |
| EUROMACCHINE | 3.2 | MP 02 IC | FPTF32MNSX | 0 | – | |
| EUROMACCHINE | 3.2 | MP 03 IC | FPTF32MNSX | 0 | – | |
| EUROMACCHINE | 3.2 | TF 23 | FPTF32TM1A | 0 | – | |
| EUROMACCHINE | 3.2 | TH 40 | FPTF32SM1A | 0 | – | |
| EUROMACCHINE | 3.2 | TH 50 | FPTF32TM1A | 0 | – | |
| NEW HOLLAND | 5.105 | TD 5 | 106 | 2011– | ||
| NEW HOLLAND | 5.115 | TD 5 | 113 | 2011– | ||
| NEW HOLLAND | 5.85 | TD 5 | 82 | 2011– | ||
| NEW HOLLAND | 5.95 | TD 5 | 95 | 2011– | ||
| NEW HOLLAND | T4.115 | T4 (PowerStar) | 114 | 2011– | ||
| NEW HOLLAND | T4.55, T4.65 | T4 (PowerStar) | 56-65 | 2011– | ||
| NEW HOLLAND | T4.65V, T4.75V | T4 (PowerStar) | 65-78 | 2011– | ||
| NEW HOLLAND | T4.75 | T4 (PowerStar) | 75 | 2011– | ||
| NEW HOLLAND | T4.75, T4.85 | T4 (PowerStar) | 75-86 | 2011– | ||
| NEW HOLLAND | T4.75F, T4.85F | T4 (PowerStar) | 78-88 | 2011– | ||
| NEW HOLLAND | T4.75N | T4 (PowerStar) | 78 | 2011– | ||
| NEW HOLLAND | T4.95, T4.105 | T4 (PowerStar) | 99-107 | 2011– | ||
| NEW HOLLAND | T4.95V, T4.105V | T4 (PowerStar) | 97-106 | 2011– | ||
| NEW HOLLAND | T4020 | T4000 | 65 | 2008– | ||
| NEW HOLLAND | T4030 | T4000 | 78 | 2008– | ||
| NEW HOLLAND | T4040 | T4000 | 86 | 2008– | ||
| NEW HOLLAND | T4050 | T4000 | 97 | 2008– | ||
| NEW HOLLAND | T5.95, T5.105, T5.115 | T5 | 99-113 | 2011– | ||
| NEW HOLLAND | T5030 | T5000 | 76 | 2008– | ||
| NEW HOLLAND | T5040 | T5000 | 86 | 2008– | ||
| NEW HOLLAND | T5050 | T5000 | 97 | 2008– | ||
| NEW HOLLAND | T5060 | T5000 | 106 | 2008– | ||
| NEW HOLLAND | T5070 | T5000 | 113 | 2008– | ||
| NEW HOLLAND | T6.150 | T6 | 154 | 2012– | ||
| NEW HOLLAND | TD4020F | TD4000F | 65 | 2011– | ||
| NEW HOLLAND | TD4030F | TD4000F | 78 | 2011– | ||
| NEW HOLLAND | TD4040F | TD4000F | 88 | 2011– | ||
| NEW HOLLAND | TL100A | TL-A | 101 | 2004– | ||
| NEW HOLLAND | TL70A | TL-A | 72 | 2004– | ||
| NEW HOLLAND | TL80A | TL-A | 82 | 2004– | ||
| NEW HOLLAND | TL90A | TL-A | 91 | 2004– | ||
| NEW HOLLAND | TN85DA | TN-A | 82 | 2004–2008 | ||
| NEW HOLLAND | TN85SA | TN-A | 82 | 2004–2008 | ||
| STEYR | 4055 S, 4065 S | KOMPAKT | 58-65 | 2011– | ||
| STEYR | 4075, 4085 | KOMPAKT | 75-86 | 2011– | ||
| STEYR | 4095, 4105, 4115 | KOMPAKT | 101-114 | 2011– | ||
| STEYR | 4095, 4105, 4115 | MULTI | 100-114 | 2012– |
