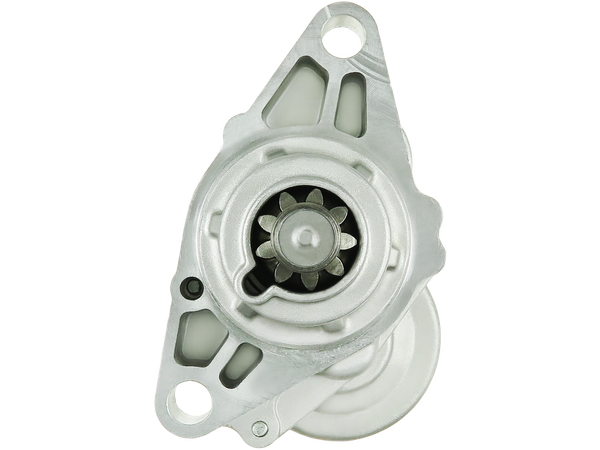

S9326S
Startmotorer
STANDARD LINE
834 kr
Köp nu
| EAN | 5902129054825 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBA |
| OE-nummer |
CASCO: CST33112, CST33112AS, CST33112ES, CST33112GS, CST33112OS, CST33112RS DELCO: 16115 DIXIE: S-80323 ELECTROLOG: STR5904 HONDA: 06312-RDB-515RM, 06312RDB515, 31200-RDB-A01, 31200-RDB-A01RM SANDO: 6033112 STARDAX: STX210211, STX210211R WAI / TRANSPO: 19016N, 19016R WILSON: 91-26-2144 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.60 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 70.00 |
| B-storlek [ mm ] | 59.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 257.00 |
| O.1 [ mm ] | 130.00 |
| C.1 [ mm ] | 14.00 |
| C.2 [ mm ] | 14.00 |
Passar i 4 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ACURA | 3.7 AWD | TL (UA8, UA9) | J37A4 | 309 | Petrol | 2012– |
| HONDA | 1.7 (BE1) | FR-V (BE) | D17A2 | 125 | Petrol | 2004– |
| HONDA | 1.7 16V (RN1) | STREAM (RN) | D17A2 | 125 | Petrol | 2001–2006 |
| HONDA | 1.7 16V (RN1) | STREAM (RN) | D17A5 | 125 | Petrol | 2001–2006 |
