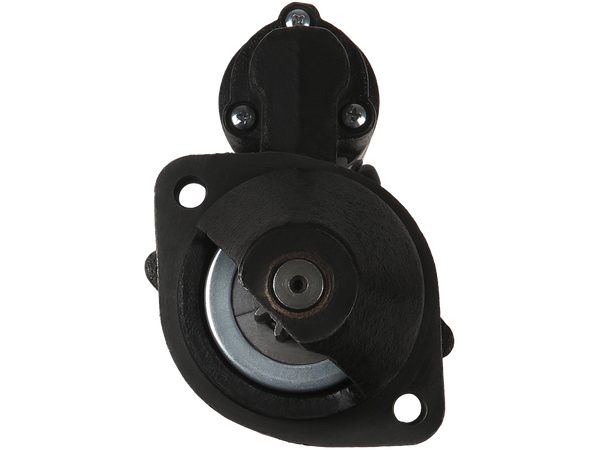

S9352S
Startmotorer
STANDARD LINE
1398 kr
Köp nu
| EAN | 5902129107767 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | 11.131.833 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.50 |
| B-storlek [ mm ] | 34.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 276.50 |
| O.1 [ mm ] | 105.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
Passar i 15 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| JOHN DEERE | 2350 | Series 2050 | 56 | 1983–1986 | ||
| JOHN DEERE | 2550 | Series 2050 | 65 | 1983–1986 | ||
| JOHN DEERE | 2950 | Series 2050 | 85 | 1983–1986 | ||
| JOHN DEERE | 5055E | Series 5 | 3029H55 | 55-56 | 2011– | |
| JOHN DEERE | 5055E | Series 5 | 3029HPY42 | 55-56 | 2011– | |
| JOHN DEERE | 5080G | Series 5 | 4045HAT80 | 80-82 | 2011– | |
| JOHN DEERE | 5090G | Series 5 | 4045HAT81 | 90 | 2011– | |
| JOHN DEERE | 5105M | Series 5 | 105 | 2009– | ||
| JOHN DEERE | 5210, 5310 | Series 5010 | 3029TAT50 | 45-55 | 1998–2001 | |
| JOHN DEERE | 5210, 5310 | Series 5010 | 3029DAT50 | 45-55 | 1998–2001 | |
| JOHN DEERE | 5300 | Series 5000 | 3029DF150 | 56 | 1996–2000 | |
| JOHN DEERE | 5410 | Series 5010 | 4045DLV51 | 65 | 1998–2001 | |
| JOHN DEERE | 5410 | Series 5010 | 4045DLV50 | 65 | 1998–2001 | |
| JOHN DEERE | 5415, 5515, 5615 | Series 5015 | 74-88 | 2003–2008 | ||
| JOHN DEERE | 5500 | Series 5000 | 4039TAT01 | 80 | 1996–2000 |
