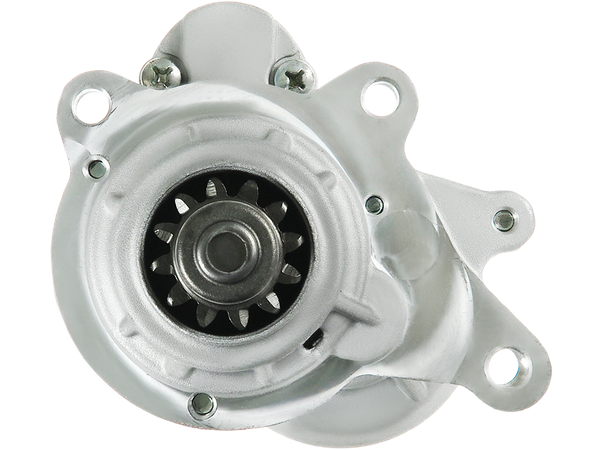

S9426S
Startmotorer
STANDARD LINE
1050 kr
Köp nu
| EAN | 5902129141037 |
| Tillverkare | AS-PL |
| Ersätter | FORD |
| OE-nummer |
AS-PL: UD21113S CARGO: 113703, F032113703 DIXIE: 6670S, 6670SN, S-2124 ELECTROLOG: STR89010 FORD: 3C3U-11000-AA, 3C3U-11000-AB, 3C3U-11000-AC, 3C3UAB, 3C3UAC, 3C3Z-11002-A, 3C3Z-11002-AA, 3C3Z-11002-AARM, 6C2T-11000-AA, 6C2T11000A, 6C2TAA, 6C2Z-11002-A, 6C2Z-11002-AA, 6C2Z-11V00-2ARM1, RM7U-2J11A-230BA KRAUF: STF3703 PSH: 590.570.123.020, S134.376 WAI / TRANSPO: 6670N WILSON: 91-02-5903, 91-02-5903N |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 76.00 |
| B-storlek [ mm ] | 47.50 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 251.00 |
| O.1 [ mm ] | 79.00 |
| O.2 [ mm ] | 80.00 |
| O.3 [ mm ] | 133.00 |
| C.1 [ mm ] | 9.00 |
| C.2 [ mm ] | 9.00 |
| C.3 [ mm ] | M12x1.75 |
Passar i 7 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FORD | 6.0 | E-350 | 363ci | 0 | 2004–2010 | |
| FORD | 6.0 | E-450 | 363ci | 0 | 2004–2010 | |
| FORD | 6.0 | Excursion | 363ci | 0 | 2003–2005 | |
| FORD | 6.0 | F-250 | 363ci | 0 | 2003–2007 | |
| FORD | 6.0 | F-350 | 363ci | 0 | 2003–2007 | |
| FORD | 6.0 | F-450 | 363ci | 0 | 2003–2007 | |
| FORD | 6.0 | F-550 | 363ci | 0 | 2003–2007 |
