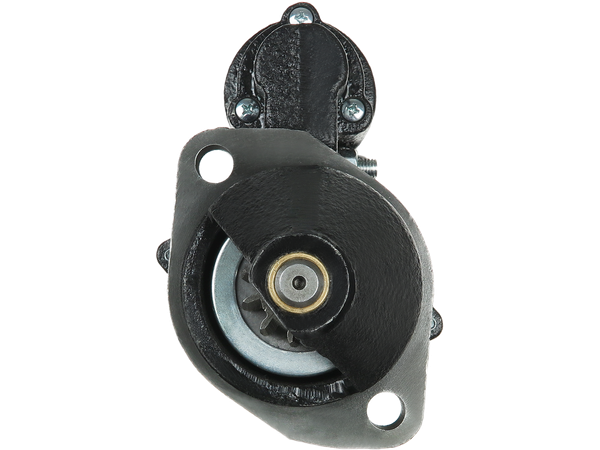

S9430S
Startmotorer
STANDARD LINE
1422 kr
Köp nu
| EAN | 5902129144946 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | IS1456 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.50 |
| B-storlek [ mm ] | 21.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 278.00 |
| O.1 [ mm ] | 105.00 |
| C.1 [ mm ] | 13.00 |
| C.2 [ mm ] | 13.00 |
Passar i 23 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HATZ | Engine | 2M41 | 0 | – | ||
| HATZ | Engine | 4L41 | 0 | – | ||
| HATZ | 1.7 | Engine | 2L41C | 0 | – | |
| HATZ | 1.7 | Engine | 2M41 | 0 | – | |
| HATZ | 2.6 | Engine | 3M43-DPF | 0 | – | |
| HATZ | 2.6 | Engine | 3M41 | 0 | – | |
| HATZ | 2.6 | Engine | 3M43-EGR | 0 | – | |
| HATZ | 2.6 | Engine | 3L41C | 0 | – | |
| HATZ | 3.4 | Engine | 4L42C | 0 | – | |
| HATZ | 3.4 | Engine | 4M43-DFP | 0 | – | |
| HATZ | 3.4 | Engine | 4M42 | 0 | – | |
| HATZ | 3.4 | Engine | 4M43 | 0 | – | |
| HATZ | 3.4 | Engine | 4M42-EGR | 0 | – | |
| HATZ | 3.4 | Engine | 4M41 | 0 | – | |
| HATZ | 3.4 | Engine | 4M43-EGR | 0 | – | |
| HUEDIG | 3.4 | SDVA 200 | 4L41C | 0 | – | |
| LOMBARDINI | 1.6 | 1503 M | 0 | 1996– | ||
| LOMBARDINI | 2.1 | 2004 M | 0 | 1996– | ||
| LOMBARDINI | 2.1 | 2004 TBI | 0 | 1996– | ||
| SELWOOD | 1.7 | HSP20 | 2L41C | 0 | – | |
| SELWOOD | 2.6 | HSP35 | 3L41C | 0 | – | |
| SELWOOD | 3.4 | H80 | 4L41C | 0 | – | |
| TURBOSOL | 2.6 | TB 30 | 3M41 | 0 | – |
