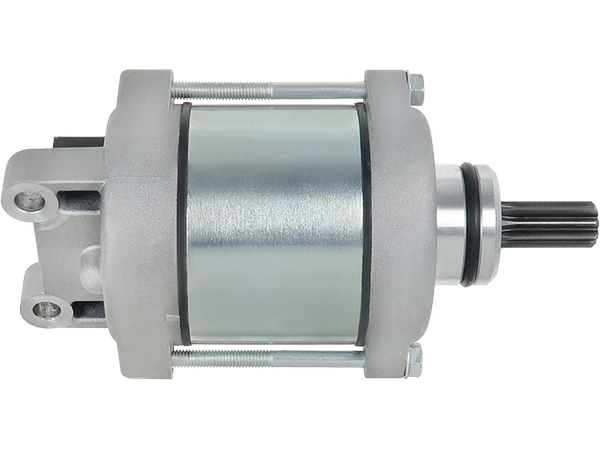

S9857S
Startmotorer
STANDARD LINE
479 kr
Köp nu
| EAN | 5902129235620 |
| Tillverkare | AS-PL |
| Ersätter | KTM |
| OE-nummer |
ARROWHEAD: SMU0531 AS-PL: UD102741S KTM: 77240001100 LESTER: 11834 WAI / TRANSPO: 11834N |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Startmotors rotation | CW |
| B-storlek [ mm ] | 42.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 144.00 |
| O.1 [ mm ] | 40.00 |
| C.1 [ mm ] | 7..00 |
| C.2 [ mm ] | 7.00 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KTM | EXC-F 250 | EXC | 14 | Petrol | 2015– | |
| KTM | EXC-F 250 | EXC | 18 | Petrol | 2011–2016 | |
| KTM | EXC-F 250 | EXC | 10 | Petrol | 2007–2015 | |
| KTM | EXC-F 250 | EXC | 14 | Petrol | 2006–2015 | |
| KTM | EXC-F 350 | EXC | 19 | Petrol | 2011–2015 | |
| KTM | SX-F 250 | SX | 42 | Petrol | 2005– |
