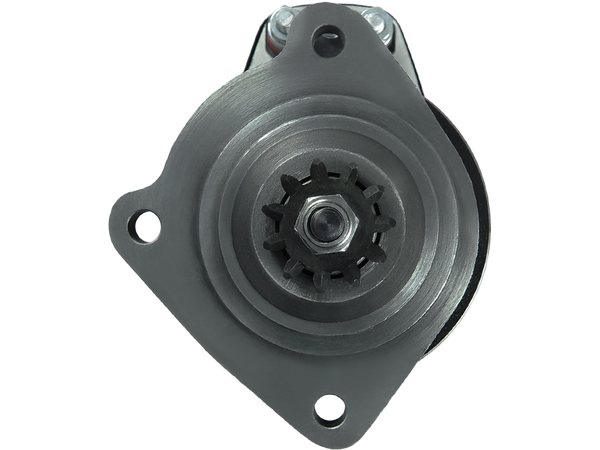

S0011
Startmotorer
STANDARD LINE
2280 kr
Köp nu
| EAN | 5901259418484 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001416036 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.5 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 386.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 89.00 |
| O.3 [ mm ] | 89.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| Oil sealed | Yes |
Passar i 30 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| IVECO | 170-23 AH | P/PA | F8L513 | 237 | 1988–1990 | |
| IVECO | 170-23 AH,180-23 AH | P/PA | F8L513 | 237 | 1991–1993 | |
| IVECO | 170-23 AHW | P/PA | F8L513 | 237 | 1988–1990 | |
| IVECO | 170-23 AHW,180-23 AHW | P/PA | F8L513 | 237 | 1991–1993 | |
| IVECO | 170-23 ANW | P/PA-Haubenfahrzeuge | F8L513 | 237 | 1988–1990 | |
| IVECO | 170-23 ANW | P/PA-Haubenfahrzeuge | F8L513 | 237 | 1990–1990 | |
| IVECO | 170-25 AH | P/PA | F8L513 | 264 | 1989–1990 | |
| IVECO | 170-25 AH,180-25 AH | P/PA | F8L513 | 264 | 1991–1993 | |
| IVECO | 170-25 AHW | P/PA | F8L513 | 264 | 1989–1990 | |
| IVECO | 170-25 AHW,180-25 AHW | P/PA | F8L513 | 264 | 1991–1993 | |
| IVECO | 170-34 AH | P/PA | BF8L513 | 340 | 1989–1990 | |
| IVECO | 170-34 AH | P/PA | BF8L513 | 340 | 1991–1993 | |
| IVECO | 170-34 AH,180-34 AH | P/PA | BF8L513 | 340 | 1991–1993 | |
| IVECO | 170-34 AHW | P/PA | BF8L513 | 340 | 1989–1990 | |
| IVECO | 170-34 AHW,180-34 AHW | P/PA | BF8L513 | 340 | 1991–1993 | |
| IVECO | 190-25 AH | P/PA | F8L413F | 256 | 1983–1986 | |
| IVECO | 190-25 AN | P/PA-Haubenfahrzeuge | F8L413F | 256 | 1986–1990 | |
| IVECO | 190-25 AN | P/PA-Haubenfahrzeuge | F8L413F | 256 | 1983–1987 | |
| IVECO | 190-25 AN | P/PA-Haubenfahrzeuge | F8L413F | 256 | 1983–1986 | |
| IVECO | 190-25 ANT | P/PA-Haubenfahrzeuge | F8L413F | 256 | 1986–1987 | |
| IVECO | 190-25 ANT | P/PA-Haubenfahrzeuge | F8L413F | 256 | 1983–1986 | |
| IVECO | 260-25 AH | P/PA | F8L513 | 264 | 1989–1992 | |
| IVECO | 260-25 AN | P/PA-Haubenfahrzeuge | F8L413F | 256 | 1983–1986 | |
| IVECO | 260-34 AH | P/PA | BF8L513 | 340 | 1991–1992 | |
| IVECO | 260-34 AH | P/PA | BF8L513 | 340 | 1989–1990 | |
| IVECO | 260-34 AHT | P/PA | BF8L513 | 340 | 1989–1990 | |
| IVECO | 260-34 AHT | P/PA | BF8L513 | 340 | 1991–1992 | |
| IVECO | 330-30 AN | P/PA-Haubenfahrzeuge | BF8L513 | 306 | 1986–1990 | |
| IVECO | 330-30 ANW | P/PA-Haubenfahrzeuge | BF8L513 | 306 | 1986–1990 | |
| IVECO | 340-34 AH | P/PA | BF8L513 | 340 | 1989–1992 |
