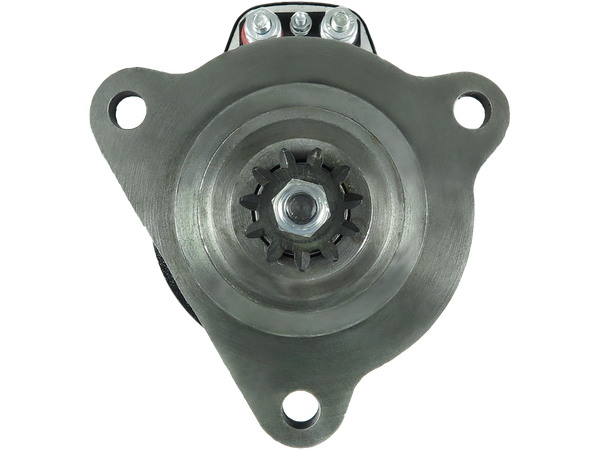

S0061

Name: S0061 — Startmotorer
SKU: S0061
Price: 2169 SEK
Availability: InStock

Startmotorer

STANDARD LINE

2169 kr Köp nu

EAN	5901259419160
Tillverkare	AS-PL
Ersätter	BOSCH
OE-nummer	0001417047
Datablad	Ladda ner PDF med skiss och mått

Specifikationer

Spänning [ V ]	24
Effekt [ kW ]	6.60
Startmotors rotation	CW
A-storlek [ mm ]	92.00
B-storlek [ mm ]	47.00
Antal kuggar [ qty. ]	11
Antal kuggar (passar in) [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	406.00
O.1 [ mm ]	126.00
O.2 [ mm ]	126.00
O.3 [ mm ]	126.00
Oil sealed	Yes
Insulated return	Yes

Passar i 100 fordon

Märke	Modell	Typ	Motor	Hk	År
SCANIA	113 M/400	3 - series	DTC11.01	401	1992–1996
SCANIA	113 M/400	3 - series	DTC11.02	401	1993–1996
SCANIA	113 M/400	3 - series	DTC11.02	401	1992–1996
SCANIA	113 M/400	3 - series	DTC11.01	401	1993–1996
SCANIA	114 G/340	4 - series	DC11.03	340	1998–2008
SCANIA	114 G/340	4 - series	DC11.01	340	1998–2008
SCANIA	124 L/440	4 - series	DT12.08	440	2001–2008
SCANIA	124 L/470	4 - series	DT12.02	470	2001–2008
SCANIA	124 L/470	4 - series	DT12.06	470	2001–2008
SCANIA	142 E/430	2 - series	DSC14.01	409	1981–1985
SCANIA	142 E/430	2 - series	DSC14.02	420	1985–1988
SCANIA	143 E/400	3 - series	DSC14.06	404	1988–1996
SCANIA	143 E/420	3 - series	DSC14.08	420	1991–1996
SCANIA	143 E/420	3 - series	DSC14.08	420	1988–1996
SCANIA	143 E/450	3 - series	DSC14.10	450-453	1988–1996
SCANIA	143 E/450	3 - series	DSC14.03	450-453	1988–1996
SCANIA	143 E/450	3 - series	DSC14.03	450	1988–1996
SCANIA	143 E/450	3 - series	DSC14.10	453	1988–1996
SCANIA	143 E/470	3 - series	DSC14.04	470	1988–1996
SCANIA	143 E/500	3 - series	DSC14.09	500	1988–1996
SCANIA	143 E/500	3 - series	DSC14.09	500	1991–1996
SCANIA	143 E/500	3 - series	DSC14.16	500	1991–1996
SCANIA	143 E/500	3 - series	DSC14.16	500	1988–1996
SCANIA	143 H/400	3 - series	DSC14.06	404	1988–1989
SCANIA	143 H/400	3 - series	DSC14.06	404	1988–1996
SCANIA	143 H/400	3 - series	DSC14.06	404	1990–1991
SCANIA	143 H/420	3 - series	DSC14.08	420	1991–1993
SCANIA	143 H/420	3 - series	DSC14.08	420	1991–1996
SCANIA	143 H/450	3 - series	DSC14.10	450-453	1990–1996
SCANIA	143 H/450	3 - series	DSC14.03	450-453	1990–1996
SCANIA	143 H/450	3 - series	DSC14.03	450	1988–1989
SCANIA	143 H/450	3 - series	DSC14.10	450-453	1988–1996
SCANIA	143 H/450	3 - series	DSC14.10	453	1988–1996
SCANIA	143 H/450	3 - series	DSC14.03	450-453	1988–1996
SCANIA	143 H/450	3 - series	DSC14.03	450	1988–1996
SCANIA	143 H/470	3 - series	DSC14.04	471	1990–1991
SCANIA	143 H/470	3 - series	DSC14.04	471	1988–1989
SCANIA	143 H/470	3 - series	DSC14.04	471	1988–1996
SCANIA	143 H/500	3 - series	DSC14.16	500	1991–1996
SCANIA	143 H/500	3 - series	DSC14.09	500	1991–1996
SCANIA	143 H/500	3 - series	DSC14.16	500	1988–1996
SCANIA	143 H/500	3 - series	DSC14.09	500	1988–1996
SCANIA	143 M/420	3 - series	DSC14.08	420	1991–1996
SCANIA	143 M/420	3 - series	DSC14.08	420	1988–1996
SCANIA	143 M/450	3 - series	DSC14.03	450-453	1990–1996
SCANIA	143 M/450	3 - series	DSC14.10	450-453	1990–1996
SCANIA	143 M/450	3 - series	DSC14.03	450	1988–1989
SCANIA	143 M/450	3 - series	DSC14.03	450	1988–1996
SCANIA	143 M/450	3 - series	DSC14.10	453	1988–1996
SCANIA	143 M/470	3 - series	DSC14.04	471	1988–1989
SCANIA	143 M/470	3 - series	DSC14.04	470	1988–1996
SCANIA	143 M/470	3 - series	DSC14.04	471	1990–1991
SCANIA	143 M/470	3 - series	DSC14.04	471	1988–1996
SCANIA	143 M/500	3 - series	DSC14.16	500	1991–1996
SCANIA	143 M/500	3 - series	DSC14.16	500	1988–1996
SCANIA	143 M/500	3 - series	DSC14.09	500	1991–1996
SCANIA	143 M/500	3 - series	DSC14.09	500	1988–1996
SCANIA	T 114 C/340	4 - series	DC11.03	340	1998–2008
SCANIA	T 114 C/340	4 - series	DC11.01	340	1998–2008
SCANIA	T 114 C/380	4 - series	DC11.02	380	1998–2008
SCANIA	T 114 C/380	4 - series	DC11.04	380	1998–2008
SCANIA	T 114 G/340	4 - series	DC11.03	340	1998–2008
SCANIA	T 114 G/340	4 - series	DC11.01	340	1998–2008
SCANIA	T 114 G/380	4 - series	DC11.02	380	1998–2008
SCANIA	T 114 L/340	4 - series	DC11.03	340	1998–2008
SCANIA	T 114 L/340	4 - series	DC11.01	340	1998–2008
SCANIA	T 114 L/380	4 - series	DC11.02	380	1998–2008
SCANIA	T 124 C/360	4 - series	DSC12..02	360	1995–2008
SCANIA	T 124 C/400	4 - series	DSC12.01	400	1996–2008
SCANIA	T 124 C/420	4 - series	DSC12.05	420	1996–2008
SCANIA	T 124 C/420	4 - series	DC12.01	420	1996–2008
SCANIA	T 124 C/420	4 - series	DSC12.05	420	1997–2008
SCANIA	T 124 C/420	4 - series	DC12.03	420	1996–2008
SCANIA	T 124 C/420	4 - series	DC12.01	420	1997–2008
SCANIA	T 124 G/400	4 - series	DSC12.01	400	1997–2008
SCANIA	T 124 G/400	4 - series	DSC12..02	400	1997–2008
SCANIA	T 124 G/420	4 - series	DSC12.05	420	1997–2008
SCANIA	T 124 G/420	4 - series	DC12.01	420	1996–2008
SCANIA	T 124 G/420	4 - series	DC12.01	420	1997–2008
SCANIA	T 124 G/420	4 - series	DSC12.05	420	1996–2008
SCANIA	T 124 L/360	4 - series	DSC12..02	360	1997–2008
SCANIA	T 124 L/360	4 - series	DSC12..02	360	1995–2008
SCANIA	T 124 L/400	4 - series	DSC12.01	400	1996–2008
SCANIA	T 124 L/400	4 - series	DSC12.01	400	1997–2008
SCANIA	T 124 L/420	4 - series	DSC12.05	420	1996–2008
SCANIA	T 124 L/420	4 - series	DSC12.05	420	1997–2008
SCANIA	T 124 L/420	4 - series	DC12.01	420	1996–2008
SCANIA	T 124 L/420	4 - series	DC12.01	420	1997–2008
SCANIA	T 124 L/470	4 - series	DT12.02	470	2001–2008
SCANIA	T 142 E/390	2 - series	DS14.06	388-396	1980–1988
SCANIA	T 143 E/420	3 - series	DSC14.08	420	1991–1996
SCANIA	T 143 E/450	3 - series	DSC14.10	450-453	1988–1996
SCANIA	T 143 E/450	3 - series	DSC14.03	450-453	1988–1996
SCANIA	T 143 E/500	3 - series	DSC14.16	500	1991–1996
SCANIA	T 143 E/500	3 - series	DSC14.09	500	1991–1996
SCANIA	T 143 H/420	3 - series	DSC14.08	420	1991–1996
SCANIA	T 143 H/450	3 - series	DSC14.03	450-453	1990–1996
SCANIA	T 143 H/450	3 - series	DSC14.10	450-453	1990–1996
SCANIA	T 143 H/500	3 - series	DSC14.16	500	1991–1996
SCANIA	T 143 H/500	3 - series	DSC14.09	500	1991–1996
