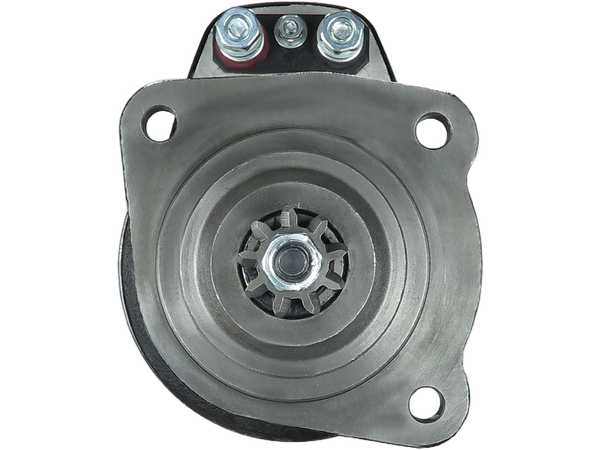

S9379S
Startmotorer
STANDARD LINE
2167 kr
Köp nu
| EAN | 5902129112341 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer |
AS-PL: UD16951S CASCO: CST10193AS DELCO: 19024564 ELECTROLOG: STR10405 ERA: 220312, 22202 FIAT: 8961949 GHIBAUDI: SG0460 KHD: 1304445 KUHNER: 10956L, 254022, 254022D, 254022K, 254022L, 254022M LUCAS: 26024101A, 26024101ASEL MAN: 51262017008, 51262019008 PSH: 500.100.093.100, 500.100.093.320, S132.674, S144.181 RENAULT: 0025841025 UNIC-SIMCA: 008961949 VOLVO: 240500 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 385.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 32 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BOMAG | BW 10 A | KHD-F4L912 | 0 | 1973– | ||
| BOMAG | BW 15 A | KHD-F6L912 | 0 | 1973– | ||
| BOMAG | BW 200 | KHD-F4L912 | 0 | 1973–1986 | ||
| BOMAG | BW 4 A | KHD-F3L912 | 0 | 1973–1984 | ||
| BOMAG | BW 6 A | KHD-F3L912 | 0 | 1973– | ||
| MAN | D 0020 | 0 | 1965–1973 | |||
| VOLVO | B 705 | D47B | 0 | 1962–1964 | ||
| VOLVO | F 84 | D50B | 0 | 1972–1974 | ||
| VOLVO | F 84T | TD50B | 0 | 1972–1978 | ||
| VOLVO | F 85 | D50B | 0 | 1972–1974 | ||
| VOLVO | F 85T | TD50B | 0 | 1972–1978 | ||
| VOLVO | F 86 | D70B | 0 | 1970–1974 | ||
| VOLVO | F 86T | TD70B | 0 | 1970–1974 | ||
| VOLVO | FB 84 | D50B | 0 | 1972–1974 | ||
| VOLVO | FB 84T | TD50B | 0 | 1972–1978 | ||
| VOLVO | FB 85T | TD50B | 0 | 1972–1978 | ||
| VOLVO | FB 86 | D70B | 0 | 1970–1974 | ||
| VOLVO | FB 86T | TD70B | 0 | 1970–1974 | ||
| VOLVO | L 375 | D47A | 0 | 1959–1961 | ||
| VOLVO | L 465 | D47B | 0 | 1961–1965 | ||
| VOLVO | L 475 | D47B | 0 | 1961–1965 | ||
| VOLVO | L 4751 | D47B | 0 | 1964–1965 | ||
| VOLVO | N 7 | TD70B | 0 | 1973–1978 | ||
| VOLVO | N 84 | D50B | 0 | 1972–1973 | ||
| VOLVO | N 86T | TD70B | 0 | 1970–1973 | ||
| VOLVO | NB 84 | D50B | 0 | 1972–1973 | ||
| VOLVO | NB 86 | D70B | 0 | 1970–1973 | ||
| VOLVO | NB 86T | TD70B | 0 | 1970–1973 | ||
| VOLVO BM | S950 | D50A | 0 | 1966–1970 | ||
| VOLVO BM | T800 | T | D50A | 94 | 1967–1975 | |
| VOLVO BM | T810 | T | TD50A | 113 | 1969–1975 | |
| VOLVO BM | T814 | T | TD50A | 113 | 1969–1979 |
