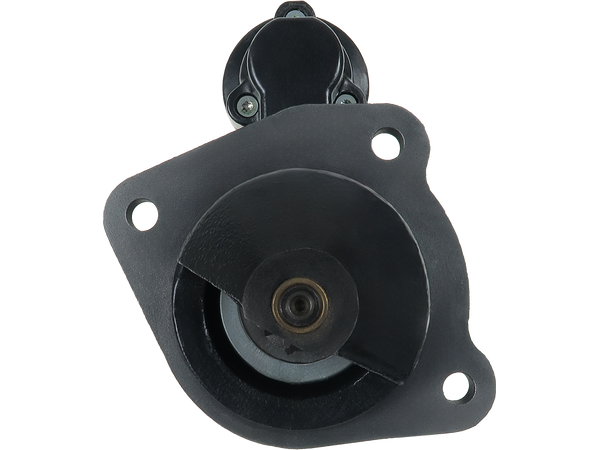

S01050S
Startmotorer
STANDARD LINE
1300 kr
Köp nu
| EAN | 5902129241065 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001368047 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 21.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 340.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 317 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| VOLVO | Various Models | 0 | 1990– | |||
| VOLVO | B6R, B6LE | B6 | TD63E | 180 | 1991– | |
| VOLVO | B6R, B6LE | B6 | TD63ES | 210 | 1991– | |
| VOLVO | B6R, B6LE | B6 | D6A180 | 180 | 1991– | |
| VOLVO | B6R, B6LE | B6 | D6A210 | 210 | 1991– | |
| VOLVO | FL 180-10 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-10 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-11 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-11 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-12 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-12 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-13 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-13 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-14 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-14 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-15 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-15 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-16 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-16 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-17 | FL | D6B180 | 179 | 2000–2006 | |
| VOLVO | FL 180-17 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-17 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-18 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-18 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-18 | FL | D6B180 | 179 | 2000–2006 | |
| VOLVO | FL 180-19 | FL | D6B180 | 179 | 2000–2006 | |
| VOLVO | FL 180-21 | FL | D6B180 | 179 | 2000–2006 | |
| VOLVO | FL 180-26 | FL | D6B180 | 179 | 2000–2006 | |
| VOLVO | FL 180-8 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 180-8 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-9 | FL | D6B | 180 | 2000– | |
| VOLVO | FL 180-9 | FL | D6B180 | 180 | 2000– | |
| VOLVO | FL 220-10 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-10 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-11 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-11 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-12 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-12 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-13 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-13 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-14 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-14 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-15 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-15 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-16 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-16 | FL | D6B220 | 220 | 2000–2006 | |
| VOLVO | FL 220-16 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-17 | FL | D6B220 | 220 | 2000–2006 | |
| VOLVO | FL 220-17 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-17 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-18 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-18 | FL | D6B220 | 220 | 2000–2006 | |
| VOLVO | FL 220-18 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-19 | FL | D6B220 | 220 | 2000–2006 | |
| VOLVO | FL 220-21 | FL | D6B220 | 220 | 2000–2006 | |
| VOLVO | FL 220-26 | FL | D6B220 | 220 | 2000–2006 | |
| VOLVO | FL 220-8 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 220-8 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-9 | FL | D6B220 | 220 | 2000– | |
| VOLVO | FL 220-9 | FL | D6B | 220 | 2000– | |
| VOLVO | FL 250-10 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 250-10 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-11 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 250-11 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-12 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 250-12 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-13 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-13 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 250-14 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 250-14 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-15 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-15 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 250-16 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 250-16 | FL | D6B250 | 252 | 2000–2006 | |
| VOLVO | FL 250-16 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-17 | FL | D6B250 | 252 | 2000–2006 | |
| VOLVO | FL 250-17 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 250-17 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-18 | FL | D6B250 | 252 | 2000–2006 | |
| VOLVO | FL 250-18 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-18 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 250-19 | FL | D6B250 | 252 | 2000–2006 | |
| VOLVO | FL 250-21 | FL | D6B250 | 252 | 2000–2006 | |
| VOLVO | FL 250-26 | FL | D6B250 | 252 | 2000–2006 | |
| VOLVO | FL 250-8 | FL | D6B | 250 | 2000– | |
| VOLVO | FL 250-8 | FL | D6B250 | 250 | 2000– | |
| VOLVO | FL 608 | FL6 | TD61GB | 179 | 1985–2000 | |
| VOLVO | FL 608 | FL6 | D6A250 | 250 | 1995–2000 | |
| VOLVO | FL 608 | FL6 | TD61F | 200 | 1985–1994 | |
| VOLVO | FL 608 | FL6 | TD63ES | 209 | 1993–2000 | |
| VOLVO | FL 608 | FL6 | TD63E | 179 | 1985–2000 | |
| VOLVO | FL 608 | FL6 | D6A180 | 179 | 1985–2000 | |
| VOLVO | FL 608 | FL6 | TD61GA | 147-152 | 1985–1999 | |
| VOLVO | FL 608 | FL6 | D6A230 | 230 | 1995–2000 | |
| VOLVO | FL 608 | FL6 | D6A210 | 209 | 1993–2000 | |
| VOLVO | FL 608 | FL6 | D6B180 | 179 | 1985–2000 | |
| VOLVO | FL 608 | FL6 | TD61GS | 179 | 1985–2000 | |
| VOLVO | FL 608 | FL6 | TD61GC | 179 | 1985–2000 | |
| VOLVO | FL 608 | FL6 | TD61G | 147-152 | 1985–1999 | |
| VOLVO | FL 608 | FL6 | D6B220 | 220 | 1995–2000 | |
| VOLVO | FL 608 | FL6 | D6B250 | 250 | 1995–2000 | |
| VOLVO | FL 608 CNG | FL6 | G6A195 | 194 | 1995–2000 | |
| VOLVO | FL 608 CNG | FL6 | G6B205 | 204 | 1995–2000 | |
| VOLVO | FL 609 | FL6 | TD61GC | 179 | 1985–2000 | |
| VOLVO | FL 609 | FL6 | D6B250 | 250 | 1995–2000 | |
| VOLVO | FL 609 | FL6 | TD61G | 150 | 1985–1994 | |
| VOLVO | FL 609 | FL6 | D6A230 | 230 | 1995–2000 | |
| VOLVO | FL 609 | FL6 | D6B220 | 220 | 1995–2000 | |
| VOLVO | FL 609 | FL6 | TD61GA | 150 | 1985–1994 | |
| VOLVO | FL 609 | FL6 | TD63ES | 209 | 1993–2000 | |
| VOLVO | FL 609 | FL6 | D6A210 | 209 | 1993–2000 | |
| VOLVO | FL 609 | FL6 | TD61GB | 179 | 1985–2000 | |
| VOLVO | FL 609 | FL6 | TD61GS | 179 | 1985–2000 | |
| VOLVO | FL 609 | FL6 | TD63E | 179 | 1985–2000 | |
| VOLVO | FL 609 | FL6 | D6A180 | 179 | 1985–2000 | |
| VOLVO | FL 609 | FL6 | D6A250 | 250 | 1995–2000 | |
| VOLVO | FL 609 | FL6 | TD61F | 200 | 1985–1994 | |
| VOLVO | FL 609 | FL6 | D6B180 | 179 | 1985–2000 | |
| VOLVO | FL 609 CNG | FL6 | G6B205 | 204 | 1995–2000 | |
| VOLVO | FL 609 CNG | FL6 | G6A195 | 194 | 1995–2000 | |
| VOLVO | FL 610 | FL6 | D6B180 | 179 | 1985–2000 | |
| VOLVO | FL 610 | FL6 | TD61GS | 179 | 1985–2000 | |
| VOLVO | FL 610 | FL6 | TD61G | 150 | 1985–1994 | |
| VOLVO | FL 610 | FL6 | D6A230 | 230 | 1995–2000 | |
| VOLVO | FL 610 | FL6 | D6B250 | 250 | 1995–2000 | |
| VOLVO | FL 610 | FL6 | D6A210 | 209 | 1993–2000 | |
| VOLVO | FL 610 | FL6 | TD63E | 179 | 1985–2000 | |
| VOLVO | FL 610 | FL6 | D6A180 | 179 | 1985–2000 | |
| VOLVO | FL 610 | FL6 | D6B220 | 220 | 1995–2000 | |
| VOLVO | FL 610 | FL6 | TD61GC | 179 | 1985–2000 | |
| VOLVO | FL 610 | FL6 | TD61F | 200 | 1985–1994 | |
| VOLVO | FL 610 | FL6 | TD63ES | 209 | 1993–2000 | |
| VOLVO | FL 610 | FL6 | TD61GB | 179 | 1985–2000 | |
| VOLVO | FL 610 | FL6 | TD61GA | 150 | 1985–1994 | |
| VOLVO | FL 610 | FL6 | D6A250 | 250 | 1995–2000 | |
| VOLVO | FL 610 | FL6 | TD61G | 152 | 1985–1994 | |
| VOLVO | FL 610 CNG | FL6 | G6B205 | 204 | 1995–2000 | |
| VOLVO | FL 610 CNG | FL6 | G6A195 | 194 | 1995–2000 | |
| VOLVO | FL 611 | FL6 | D6A250 | 250 | 1995–2000 | |
| VOLVO | FL 611 | FL6 | TD61GA | 150 | 1985–1994 | |
| VOLVO | FL 611 | FL6 | TD63ES | 209 | 1993–2000 | |
| VOLVO | FL 611 | FL6 | TD61G | 150 | 1985–1994 | |
| VOLVO | FL 611 | FL6 | TD61GC | 171-180 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | TD61GB | 179 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | TD61F | 200 | 1985–1994 | |
| VOLVO | FL 611 | FL6 | D6B220 | 220 | 1995–2000 | |
| VOLVO | FL 611 | FL6 | TD61GC | 179 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | TD61GS | 179 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | D6A230 | 230 | 1995–2000 | |
| VOLVO | FL 611 | FL6 | TD63E | 171-180 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | D6A210 | 209 | 1993–2000 | |
| VOLVO | FL 611 | FL6 | TD61GA | 147-154 | 1985–1994 | |
| VOLVO | FL 611 | FL6 | TD63E | 179 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | D6A180 | 179 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | D6B180 | 179 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | D6B250 | 250 | 1995–2000 | |
| VOLVO | FL 611 | FL6 | TD61GB | 171-180 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | TD61GS | 171-180 | 1985–2000 | |
| VOLVO | FL 611 | FL6 | TD61G | 147-154 | 1985–1994 | |
| VOLVO | FL 611 | FL6 | D6A180 | 171-180 | 1985–2000 | |
| VOLVO | FL 611 CNG | FL6 | G6B205 | 204 | 1995–2000 | |
| VOLVO | FL 611 CNG | FL6 | G6A195 | 194 | 1995–2000 | |
| VOLVO | FL 612 | FL6 | TD61GA | 150 | 1985–1994 | |
| VOLVO | FL 612 | FL6 | D6A210 | 209 | 1991–1999 | |
| VOLVO | FL 612 | FL6 | D6A250 | 250 | 1995–2000 | |
| VOLVO | FL 612 | FL6 | TD61F | 200 | 1985–1994 | |
| VOLVO | FL 612 | FL6 | TD61GC | 179 | 1985–2000 | |
| VOLVO | FL 612 | FL6 | D6A180 | 179 | 1985–2000 | |
| VOLVO | FL 612 | FL6 | D6B220 | 220 | 1995–2000 | |
| VOLVO | FL 612 | FL6 | D6A230 | 230 | 1995–2000 | |
| VOLVO | FL 612 | FL6 | TD61GB | 179 | 1985–2000 | |
| VOLVO | FL 612 | FL6 | TD61G | 150 | 1985–1994 | |
| VOLVO | FL 612 | FL6 | TD63ES | 209 | 1991–1999 | |
| VOLVO | FL 612 | FL6 | D6B250 | 250 | 1995–2000 | |
| VOLVO | FL 612 | FL6 | TD61GS | 179 | 1985–2000 | |
| VOLVO | FL 612 | FL6 | D6B180 | 179 | 1985–2000 | |
| VOLVO | FL 612 CNG | FL6 | G6B205 | 204 | 1995–2000 | |
| VOLVO | FL 612 CNG | FL6 | G6A195 | 194 | 1995–2000 | |
| VOLVO | FL 613 | FL6 | D6A250 | 250 | 1995–2000 | |
| VOLVO | FL 613 | FL6 | D6B250 | 250 | 1995–2000 | |
| VOLVO | FL 613 | FL6 | TD61GA | 150 | 1985–1994 | |
| VOLVO | FL 613 | FL6 | D6A230 | 230 | 1995–2000 | |
| VOLVO | FL 613 | FL6 | TD63ES | 209 | 1993–2000 | |
| VOLVO | FL 613 | FL6 | TD61GS | 179 | 1985–2000 | |
| VOLVO | FL 613 | FL6 | TD61F | 200 | 1985–1994 | |
| VOLVO | FL 613 | FL6 | TD63E | 179 | 1985–2000 | |
| VOLVO | FL 613 | FL6 | D6A180 | 179 | 1985–2000 | |
| VOLVO | FL 613 | FL6 | TD61G | 150 | 1985–1994 | |
| VOLVO | FL 613 | FL6 | D6A210 | 209 | 1993–2000 | |
| VOLVO | FL 613 | FL6 | D6B180 | 179 | 1985–2000 | |
| VOLVO | FL 613 | FL6 | TD61GB | 179 | 1985–2000 | |
| VOLVO | FL 613 | FL6 | D6B220 | 220 | 1995–2000 | |
| VOLVO | FL 613 | FL6 | TD61GC | 179 | 1985–2000 | |
| VOLVO | FL 613 CNG | FL6 | G6A195 | 194 | 1995–2000 | |
| VOLVO | FL 613 CNG | FL6 | G6B205 | 204 | 1995–2000 | |
| VOLVO | FL 614 | FL6 | D6A250 | 250 | 1995–2000 | |
| VOLVO | FL 614 | FL6 | TD61GC | 179 | 1985–2000 | |
| VOLVO | FL 614 | FL6 | D6B220 | 220 | 1995–2000 | |
| VOLVO | FL 614 | FL6 | D6A210 | 204-209 | 1985–2000 | |
| VOLVO | FL 614 | FL6 | D6A180 | 179 | 1985–2000 |
Visar 200 av 317 fordon
