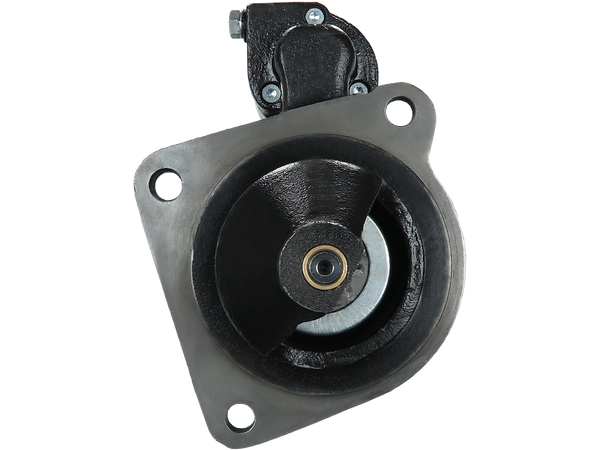

S0116
Startmotorer
STANDARD LINE
1301 kr
Köp nu
| EAN | 5901259419955 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001367028 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 110.00 |
| B-storlek [ mm ] | 27.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9. 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 341.00 |
| O.1 [ mm ] | 146.00 |
| O.2 [ mm ] | 104.00 |
| O.3 [ mm ] | 104.00 |
| C.1 [ mm ] | 12.00 |
| C.2 [ mm ] | 12.00 |
| C.3 [ mm ] | 12.00 |
Passar i 174 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AGRIFULL | 703.6 | 8045.06.206 | 0 | 1984– | ||
| AGRIFULL | 70DT Frutteto3.6 | 8045.06.208 | 0 | 1985– | ||
| AGRIFULL | 80.763.7 | 8045.04.276 | 0 | 1984–1984 | ||
| AGRIFULL | 80C3.9 | 8045.05.207 | 0 | 1990– | ||
| AGRIFULL | 80DTF3.9 | 8045.05.309 | 0 | 1990– | ||
| AGRIFULL | 80F3.9 | 8045.05.209 | 0 | 1990– | ||
| AGRIFULL | A70LM3.6 | 8045.06.206 | 0 | 1990– | ||
| AGRIFULL | 3.5 | 670 | 8045.02.378 | 0 | 1980–1984 | |
| AGRIFULL | 3.5 | 80 66 | 8045.02.276 | 0 | 1984–1984 | |
| AGRIFULL | 3.5 | 80 70C | 8045.02.211 | 0 | 1980–1983 | |
| AGRIFULL | 3.5 | 80 70F | 8045.02.278 | 0 | 1980–1984 | |
| AGRIFULL | 3.6 | 65 | 8045.06.320 | 0 | 1985–1989 | |
| AGRIFULL | 3.6 | 65 DT | 8045.06.220 | 0 | 1985– | |
| AGRIFULL | 3.6 | 65 LM | 8045.06.321 | 0 | 1990– | |
| AGRIFULL | 3.6 | 70 | 8045.06.307 | 0 | 1990– | |
| AGRIFULL | 3.6 | 70 .86F | 8045.06.208 | 0 | 1992– | |
| AGRIFULL | 3.6 | 70 C | 8045.06.306 | 0 | 1985–1989 | |
| AGRIFULL | 3.6 | 70 C | 8045.06.307 | 0 | 1990– | |
| AGRIFULL | 3.6 | 70 C-L | 8045.06.206 | 0 | 1985– | |
| AGRIFULL | 3.6 | 70 Frutteto | 8045.06.308 | 0 | 1985–1989 | |
| AGRIFULL | 3.6 | 70 Frutteto | 8045.06.309 | 0 | 1990– | |
| AGRIFULL | 3.9 | 80 | 8045.05.207 | 0 | 1990– | |
| AGRIFULL | 3.9 | 80 | 8045.05.206 | 0 | 1984–1989 | |
| AGRIFULL | 3.9 | 80 C | 8045.05.206 | 0 | 1985–1989 | |
| AGRIFULL | 3.9 | 80 DTF | 8045.05.308 | 0 | 1986–1989 | |
| AGRIFULL | 3.9 | 80 F | 8045.05.208 | 0 | 1986–1989 | |
| AGRIFULL | 3.9 | 82.86 F | 8045.05.208 | 0 | 1992– | |
| AIFO | Engine | 8061.04.060 | 0 | 1978–1983 | ||
| AIFO | Engine | 8060.02.800 | 0 | 1973–1981 | ||
| AIFO | Engine | 8065.02.000 | 0 | 1973–1980 | ||
| AIFO | Engine | 8061.04.000 | 0 | 1979–1983 | ||
| AIFO | Engine | 8031.04.300 | 0 | 1979–1983 | ||
| AIFO | Engine | 8061.04.051 | 0 | 1981–1983 | ||
| AIFO | Engine | 8041.04.300 | 0 | 1979–1983 | ||
| AIFO | Engine | 8061.04.061 | 0 | 1981–1983 | ||
| AIFO | Engine | 8060.02.811 | 0 | 1973–1980 | ||
| AIFO | Engine | 8061.04.050 | 0 | 1979–1983 | ||
| AIFO | Engine | 8041.04.200 | 0 | 1980–1980 | ||
| BENFRA | 2.8 | 215 I | 8031I002 | 0 | 1979–1985 | |
| BENFRA | 3.9 | 1.45 | 8041SI25 | 0 | 1989– | |
| BENFRA | 3.9 | 4.11 | 8041SI25 | 0 | 1989– | |
| BENFRA | 3.9 | 7.07 | 8041SI25 | 0 | 1989–1991 | |
| BENFRA | 5.9 | 9.09 CH | 8061SI25 | 0 | 1985–1991 | |
| BENFRA | 5.9 | 9.10 CH | 8061SI25 | 0 | 1985–1991 | |
| CASE IH | JX 80, JX 90 | JX-SERIES | 80-90 | 2007–2008 | ||
| CASE IH | JX 95 | JX-SERIES | 94 | 2007–2008 | ||
| FIAT | 580 | 500 Serie | 8035.04.270 | 58 | 1978–1984 | |
| FIAT | 600 | 600 Serie | 8045.02 | 60 | 1971–1972 | |
| FIAT | 65-88 | 88 | 8045.06.326 | 65 | 1989–1993 | |
| FIAT | 65-88 | 88 | 8045.06.319 | 65 | 1989–1993 | |
| FIAT | 65-88 | 88 | 8045.06.213 | 65 | 1989–1993 | |
| FIAT | 65-88 | 88 | 8045.06.225 | 65 | 1989–1993 | |
| FIAT | 65-90 | 90 | 8045.06.213 | 65 | 1987–1992 | |
| FIAT | 666 | 600 Serie | 8045.02 | 68 | 1982–1986 | |
| FIAT | 680 | 600 Serie | 8045.02 | 68 | 1978–1984 | |
| FIAT | 70-88 | 88 | 8045.06.208 | 69-71 | 1989–1993 | |
| FIAT | 70-88 | 88 | 8045.06.200 | 69-71 | 1989–1993 | |
| FIAT | 70-90 | 90 | 8045.06.208 | 70 | 1984–1992 | |
| FIAT | 70-90 | 90 | 8045.06.200 | 70 | 1984–1992 | |
| FIAT | 72-94 | 94 | 8045.06.200 | 69-71 | 1993–1996 | |
| FIAT | 80-88 | 88 | 8045.05.000 | 80 | 1989–1993 | |
| FIAT | 85-90 | 90 | 8045.25.310 | 84-86 | 1987–1992 | |
| FIAT | 85-90 | 90 | 8045.25.210 | 84-86 | 1987–1992 | |
| FIAT | 88-94 | 88 | 8045.25.210 | 84-86 | 1993–1996 | |
| FIAT | 880/5 | 800 | 8055.04.200 | 88 | 1980–1984 | |
| FIAT | L65 | L | 8045.06.319 | 65 | 1996–1998 | |
| FIAT | L65 | L | 8045.06.225 | 65 | 1996–1998 | |
| FIAT | L65 | L | 8045.06.326 | 65 | 1996–1998 | |
| FIAT | L65 | L | 8045.06.213 | 65 | 1996–1998 | |
| FIAT | TL80 | TL | 8045.05.000 | 80 | 1998–2004 | |
| IVECO | Engine | 8041I05.50 | 0 | 1990– | ||
| IVECO | Engine | 8031I05.00 | 0 | 1990– | ||
| IVECO | Engine | 806125.010 | 0 | 1985– | ||
| IVECO | Engine | 806105.260 | 0 | 1986–1988 | ||
| IVECO | Engine | 805104.100 | 0 | 1984–1984 | ||
| IVECO | Engine | 804105.260 | 0 | 1986–1988 | ||
| IVECO | Engine | 8061SI35.05 | 0 | 1991– | ||
| IVECO | Engine | 806105.300I25 | 0 | 1986–1989 | ||
| IVECO | Engine | 806104.060 | 0 | 1983–1984 | ||
| IVECO | Engine | 8051I05.00 | 0 | 1990– | ||
| IVECO | Engine | 8041I05.00 | 0 | 1990– | ||
| IVECO | Engine | 803105.300 | 0 | 1985–1989 | ||
| IVECO | Engine | 8061 | 0 | 1990– | ||
| IVECO | Engine | 806125.000 | 0 | 1986– | ||
| IVECO | Engine | 806105.000 | 0 | 1985–1989 | ||
| IVECO | Engine | 8041SI25.00 | 0 | 1990– | ||
| IVECO | Engine | 804104.300 | 0 | 1983–1984 | ||
| IVECO | Engine | 8061I05.00 | 0 | 1990– | ||
| IVECO | Engine | 806105.260 | 0 | 1990– | ||
| IVECO | Engine | 806104.001 | 0 | 1984–1984 | ||
| IVECO | Engine | 805105.200 | 0 | 1985–1989 | ||
| IVECO | Engine | 804105.300 | 0 | 1985–1989 | ||
| IVECO | Engine | 803104.300 | 0 | 1983–1984 | ||
| IVECO | Engine | 8061SRI25.00 | 0 | 1989– | ||
| IVECO | Engine | 806124.000 | 0 | 1984–1985 | ||
| IVECO | Engine | 806104.061 | 0 | 1983–1983 | ||
| IVECO | Engine | 806104.000 | 0 | 1983–1984 | ||
| IVECO | 109-14 | ZETA | 8060.04.689 | 135 | 1983–1985 | |
| IVECO | 109-14 | ZETA | 8060.05.289 | 137-139 | 1985–1991 | |
| IVECO | 109-14 H | ZETA | 8060.04.689 | 135 | 1983–1985 | |
| IVECO | 109-14 H | ZETA | 8060.05.289 | 137-139 | 1985–1991 | |
| IVECO | 2.9 | DI 20C | 8035.05.359 | 0 | 1986–1990 | |
| IVECO | 3.9 | 8041 | 8041.05.. | 0 | 1986–1988 | |
| IVECO | 4.9 | 8051 | 8051.05.. | 0 | 1984–2000 | |
| IVECO | 5.5 | 8061 | 8061.04.. | 0 | 1983–1986 | |
| IVECO | 5.9 | 8061 | 8061.. | 0 | 1986–2000 | |
| IVECO | 75 E 14, 75 E 14 P | EUROCARGO I-III | 8040.45.4000 | 136 | 1991–2015 | |
| IVECO | 75 E 14, 75 E 14 P | EUROCARGO I-III | 8040.45.4180 | 136 | 1991–2015 | |
| IVECO | 79-13 | ZETA | 8060.04.660 | 131 | 1979–1983 | |
| IVECO | 79-13 | ZETA | 8060.04.060 | 131 | 1979–1983 | |
| IVECO | 79-14 | ZETA | 8060.04.660 | 135 | 1983–1985 | |
| IVECO | 79-14 | ZETA | 8060.05.280 | 137 | 1985–1991 | |
| IVECO | 79-14 H | ZETA | 8060.04.660 | 135 | 1983–1985 | |
| IVECO | 79-14 H | ZETA | 8060.05.280 | 137 | 1985–1991 | |
| IVECO | 79-14 V | ZETA | 8060.04.660 | 135 | 1983–1985 | |
| IVECO | 79-14 V | ZETA | 8060.05.280 | 137 | 1985–1991 | |
| IVECO | 95-14 | ZETA | 8060.04.669 | 135 | 1983–1985 | |
| IVECO | 95-14 H | ZETA | 8060.04.669 | 135 | 1983–1985 | |
| LAVERDA | 4.6 | 3300 | 8051.04.100 | 0 | 1983–1986 | |
| LAVERDA | 4.9 | 3300 AL | 8051I005 | 0 | 1983– | |
| LAVERDA | 5.2 | 3350 | 8065I | 0 | 1983–1986 | |
| LAVERDA | 5.2 | 3450 | 8065I | 0 | 1983–1984 | |
| LAVERDA | 5.5 | 3350 AL | 8061SI | 0 | 1983–1986 | |
| LAVERDA | 5.5 | 3500 | 8061I05 | 0 | 1985– | |
| LAVERDA | 5.5 | 3600 | 8061SI | 0 | 1983–1986 | |
| LAVERDA | 5.5 | 3750 | 8061SI25 | 0 | 1985– | |
| LAVERDA | 5.9 | 3400 | 8061I005 | 0 | 1986– | |
| LAVERDA | 5.9 | 3550 | 8061SI05 | 0 | 1985– | |
| LAVERDA | 5.9 | 3650 | 8061I05 | 0 | 1985– | |
| NEW HOLLAND | 3.6 | 65 56 | 8045.06.220 | 0 | 1990– | |
| NEW HOLLAND | 3.6 | 65 66 | 8045.06.220 | 0 | 1987– | |
| NEW HOLLAND | 3.6 | 65 88 | 8045.06.319 | 0 | 1989– | |
| NEW HOLLAND | 3.6 | 65 90 | 8045.06.225 | 0 | 1987– | |
| NEW HOLLAND | 3.6 | 70 56 | 8045.06.206 | 0 | 1990– | |
| NEW HOLLAND | 3.6 | 70 56 | 8045.06.307 | 0 | 1990– | |
| NEW HOLLAND | 3.6 | 70 66 | 8045.06.206 | 0 | 1984– | |
| NEW HOLLAND | 3.6 | 70 66F | 8045.06.208 | 0 | 1990– | |
| NEW HOLLAND | 3.6 | 70 75 | 8045.06.206 | 0 | 1990– | |
| NEW HOLLAND | 3.6 | 70 86F | 8045.06.208 | 0 | 1992– | |
| NEW HOLLAND | 3.6 | 70 88 | 8045.06.317 | 0 | 1989– | |
| NEW HOLLAND | 3.6 | 70 90 | 8045.06.200 | 0 | 1984– | |
| NEW HOLLAND | 3.6 | 7066 DT | 8045.06.307 | 0 | 1990– | |
| NEW HOLLAND | 3.6 | 7076 V | 8045.06.309 | 0 | 1990– | |
| NEW HOLLAND | 3.6 | 7076 V | 8045.06.208 | 0 | 1990– | |
| NEW HOLLAND | 3.9 | 80 88 | 8045.05.216 | 0 | 1989– | |
| NEW HOLLAND | 3.9 | 82 86F | 8045.05.208 | 0 | 1992– | |
| NEW HOLLAND | 5.100 | TD 5 | 98 | 2011– | ||
| NEW HOLLAND | 5.105 | TD 5 | 106 | 2011– | ||
| NEW HOLLAND | 5.115 | TD 5 | 113 | 2011– | ||
| NEW HOLLAND | 5.5 | 3500 | 8061I05 | 0 | 1985– | |
| NEW HOLLAND | 5.75 | TD 5 | 76 | 2011– | ||
| NEW HOLLAND | 5.9 | 3550 | 8061SI05 | 0 | 1985– | |
| NEW HOLLAND | 5.9 | 3750 | 8061SI25 | 0 | 1985– | |
| NEW HOLLAND | 5.9 | 517 H | 8061SI35 | 0 | 1939– | |
| NEW HOLLAND | 5.9 | 517 I | 8061SI35 | 0 | 1939– | |
| NEW HOLLAND | 5.9 | 517 M | 8061SI35 | 0 | 1939– | |
| NEW HOLLAND | 5.9 | L 517H | 8061SI35 | 0 | 1992– | |
| NEW HOLLAND | 5.90 | TD 5 | 88 | 2011– | ||
| NEW HOLLAND | 5.95 | TD 5 | 95 | 2011– | ||
| NEW HOLLAND | TL100 | TL | 101 | 1999–2003 | ||
| NEW HOLLAND | TL80 | TL | 82 | 1999–2003 | ||
| NEW HOLLAND | TL90 | TL | 91 | 1999–2003 | ||
| NEW HOLLAND | TN60DA | TN-A | 59 | 2004–2008 | ||
| NEW HOLLAND | TN60SA | TN-A | 59 | 2004–2008 | ||
| NEW HOLLAND | TN65F | TN | 8045.06 | 60 | 1999–2002 | |
| NEW HOLLAND | TN70DA, TN75DA | TN-A | 72-76 | 2004–2008 | ||
| NEW HOLLAND | TN75FA | TNF-A | 8045.05 | 73-76 | 2004– | |
| NEW HOLLAND | TN75FA | TNF-A | 8045.05 | 72-76 | 2004– | |
| NEW HOLLAND | TN85FA | TNF-A | 84 | 2004– | ||
| NEW HOLLAND | TN90F | TN | 90 | 1999–2001 | ||
| NEW HOLLAND | TN95FA | TNF-A | 92 | 2004– | ||
| VM | 1.8 | HR 329S HTR | 0 | 1986– | ||
| WHITE | 18295 | 0 | 1976–1980 | |||
| WHITE | 21947 | 4-211 | 0 | 1976–1984 |
